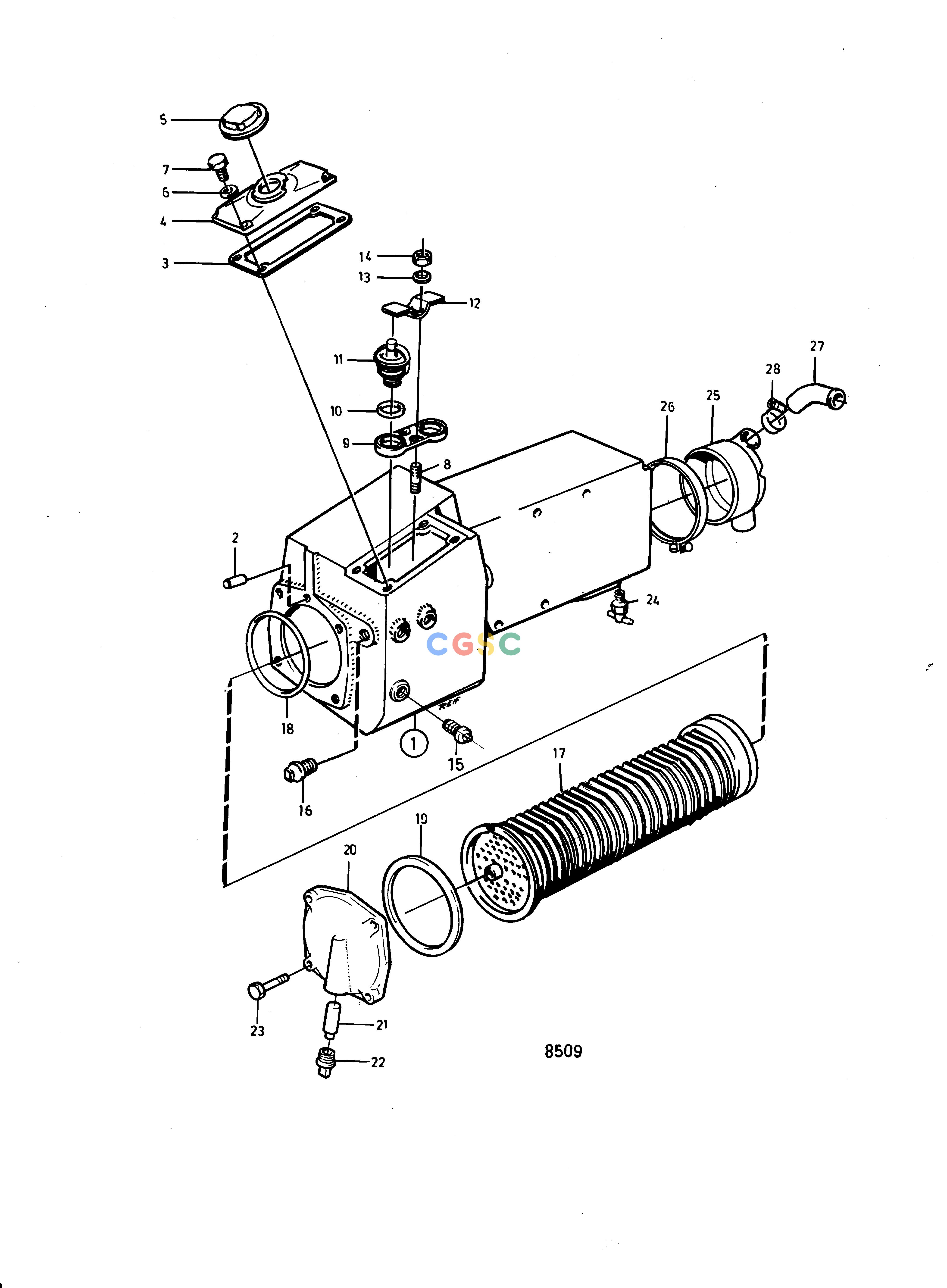

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BMiscellaneous EquipmentHeat Exchanger and Termostat with Installation CompsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
844936
|
[1] |
Heat exchanger housi
|
Replaced by housing 838429+zinc electrode 838929.
|
| 1. |
838429
|
[1] |
Heat exchanger housi
|
|
| 2. |
951940
|
[1] |
Spring pin
|
|
| 3. |
845291
|
[2] |
Gasket
|
|
| 4. |
845284
|
[1] |
Cap
|
|
| 5. |
845879
|
[1] |
Pressure cap
|
|
| 6. |
941907
|
[4] |
Spring washer
|
|
| 7. |
955295
|
[4] |
Hexagon screw
|
|
| 8. |
924060
|
[2] |
Stud
|
|
| 9. |
845285
|
[1] |
Retainer
|
|
| 10. |
416033
|
[2] |
Sealing ring
|
|
| 11. |
875788
|
[1] |
Thermostat kit
|
70°
|
| 11. |
875787
|
[1] |
Thermostat kit
|
76°
|
| 12. |
845852
|
[1] |
Shield
|
|
| 13. |
941670
|
[2] |
Washer
|
|
| 14. |
946330
|
[2] |
Hexagon nut
|
|
| 15. |
952077
|
[1] |
Plug
|
|
| 16. |
952077
|
[1] |
Plug
|
|
| 17. |
845198
|
[1] |
Insert
|
Repl by 838590
|
| 17. |
838590
|
[1] |
Heat exchanger eleme
|
Repl by 858833
|
| 17. |
858833
|
[1] |
Insert
|
|
| 18. |
925096
|
[1] |
O-ring
|
|
| 19. |
845301
|
[1] |
Gasket
|
|
| 20. |
846240
|
[1] |
End cover
|
|
| 21. |
838929
|
[1] |
Anode
|
(804107)
|
| 22. |
838928
|
[1] |
Plug
|
(800475)
|
| 23. |
940132
|
[4] |
Hexagon screw
|
|
| 24. |
947893
|
[1] |
Shut-off cock
|
|
| 25. |
845373
|
[1] |
End plate
|
|
| 26. |
961678
|
[2] |
Hose clamp
|
|
| 27. |
845374
|
[1] |
Tube
|
|
| 28. |
961669
|
[1] |
Hose clamp
|
|
