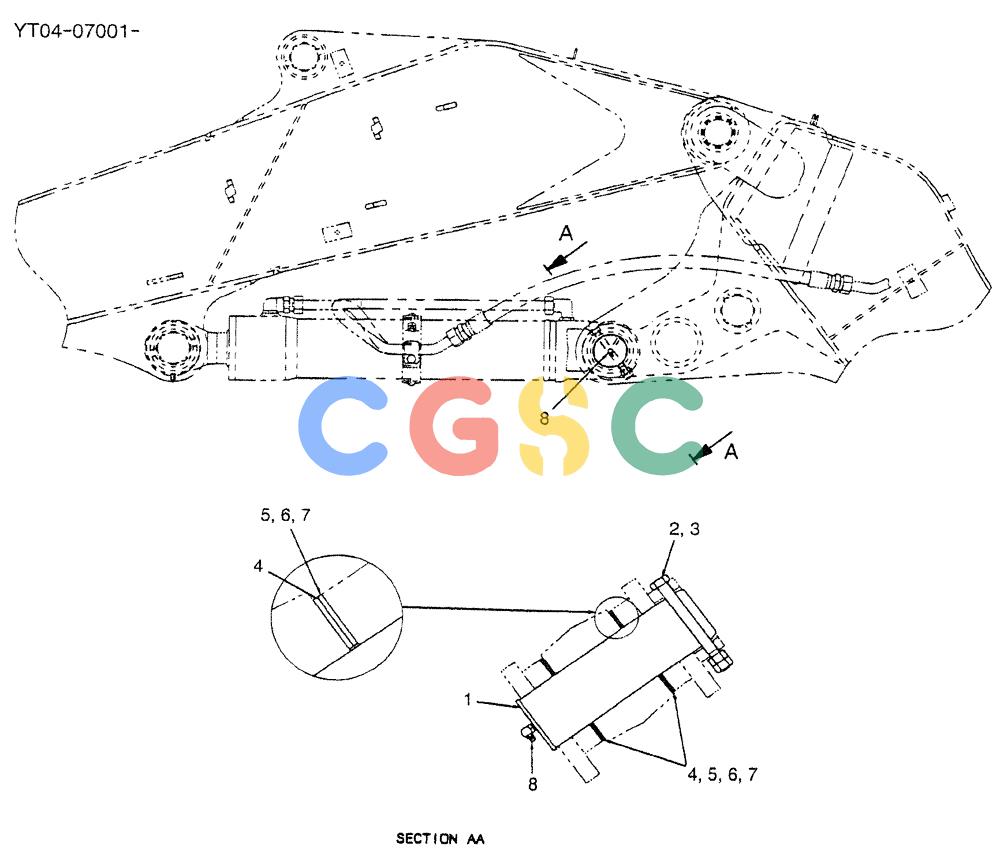

神钢零件查询(BOOM) - ATTACHMENT, (2 PIECE) - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/12) (02-010) - CYLINDER INSTAL, JIB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
686 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02B00016F1 | [1] | CYLINDER INSTAL | |
| 1. | YT02B01018P1 | [1] | PIN | KOBPIN |
| 2. | HS18C12125G2 | [1] | SCREW | KOBM12x1.75x125mm |
| 3. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 4. | YR02B01262P1 | [2] | SHIM,2.0mm Thk | KOB(2.0) |
| 5. | YT02B01008D1 | [2] | SHIM,0.5mm Thk | KOB(0.5) |
| 6. | B16T0442D93 | [2] | SHIM,120mm OD x 72mm ID x 0.9mm Thk | KOBID 72 x OD 120 x Th 0.9mm |
| 7. | YT02B01008D2 | [2] | SHIM,1.2mm Thk | KOB(1.2) |
| 8. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
