神钢零件查询(BOOM) - ATTACHMENT, (2 PIECE) - SK70SR-1E & SK70SR-1ES ASN YT04-07001 (1/04-12/12) (02-014) - HYD LINES, CYLINDER ARM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
890 次

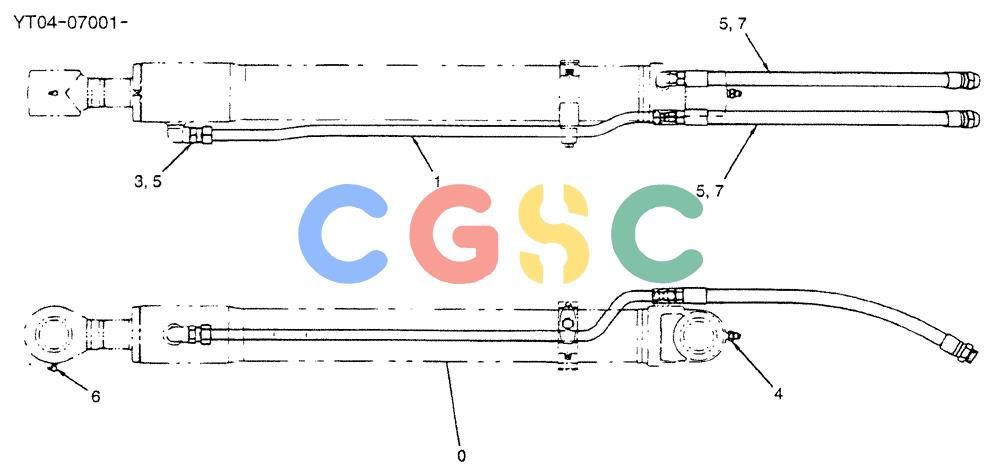

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YT01V00002F1 | [1] | CYLINDER ASSY. | KOB |
| . . | YT42H00003F2 | [1] | HYD LINES, CYLINDER | |
| 1. | YT42H01009P1 | [1] | TUBE | KOB |
| 3. | ZA23F22008 | [1] | HYD CONNECTOR | KOB1/2" PT - M30x1.50 x 43mm Long |
| 4. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 5. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 6. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 7. | YT42H01030D2 | [2] | HOSE | KOBHOSE |
