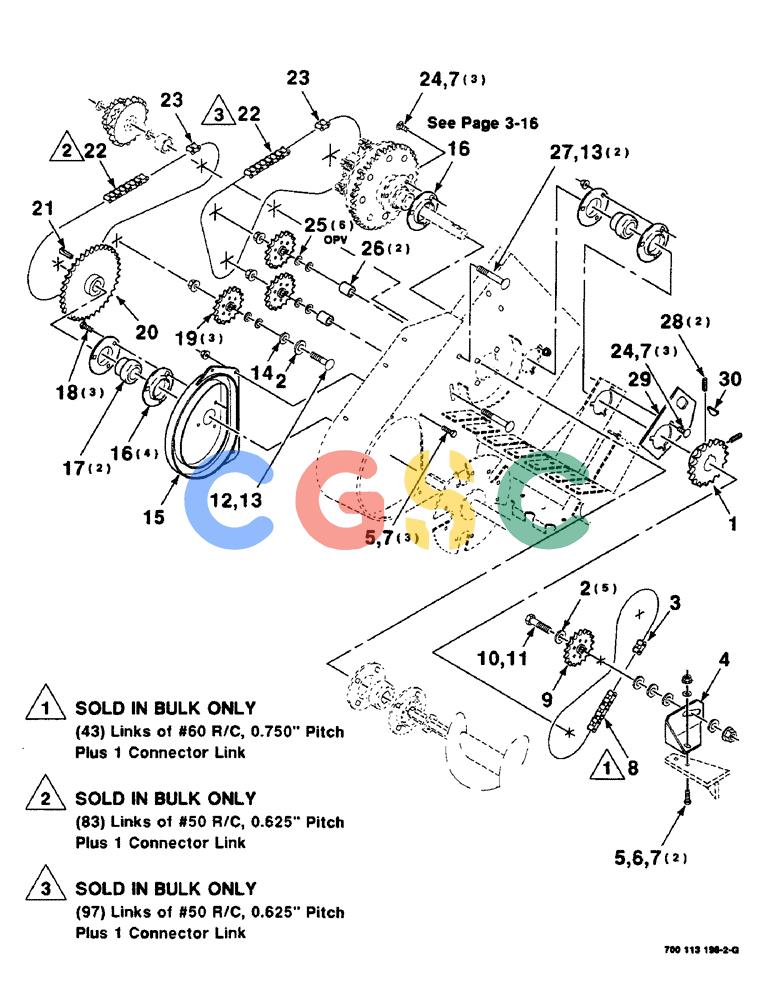

| 1. |
7047541
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET 60B18 TOOTH
|
| 2. |
396-21066
|
[6] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 3. |
241-1416
|
[1] |
LINK
|
CAS
- connector, #60 R/C Superseded by part number: 241-1316
|
| 4. |
700113291
|
[1] |
SUPPORT
|
CAS
|
| 5. |
413-620
|
[5] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 6. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 7. |
232-5316
|
[11] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 8. |
7086002
|
[1] |
CHAIN (AG)
|
CAS
CHAIN - roller, #60 (10 foot bulk) Superseded by part number: 611362R91X, 241-1316
|
| 9. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
- idler 15 tooth
|
| 10. |
413-1040
|
[1] |
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 280233
|
| 11. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8-11 HFTLN GR/G Superseded by part number: 84180923
|
| 12. |
433-840
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/2", Gr 5
|
CAS
1/2-13 X 2-1/2 RHSNB Superseded by part number: 280435
|
| 13. |
700714586
|
[3] |
FLANGE NUT
|
CAS
1/2-13 HFN GR/8 Superseded by part number: 329-288
|
| 14. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 15. |
700113645
|
[1] |
CAM
|
CAS
- pickup Superseded by part number: 700138846
|
| 16. |
T27207
|
[5] |
FLANGED BEARING
|
CAS
FLANGE Superseded by part number: 617863R1
|
| 17. |
51292
|
[2] |
SPHERICAL BEARING,1.25" ID x 72 mm OD x 19 mm
|
IH
Superseded by part number: 84330041, 47508357
|
| 18. |
121-226
|
[3] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 19. |
565442R91
|
[3] |
SPROCKET
|
IH
- idler 17 tooth Superseded by part number: 87302107
|
| 20. |
6141311
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET 50B36 TOOTH
|
| 21. |
61424
|
[1] |
KEY
|
CAS
1/4 X 1-1/4 GIB KEY
|
| 22. |
1791D
|
[1] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
CHAIN - roller #50 (10 foot bulk)
|
| 23. |
47530
|
[2] |
LINK, CONNECTING
|
IH
LINK - connector, #50 R/C
|
| 24. |
434-616
|
[6] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 25. |
95-81101
|
[6] |
WASHER,0.52" ID x 0.88" OD x 0.07" Thk
|
CAS
1/2 X 14 GAUGE NRMB P
|
| 26. |
6530638
|
[2] |
BUSHING
|
CAS
|
| 27. |
111-505
|
[2] |
CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5
|
CAS
BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5
|
| 28. |
83-13810
|
[2] |
SET SCREW,Hex Soc, 3/8"-16 x 5/8"
|
CAS
3/8-16 X 5/8 CPHSSS
|
| 29. |
700113297
|
[1] |
SHIELD
|
CAS
|
| 30. |
114745
|
[1] |
WOODRUFF KEY,#21, 1/4" x 1 1/4", HT
|
IH
|
