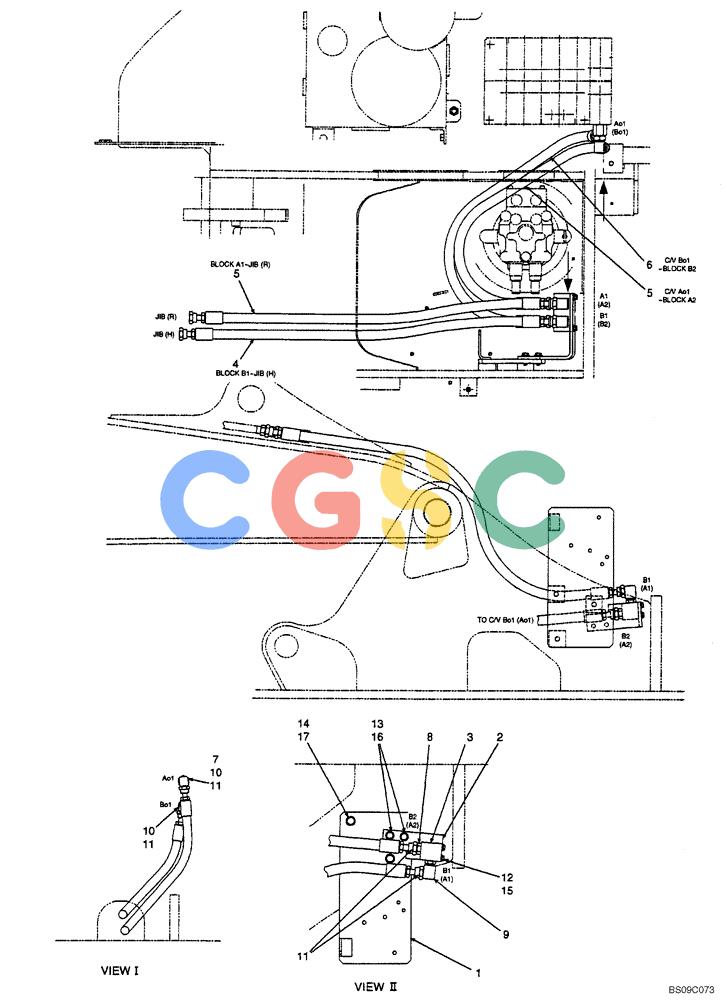

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-003[00]) - UPPER HYDRAULIC LINES, (2-PIECE BOOM), (YY03H00047F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
602 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY03H01099P1 | [1] | BRACKET | KOBBracket |
| 2. | YY03H01100P1 | [1] | SUPPORT | KOBSupport |
| 3. | YY03H01101P1 | [1] | BLOCK | KOBBlock |
| 4. | YY03H01049D4 | [1] | HOSE | KOBHose |
| 5. | YY03H01049D3 | [2] | HOSE | KOBHose |
| 6. | YY03H01049D2 | [1] | HOSE | KOBHose |
| 7. | HH25R12012G1 | [1] | HYD CONNECTOR | KOB3/4"PFx52mm Long (Incls. O-Ring 237-6012) |
| . . | 237-6012 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CAS(Part of HH25R12012G1), SAE No. 12-1, Not Shown Superseded by part number: 167266, 79051113, 72186120 |
| 8. | ZG23F10008 | [2] | HYD CONNECTOR | KOB1-14UNS x 1/2" PF x 43.5mm (5/8x1/2) (Incls. O-Ring 237-6008) |
| . . | 237-6008 | [1] | O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro | CAS(Part of ZG23F10008), SAE No. 8-1 (Same as ZD12P02400), Not Shown Superseded by part number: 128825 |
| 9. | ZG33F10008 | [2] | 90 ELBOW,1"-14 UNS x PF 1/2" | KOB90° -- 1" -14UNS x 1/2" PF (Incls. O-Ring ZD12P01800) |
| . . | ZD12P01800 | [1] | O-RING | KOB(Part of ZG33F10008), ID 17.8mm x OD 20.2mm, Not Shown |
| 10. | ZG33F10012 | [2] | 90 ELBOW,1"-14 UNS x PF 3/4" | KOB90° -- 1" -14UNS - PF 3/4 (Incls. O-Ring ZD12P02400) |
| . . | ZD12P02400 | [1] | O-RING | KOB(Part of ZG33F10012), ID 23.70 ± 0.24 x OD 30mm, Not Shown |
| 11. | ZD12A01600 | [6] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 12. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 13. | ZS18C10030 | [2] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 14. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 15. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 16. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 17. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
