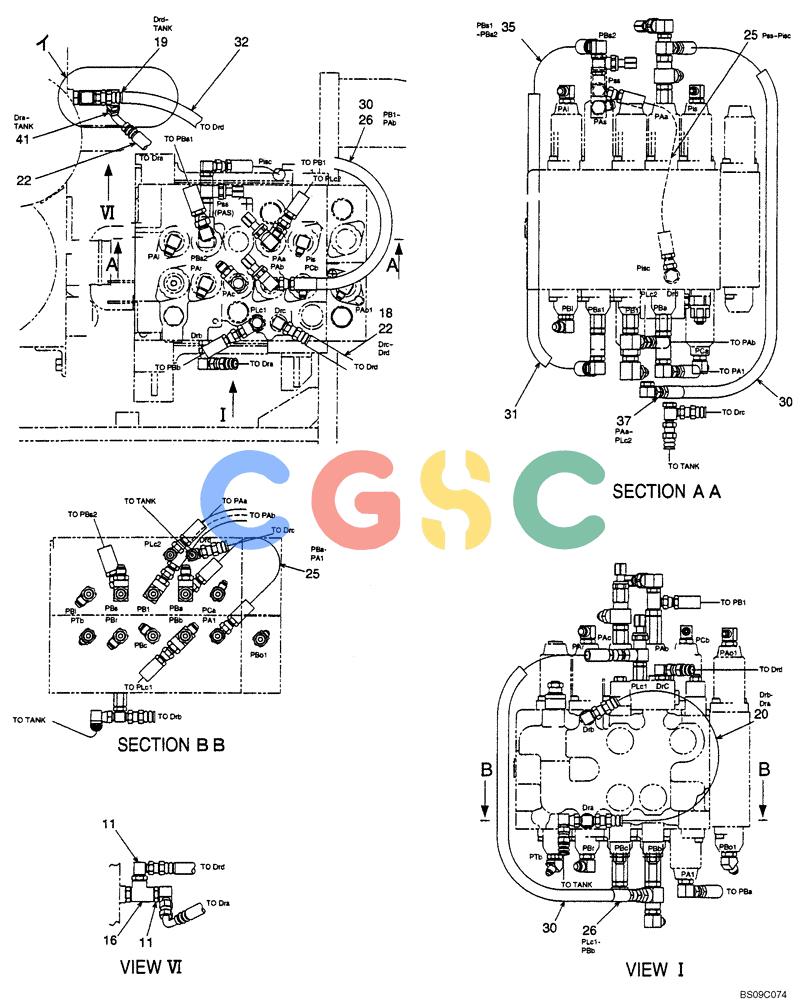

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-005[01]) - CONTROL LINES, REMOTE (MAIN, BOOM & ARM), (2-PIECE BOOM), PAGE 1 OF 2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
393 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 11. | ZH32X04006 | [8] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400), (F1 Only) |
| . . | ZH32X04006 | [7] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400), (F3 & F5 Only) |
| 16. | HH55Q06006G1 | [7] | TEE | KOB3/8" PF (Incls. O-Ring ZD12P01400), (F1 Only) |
| . . | HH55Q06006G1 | [8] | TEE | KOB3/8" PF (Incls. O-Ring ZD12P01400), (F3 Only) |
| 18. | 2444R1120D065 | [1] | HOSE | KOB650mm Long (25-1/2 in) |
| 19. | 2444R1120D045 | [1] | HOSE | KOB450mm Long (17-23/32 in) |
| 20. | 2444R1120D050 | [1] | HOSE | KOB500mm Long (19-11/16 in) |
| 22. | PU13E01010DJ | [2] | TUBE | KOBID 15.2 x OD 19.5 x 600mm Long |
| 25. | ZX23M04040 | [2] | HOSE ASSY. | KOB400mm Long (15-3/4 in) |
| 26. | ZX23M04076 | [2] | HOSE | KOB760mm Long (29-59/64 in) |
| 30. | PU13E01010DN | [3] | TUBE | KOBID 15.2 x OD 19.5 x 650mm Long |
| 31. | 2418Z1333D32 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 650mm Length | KOBProtective Plastic |
| 32. | PU13E01010D2 | [1] | TUBE | KOBID 15.2 x OD 19.5 x 350mm Long |
| 35. | ZX23M06076 | [1] | HOSE ASSY. | KOB760mm Long (29-59/64 in) Superseded by part number: ZX23M06080 |
| 37. | ZX23M04070 | [1] | HOSE ASSY. | KOB700mm Long (27-1/2 in) |
| 41. | 2444R1122D065 | [1] | HOSE | KOB |
