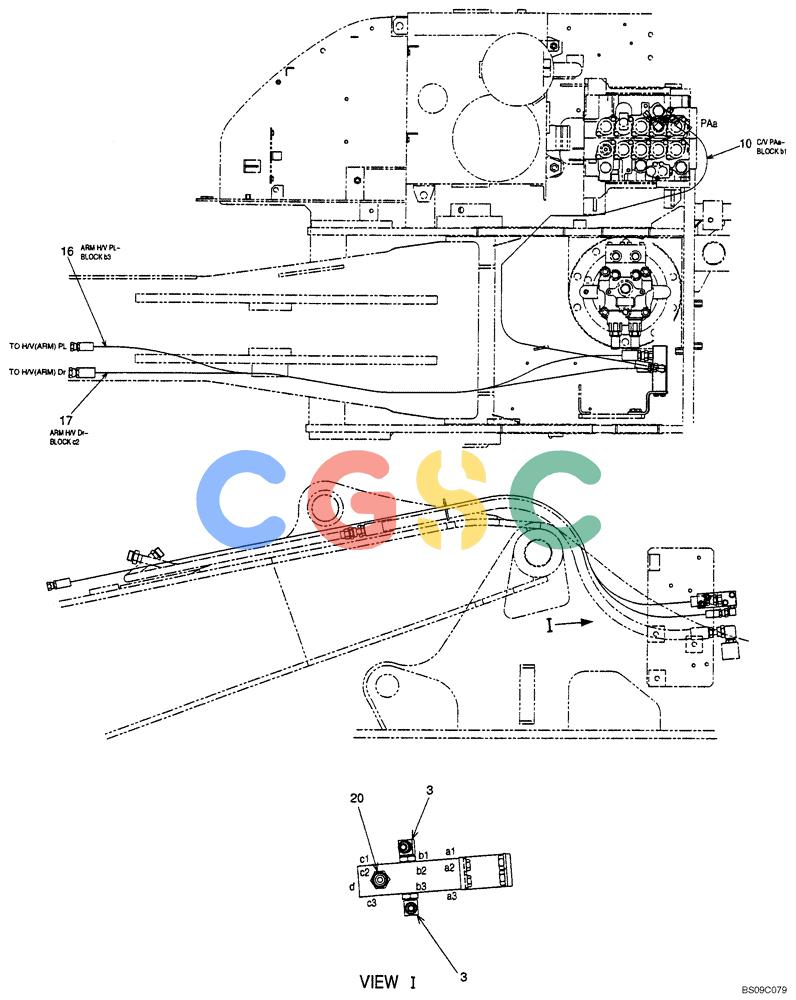

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-009[03]) - VALVE CONTROL LINES, (2-PIECE BOOM), (YY64H00045F1, YY64H00045F2 & YY64H00045F3), PAGE 3 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
831 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, (F1 & F2 Only) |
| . . | ZH32X06000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, (F3 Only) |
| 10. | ZX23M06250 | [1] | HOSE | KOB2500mm Long (98-7/16 in), (F3 Only) |
| 16. | ZX23M06600 | [1] | HOSE | KOBHose, 6000mm Long (236-7/32 in), (F3 Only) |
| 17. | ZX22M08600 | [1] | HOSE | KOBHose, 6000mm Long (236-7/32 in), (F3 Only) |
| 20. | 2444R402D4 | [1] | HYD CONNECTOR | HIT(Incls. O-Ring ZD12P01400), (F3 Only) |
