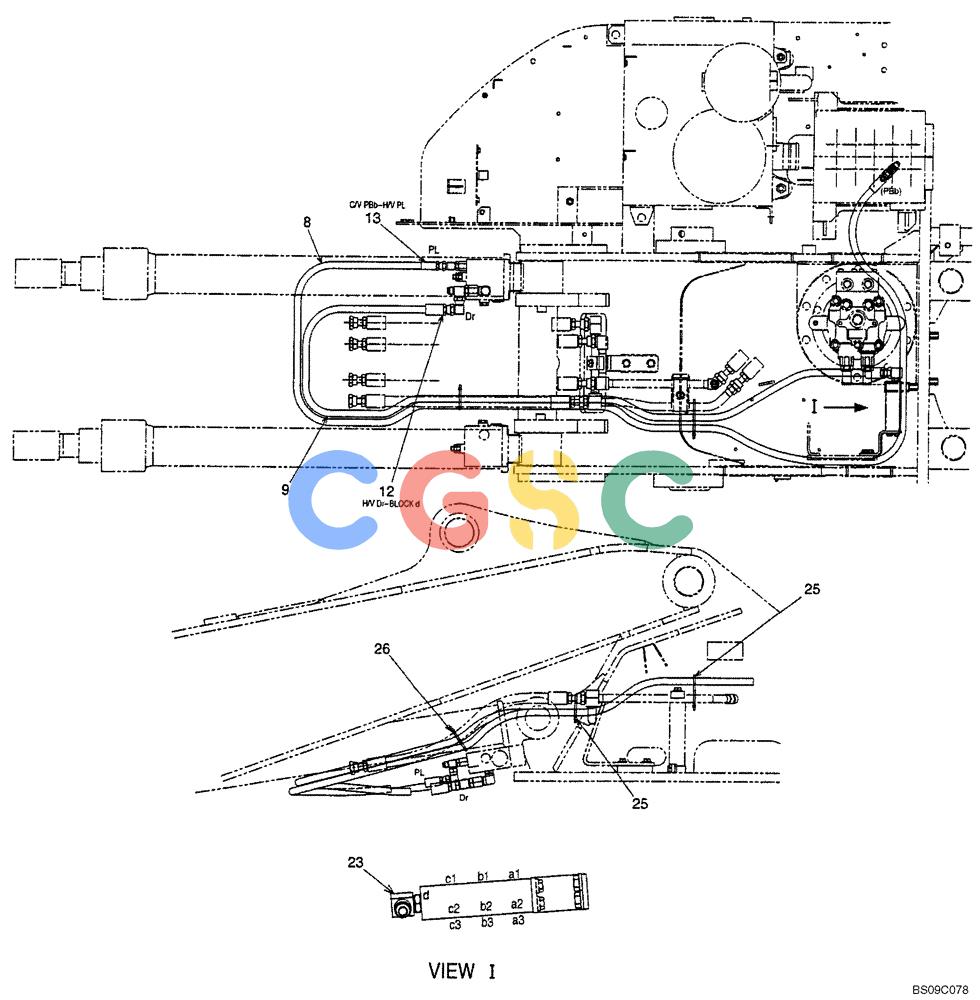

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-009[02]) - VALVE CONTROL LINES, (2-PIECE BOOM), (YY64H00045F1, YY64H00045F2 & YY64H00045F3), PAGE 2 OF 3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 8. | 2418Z1333D16 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 2700mm Length | KOBProtective Plastic, (F2 & F3 Only) |
| 9. | YN20M01046DG | [1] | PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 2600.00mm | KOBProtective Plastic, (F2 & F3 Only) |
| 12. | ZX22M08270 | [1] | HOSE | KOBHose, 2700mm Long (106-19/64 in), (F2 & F3 Only) |
| 13. | ZX23M06380 | [1] | FLEXIBLE HOSE | KOB3800mm Long (149-39/64 in), (F2 & F3 Only) |
| 23. | 2444R399D9 | [2] | HYD CONNECTOR | KOBElbow -- (Incls. O-Ring ZD12P01400), (F1 & F2 Only) |
| . . | 2444R399D9 | [3] | HYD CONNECTOR | KOBElbow -- (Incls. O-Ring ZD12P01400), (F3 Only) |
| 25. | PY01P01043D8 | [5] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long, (F1 & F2 Only) |
| . . | PY01P01043D8 | [7] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long, (F3 Only) |
| 26. | PY01P01043D5 | [1] | CABLE TIE,301mm L | KOBWire Ties -- 292mm Long, (F2 & F3 Only) |
