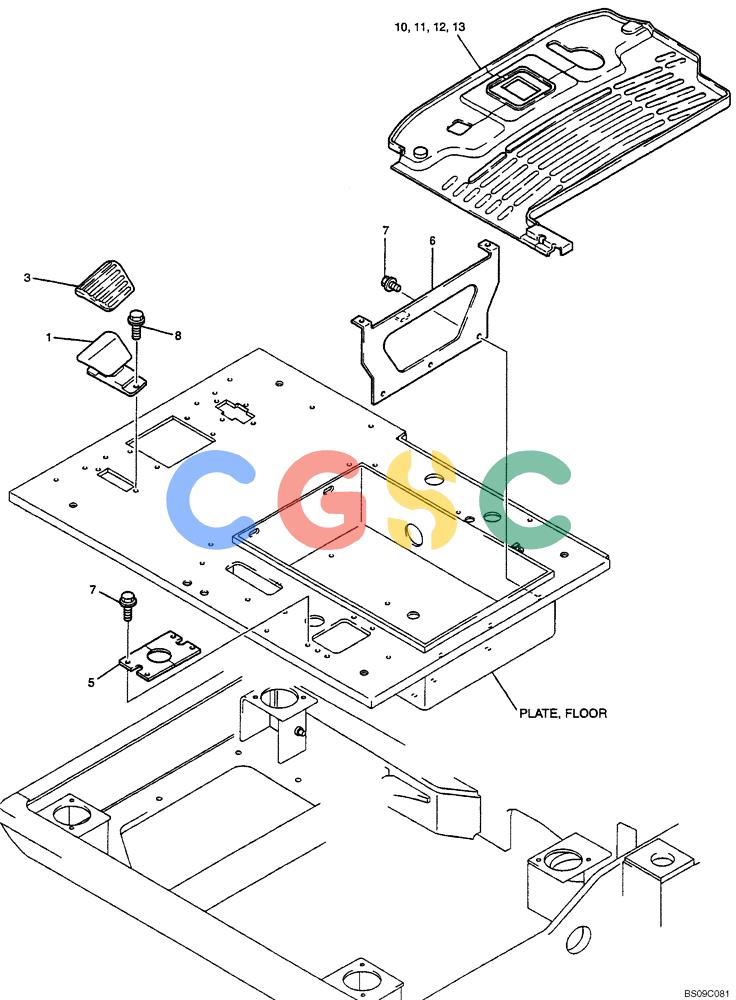

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-013[00]) - FLOOR PLATE GROUP, (2-PIECE BOOM), (YY03M00014F2, YY03M00014F3, YY03M00014F4 & YY03M00014F5) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
839 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT03M01112P1 | [1] | SUPPORT | KOB(F2 & F3 Only) |
| 3. | YN03M01201P1 | [1] | COVER | KOB(F2 & F3 Only) |
| 5. | YN03M01062P3 | [2] | COVER | KOB |
| 6. | YT03M01077P2 | [1] | SUPPORT | KOB |
| 7. | ZM22C08020 | [7] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 8. | ZM22C10025 | [2] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher), (F2 & F3 Only) |
| 10. | YY26M00003P1 | [1] | FLOOR MAT | KOB(F2 Only) |
| 11. | YY26M00004P1 | [1] | FLOOR MAT | KOB(F3 Only) |
| 12. | YY26M00005P1 | [1] | FLOOR MAT | KOB(F4 Only) |
| 13. | YY26M00006P1 | [1] | FLOOR MAT | KOB(F5 Only) |
