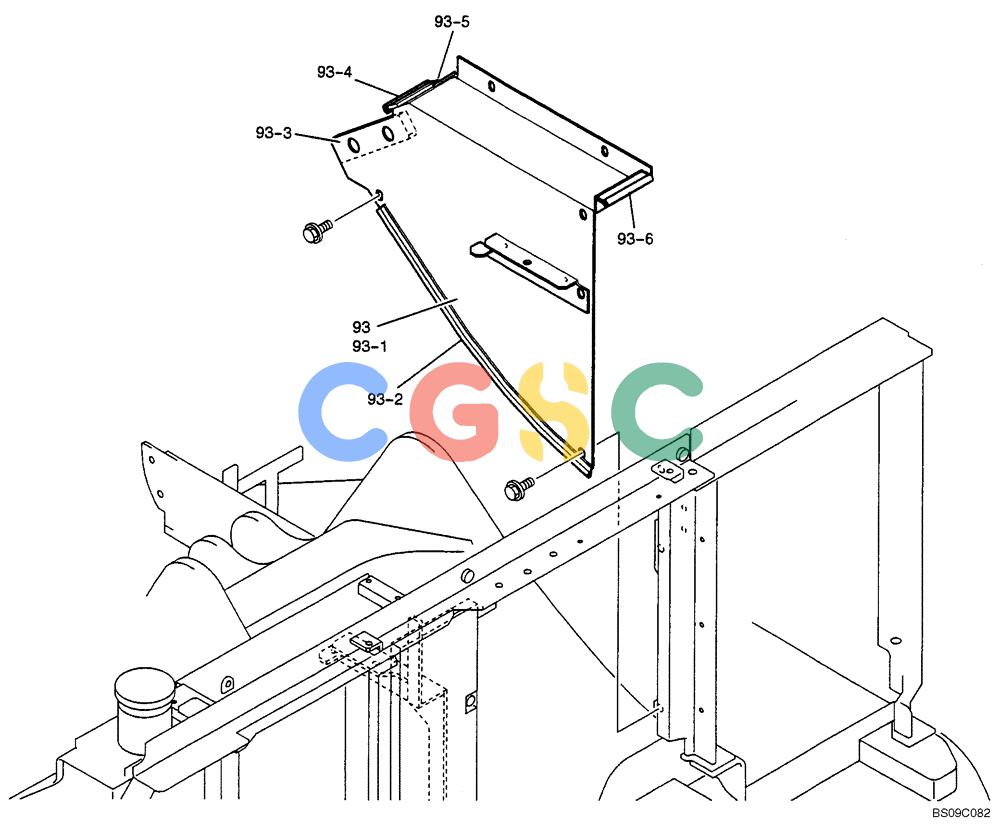

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-015[00]) - GUARD INSTALLATION, (2-PIECE BOOM), (YY21C00010F3) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
249 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 93. | YY21C01123F1 | [1] | GUARD ASSY. | KOB |
| 93-1. | YY21C01139P1 | [1] | GUARD | KOB |
| 93-2. | YT21C01163DA | [1] | WEATHERSEAL STRIP | KOBWeatherstrip |
| 93-3. | YV21C01099P1 | [1] | RUBBER | KOB |
| 93-4. | YT21C01037D6 | [1] | TRIM PANEL | KOB120mm Long (4-23/32 in) |
| 93-5. | YT21C01159D6 | [1] | WEATHERSTRIP | KOB |
| 93-6. | LE21C01070DQ | [1] | WEATHERSEAL STRIP | KOBWeatherstrip |
