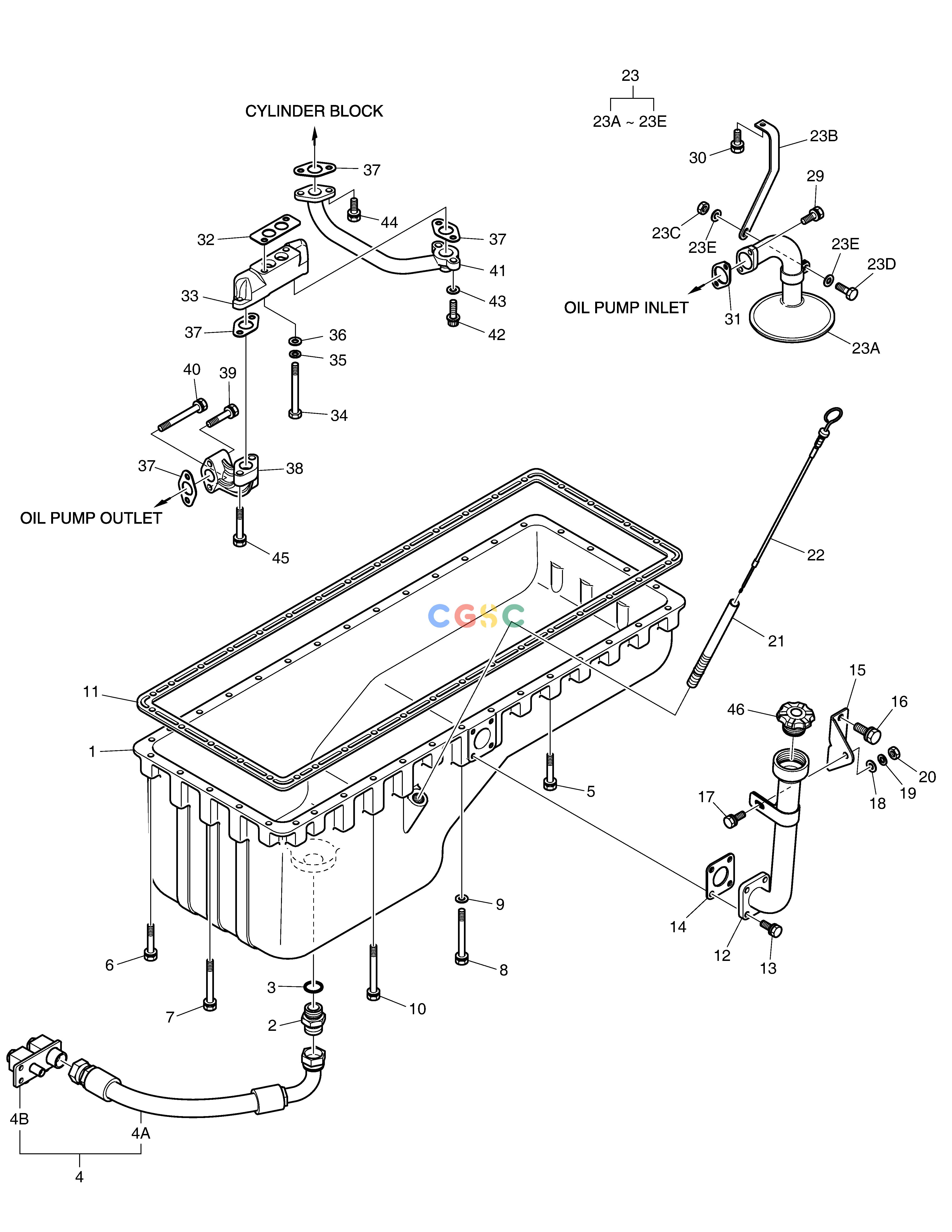

斗山零件查询OIL PIPE - IN OIL PAN DL250A Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
865 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150119-00007
|
[1] |
OIL PAN
|
|
| 10. |
06.01923-3129
|
[3] |
BOLT ASS'Y M8X90
|
|
| 11. |
65.05904A0016
|
[1] |
GASKET;OIL PAN
|
|
| 12. |
65.01813-5016
|
[1] |
PIPE;OIL FILLER
|
|
| 13. |
06.01913-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 14. |
65.05903-0025
|
[1] |
GASKET
|
|
| 15. |
65.01840-0003
|
[1] |
BRACKET
|
|
| 16. |
06.01913-3211
|
[2] |
BOLT ASS`Y M10X1.5X16
|
|
| 17. |
06.01283-7115
|
[1] |
BOLT M8X25
|
|
| 18. |
06.15010-2311
|
[1] |
WASHER
|
|
| 19. |
06.16731-2107
|
[1] |
WASHER
|
|
| 2. |
65.98130-0203
|
[1] |
ADAPTER
|
|
| 20. |
06.11063-8214
|
[1] |
. NUT
|
|
| 21. |
65.05806-5098A
|
[1] |
TUBE;GUIDE
|
|
| 22. |
65.05805-5189A
|
[1] |
GAUGE;OIL LEVEL
|
|
| 23. |
65.05701-6075A
|
[1] |
OIL SUCTION PIPE ASS'Y
|
|
| 23A. |
65.05701-5635A
|
[1] |
. PIPE;SUCTION
|
|
| 23B. |
65.05740-0096
|
[1] |
. HOLDER;OIL SUCTION PIPE
|
|
| 23C. |
65.90510-0012
|
[1] |
NUT
|
|
| 23D. |
06.01283-7114
|
[1] |
BOLT;HEX. M8X22
|
|
| 23E. |
06.15010-2311
|
[2] |
WASHER
|
|
| 29. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 3. |
06.56190-0732
|
[1] |
SEAL;RING
|
|
| 30. |
06.01913-3111
|
[1] |
BOLT ASS`Y M8X16
|
|
| 31. |
65.96601B0019
|
[1] |
GASKET;OIL SUCTION PIPE
|
|
| 32. |
65.05903B0003
|
[1] |
GASKET;CONNECTING FLANGE
|
|
| 33. |
65.05715-5001
|
[1] |
CONNECTING FLANGE ASS`Y
|
|
| 34. |
06.02090-0422
|
[2] |
BOLT;SOCKET HEAD
|
|
| 35. |
06.16110-0106
|
[2] |
. WASHER
|
|
| 36. |
06.15010-2311
|
[2] |
WASHER
|
|
| 37. |
65.96601-0050
|
[4] |
GASKET;OIL PIPE
|
|
| 38. |
65.05701-0030A
|
[1] |
OIL PIPE ASS`Y(O/P->C/F)
|
|
| 39. |
06.01923-3118
|
[1] |
BOLT ASS`Y M8X35
|
|
| 4. |
460102-00033
|
[1] |
|
|
| 40. |
06.01923-3124
|
[1] |
BOLT ASS`Y M8X65
|
|
| 41. |
65.05701-5230
|
[1] |
OIL PIPE ASS'Y
|
|
| 42. |
65.90001-6006
|
[2] |
BOLT;SOCKET HEAD M8X25
|
|
| 43. |
06.15030-0513
|
[2] |
WASHER;PLAIN
|
|
| 44. |
06.01923-3113
|
[2] |
BOLT ASS`Y M8X20
|
|
| 45. |
06.01933-3121
|
[2] |
|
|
| 46. |
65.01810-5011
|
[1] |
CAP;OIL FILLER
|
|
| 4A. |
420108-00300
|
[1] |
|
|
| 4B. |
410202-00014
|
[1] |
|
|
| 5. |
06.01923-3121
|
[23] |
BOLT;HEX. M8X50
|
|
| 6. |
06.01923-3122
|
[1] |
BOLT ASS`Y M8X55
|
|
| 7. |
06.01923-3126
|
[6] |
BOLT;HEX. M8X75
|
|
| 8. |
06.01913-7127
|
[4] |
BOLT ASS'Y M8X80
|
|
| 9. |
06.15010-2311
|
[4] |
WASHER
|
|
