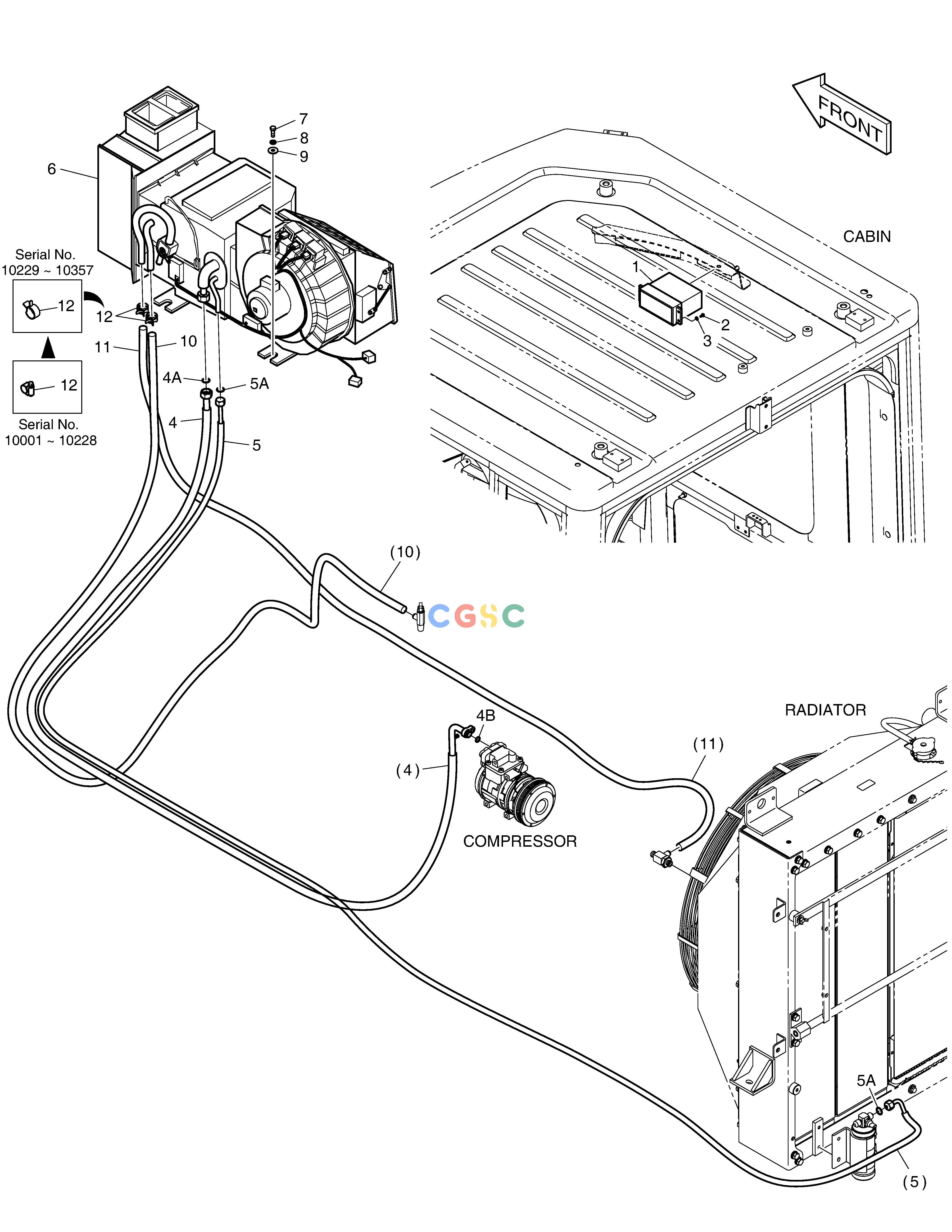

斗山零件查询AIRCONDITIONER - CABIN DL250A Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
721 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00307A
|
[-] |
|
|
| -. |
440213-00307C
|
[-] |
|
|
| -. |
440213-00307H
|
[-] |
|
|
| -. |
440213-00307K
|
[-] |
|
|
| 1. |
K1010519
|
[1] |
CONTROLLER;AIR CON.
|
|
| 10. |
2185-1308D11
|
[1] |
HOSE;RUBBER
|
|
| 11. |
2185-1308D6
|
[1] |
HOSE;RUBBER
|
|
| 12. |
S8450012
|
[2] |
CLAMP
|
|
| 12. |
DS2807026
|
[2] |
|
DS2809008
|
| 12. |
DS2809008
|
[2] |
CLIP
|
|
| 2. |
S3450583
|
[4] |
SCREW
|
|
| 3. |
S5000113
|
[4] |
WASHER
|
|
| 4. |
420102-00247
|
[1] |
|
|
| 4A. |
2180-6087
|
[1] |
O-RING(EVA)
|
|
| 4B. |
2180-6086
|
[1] |
O-RING(COMP)
|
|
| 5. |
420102-00248
|
[1] |
|
|
| 5A. |
K1011388
|
[2] |
O-RING
|
|
| 6. |
440205-00013
|
[1] |
|
440205-00013A
|
| 6. |
440205-00013A
|
[1] |
|
|
| 7. |
S0509053
|
[6] |
. BOLT
|
|
| 8. |
S5102503
|
[6] |
. WASHER
|
|
| 9. |
2114-1058D29
|
[6] |
WASHER
|
|
