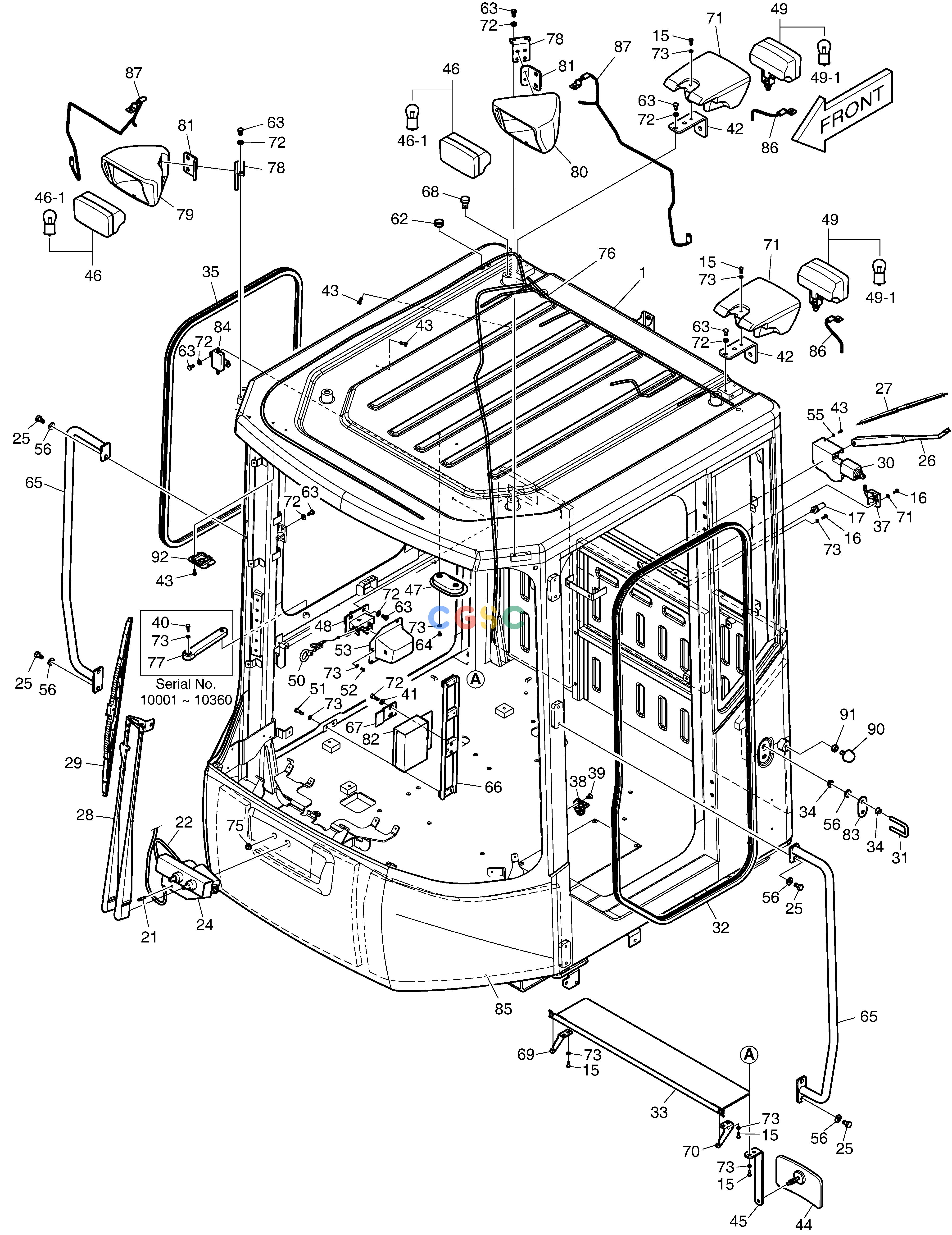

斗山零件查询CABIN(1) - BODY DL250A Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
426 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
220101-00648E
|
[1] |
|
220101-00648G
|
| -. |
220101-00648G
|
[1] |
|
220101-00648H
|
| -. |
220101-00648H
|
[1] |
|
|
| -. |
220101-00648K
|
[1] |
|
220101-00648L
|
| -. |
220101-00648L
|
[1] |
|
220101-00648M
|
| -. |
220101-00648M
|
[1] |
|
220101-00648N
|
| -. |
220101-00648N
|
[1] |
|
220101-00648P
|
| -. |
220101-00648P
|
[1] |
|
220101-00648T
|
| -. |
220101-00648T
|
[1] |
|
|
| -. |
220101-00648C
|
[1] |
|
220101-00648E
|
| 1. |
220101-00649C
|
[1] |
|
|
| 15. |
2120-2166D6
|
[10] |
BOLT
|
|
| 16. |
2120-2166D7
|
[4] |
SCREW
|
|
| 17. |
2415-9001A
|
[1] |
NOZZLE
|
|
| 21. |
2415-1018
|
[1] |
ADAPTER
|
|
| 22. |
4185-1777
|
[2] |
HOSE;WATER
|
|
| 24. |
4538-9017
|
[1] |
MOTOR;WIPER
|
|
| 25. |
2120-2166D4
|
[6] |
BOLT
|
|
| 26. |
300704-00015
|
[1] |
|
|
| 27. |
507-00001
|
[1] |
BLADE;WIPER
|
|
| 28. |
4541-9024
|
[1] |
ARM;WIPER
|
|
| 29. |
4507-9003
|
[1] |
BLADE;WIPER
|
|
| 30. |
2538-9005A
|
[1] |
MOTOR;WIPER
|
|
| 31. |
4120-2206
|
[1] |
BOLT;U M10X1.5
|
|
| 32. |
K1005588
|
[1] |
TRIM;DOOR
|
|
| 33. |
621-02577
|
[1] |
VISOR;SUN
|
|
| 34. |
S4500633
|
[4] |
. NUT
|
|
| 35. |
K1005591
|
[1] |
TRIM;DOOR
|
|
| 37. |
K1005593
|
[1] |
HOOK
|
|
| 38. |
2142-9005
|
[1] |
STRIKER
|
101583-00039
|
| 38. |
101583-00039
|
[1] |
STRIKER;DOOR
|
|
| 39. |
2120-2131
|
[2] |
SCREW M8X1.25
|
|
| 40. |
2120-2166D24
|
[1] |
SCREW M6X1.0X20
|
|
| 41. |
2120-2166D16
|
[6] |
BOLT
|
|
| 42. |
K1010358
|
[2] |
PLATE
|
|
| 43. |
2120-2166D8
|
[5] |
BOLT
|
|
| 44. |
903-00064
|
[2] |
MIRROR;ROOM
|
|
| 45. |
K1024165A
|
[2] |
BRACKET
|
|
| 46. |
534-00085
|
[2] |
LAMP
|
|
| 46-1. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 47. |
534-00079
|
[1] |
ROOM LAMP
|
|
| 48. |
2125-9055
|
[1] |
. LOCK;BACK
|
|
| 49. |
534-00085
|
[2] |
LAMP
|
|
| 49-1. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 50. |
K1005675B
|
[1] |
WIRE ASS'Y
|
|
| 51. |
2120-2166D36
|
[4] |
BOLT
|
|
| 52. |
2120-2166D9
|
[4] |
SCREW
|
|
| 53. |
K1005986
|
[1] |
NOZZLE
|
|
| 55. |
2114-1898D4
|
[3] |
WASHER
|
|
| 56. |
2114-1898D1
|
[8] |
WASHER
|
|
| 62. |
2160-1310
|
[1] |
BUSHING,RUBBER
|
|
| 63. |
2120-2166D25
|
[16] |
BOLT
|
|
| 64. |
S3450933
|
[2] |
SCREW M6X1.0X8
|
|
| 65. |
101582-00305
|
[2] |
|
|
| 66. |
K1005573A
|
[1] |
BRACKET
|
|
| 67. |
K1005577
|
[1] |
PLATE
|
|
| 68. |
S0521056
|
[4] |
BOLT
|
|
| 69. |
195-02499
|
[1] |
BRACKET
|
|
| 70. |
195-02500
|
[1] |
BRACKET
|
|
| 71. |
K1005530A
|
[2] |
PLATE;COVER
|
|
| 72. |
2114-1898D2
|
[22] |
WASHER
|
|
| 73. |
2114-1898D3
|
[24] |
WASHER
|
|
| 73. |
2114-1898D3
|
[25] |
WASHER
|
|
| 75. |
4160-1343
|
[1] |
GROMMET
|
|
| 76. |
310207-01690A
|
[1] |
|
|
| 76. |
310207-01690
|
[1] |
|
|
| 77. |
K1005934
|
[1] |
PLATE
|
|
| 78. |
K1011221
|
[2] |
BRACKET
|
|
| 79. |
K1011222
|
[1] |
COVER
|
|
| 80. |
K1011223
|
[1] |
COVER
|
|
| 81. |
K1011224
|
[2] |
BRACKET
|
|
| 82. |
K1010428
|
[1] |
BRACKET
|
|
| 83. |
K1013442
|
[1] |
WASHER
|
|
| 84. |
K1026460
|
[1] |
ANTENNA
|
|
| 85. |
180102-00918
|
[1] |
|
180102-00918A
|
| 85. |
180102-00918A
|
[1] |
|
|
| 85. |
K1016700
|
[1] |
FOAM
|
180102-00918
|
| 86. |
K1011177
|
[2] |
HARNESS;WORK REAR LAMP
|
|
| 87. |
310207-01694
|
[2] |
|
|
| 90. |
161-00195
|
[1] |
STOPPER
|
|
| 91. |
2121-1311D4
|
[1] |
NUT
|
|
| 92. |
110508-04701A
|
[1] |
|
|
