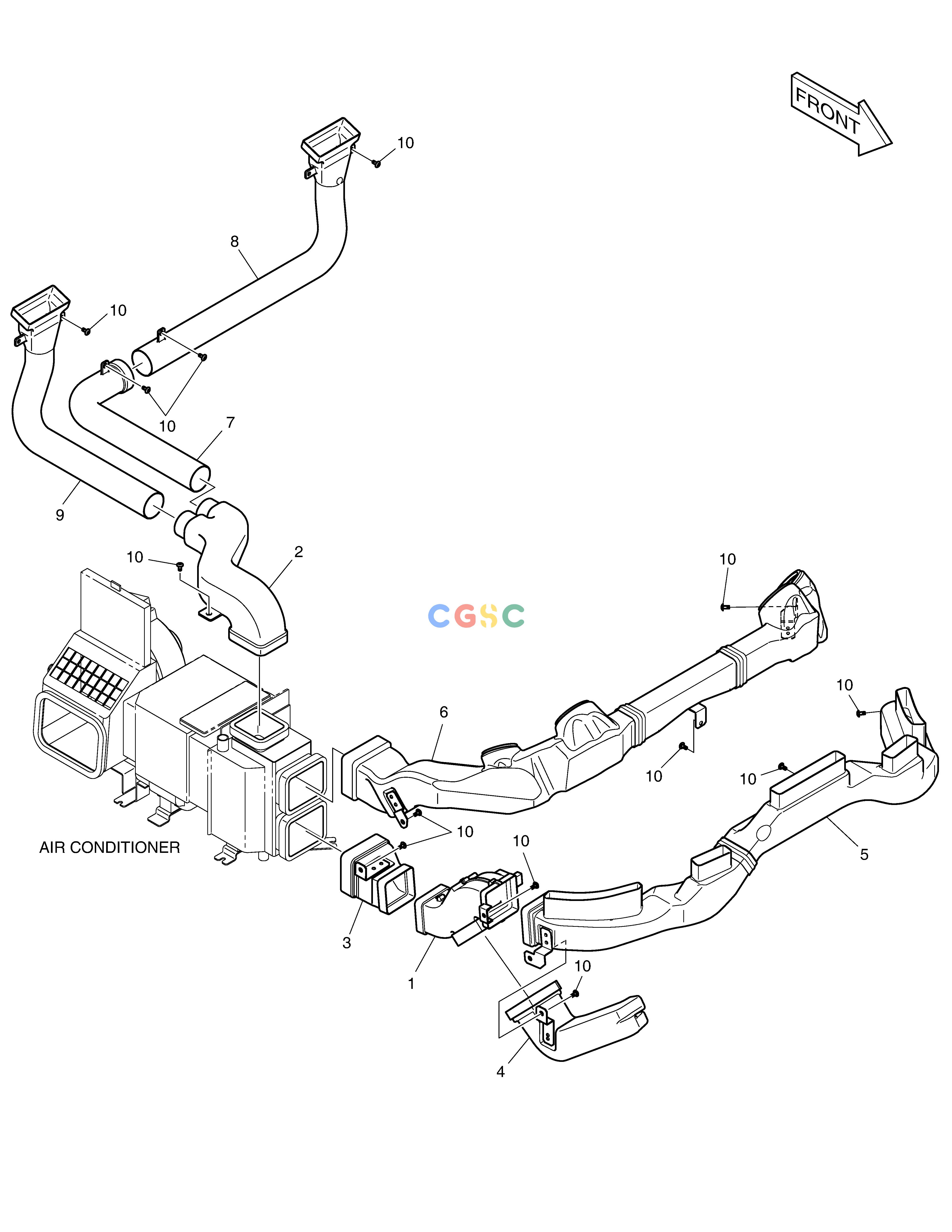

斗山零件查询DUCT ASS'Y DL250A Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016782A
|
[-] |
DUCT ASS'Y
|
|
| -. |
460103-00833
|
[-] |
|
|
| 1. |
2213-9002
|
[1] |
DUCT;FOOT
|
|
| 10. |
2120-2166D10
|
[15] |
SCREW
|
|
| 2. |
K1010160
|
[1] |
DUCT
|
460103-00823
|
| 2. |
460103-00823
|
[1] |
|
|
| 3. |
K1006058
|
[1] |
DUCT;FOOT DEF.
|
460103-00802
|
| 3. |
460103-00802
|
[1] |
|
|
| 4. |
K1006067A
|
[1] |
DUCT;FOOT
|
460103-00804
|
| 4. |
460103-00804
|
[1] |
|
|
| 5. |
K1016783
|
[1] |
DUCT;FOOT DEF. FRONT
|
460103-00834
|
| 5. |
460103-00834
|
[1] |
|
|
| 6. |
K1016787A
|
[1] |
DUCT;VENT FRONT
|
460103-00835
|
| 6. |
460103-00835
|
[1] |
|
|
| 7. |
K1006081
|
[1] |
DUCT;VENT REAR1 (L.H)
|
460103-00809
|
| 7. |
460103-00809
|
[1] |
|
|
| 8. |
K1018856
|
[1] |
DUCT;VENT REAR2 (L.H)
|
460103-00836
|
| 8. |
460103-00836
|
[1] |
|
|
| 9. |
K1006083
|
[1] |
DUCT;VENT REAR (R.H)
|
460103-00814
|
| 9. |
460103-00814
|
[1] |
|
|
