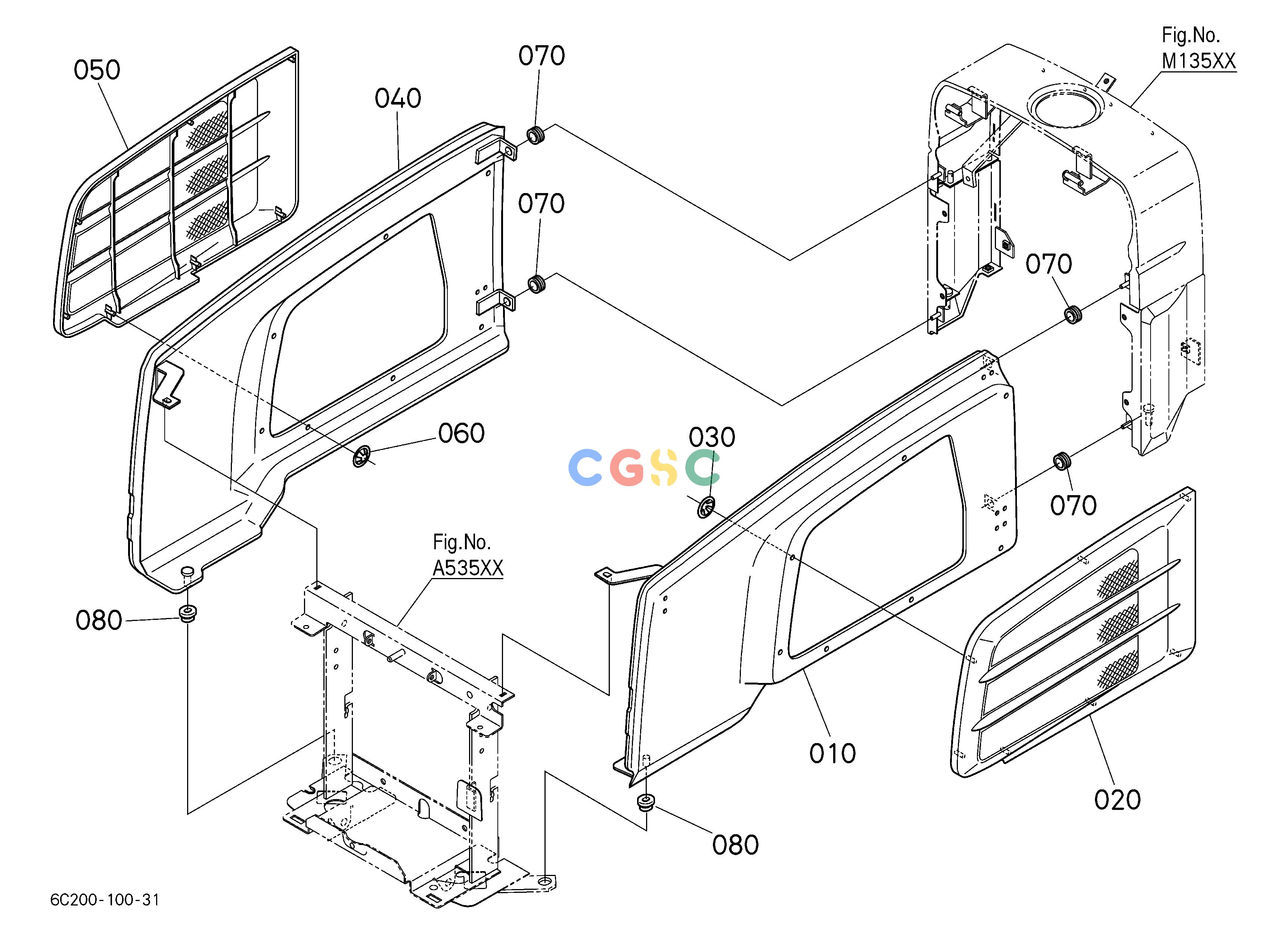

久保田零件查询M12002 SIDE COVER ## S.No.>=52454 S.No.;>=52454 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
463 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A90054320
|
[1] |
COMP.COVER,SIDE
|
3.7840(lbs); 1.720
|
| 010. |
6A90054322
|
[1] |
SKIRT,COMP(SIDE)
|
3.7400(lbs); 1.700
|
| 020. |
6A70054334
|
[1] |
COVER
|
0.5280(lbs); 0.240
|
| 030. |
RA11143690
|
[7] |
NUT
|
0.0022(lbs); 0.001
|
| 040. |
6A90054350
|
[1] |
SKIRT,COMP(SIDE)
|
3.6520(lbs); 1.660
|
| 050. |
6A70054384
|
[1] |
COVER
|
0.5280(lbs); 0.240
|
| 060. |
RA11143690
|
[7] |
NUT
|
0.0022(lbs); 0.001
|
| 070. |
6659154580
|
[4] |
ROD,RELEASE
|
0.0044(lbs); 0.002
|
| 080. |
6A67154390
|
[2] |
GROMMET
|
0.0132(lbs); 0.006
|
| 080. |
6E10054390
|
[2] |
GROMMET
|
0.0110(lbs); 0.005
|
