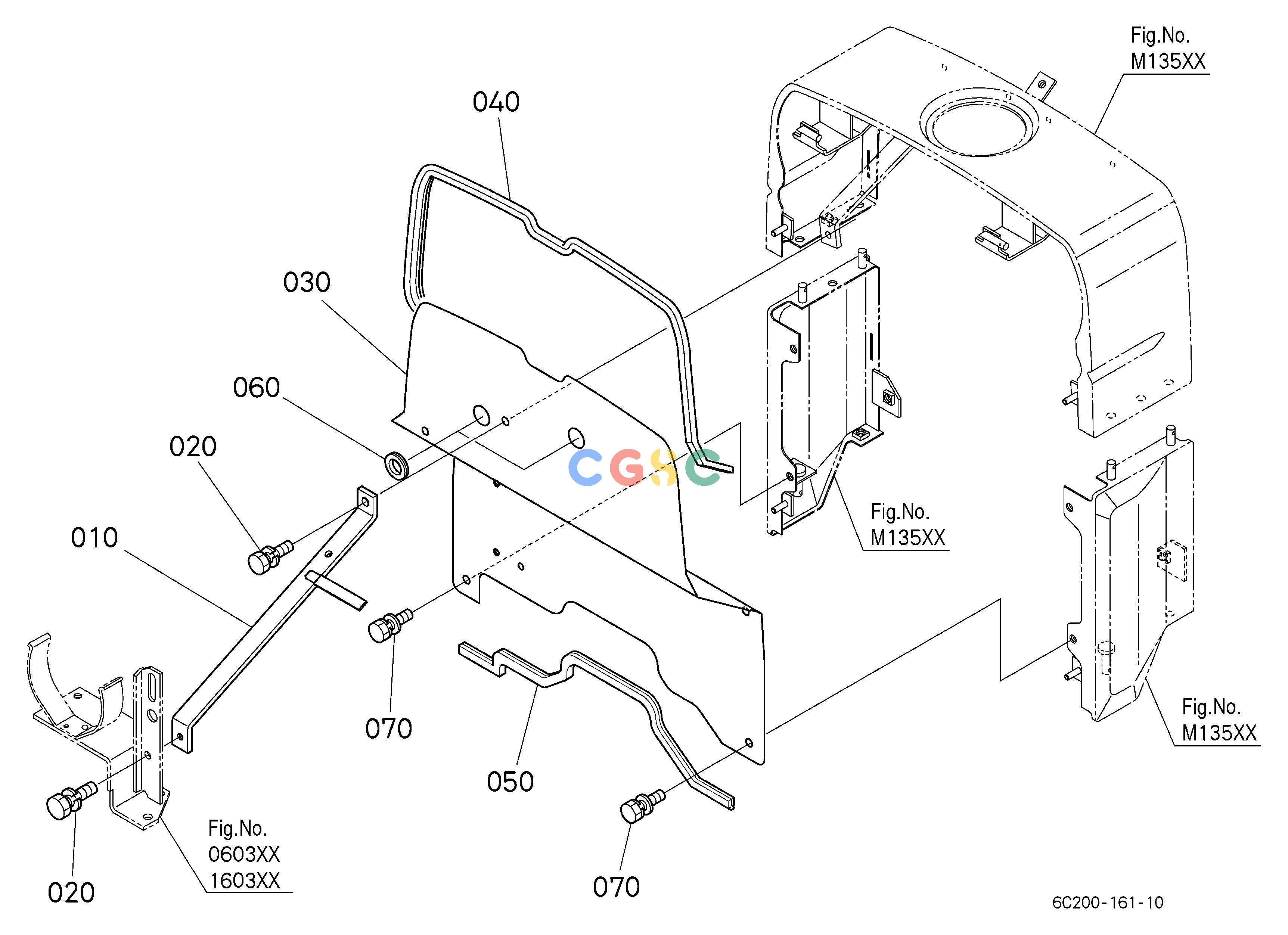

久保田零件查询M13001 SHUTTER PLATE ## S.No.<=52782 S.No.;<=52782 HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
234 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C20054232
|
[1] |
STAY,PILLAR
|
0.0000(lbs); 0.000
|
| 010. |
6C20054234
|
[1] |
STAY,PILLAR
|
0.6600(lbs); 0.300
|
| 020. |
0102350616
|
[2] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 030. |
6C20054552
|
[1] |
PLATE,SHUTTER
|
0.0000(lbs); 0.000
|
| 030. |
6C20054553
|
[1] |
PLATE,SHUTTER
|
3.8500(lbs); 1.750
|
| 030. |
6C20054554
|
[1] |
PLATE,SHUTTER
|
3.7400(lbs); 1.700
|
| 030. |
6C20054555
|
[1] |
PLATE,SHUTTER
|
3.7400(lbs); 1.700
|
| 030. |
6C20054556
|
[1] |
PLATE,SHUTTER
|
3.7400(lbs); 1.700
|
| 040. |
6C20054560
|
[1] |
TRIM,UPPER
|
0.2750(lbs); 0.125
|
| 050. |
6C04252960
|
[1] |
TRIM
|
0.1254(lbs); 0.057
|
| 060. |
5472138340
|
[2] |
GROMMET
|
0.0066(lbs); 0.003
|
| 070. |
0102550616
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
