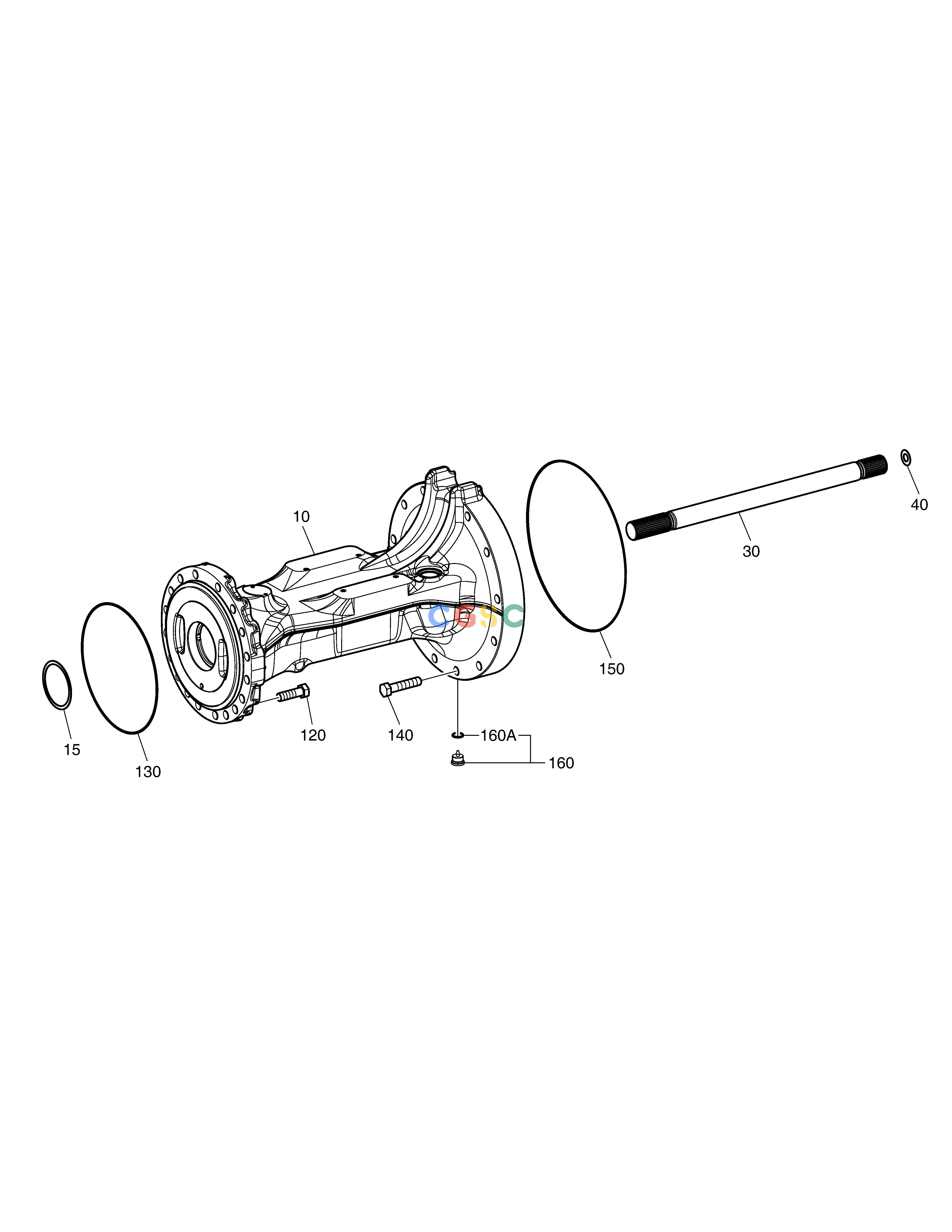

斗山零件查询AXLE CASING - REAR AXLE DL250A Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
712 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
190113-00053
|
[2] |
|
|
| 120. |
1.120-00134
|
[36] |
SCREW;HEXAGON
|
|
| 130. |
K9006022
|
[2] |
O-RING
|
|
| 140. |
K9000758
|
[24] |
SCREW;HEX.
|
|
| 15. |
K9006028
|
[1] |
SHIM A=0,8
|
|
| 15. |
K9006029
|
[1] |
SHIM A=0,9
|
|
| 15. |
K9006030
|
[1] |
SHIM A=1,0
|
|
| 15. |
K9006031
|
[1] |
SHIM A=1,1
|
|
| 15. |
K9006032
|
[1] |
SHIM A=1,2
|
|
| 150. |
K9000176
|
[2] |
O-RING
|
|
| 160. |
120705-00821
|
[2] |
SCREW,PLUG
|
|
| 160A. |
1.180-00137
|
[1] |
. O-RING
|
|
| 30. |
130712-00920
|
[2] |
SHAFT,STUB
|
|
| 40. |
K9000764
|
[1] |
WASHER S=0.2
|
|
| 40. |
K9000765
|
[1] |
WASHER S=0.4
|
|
| 40. |
K9000766
|
[1] |
WASHER S=1.0
|
|
| 40. |
K9000767
|
[1] |
WASHER S=1.5
|
|
