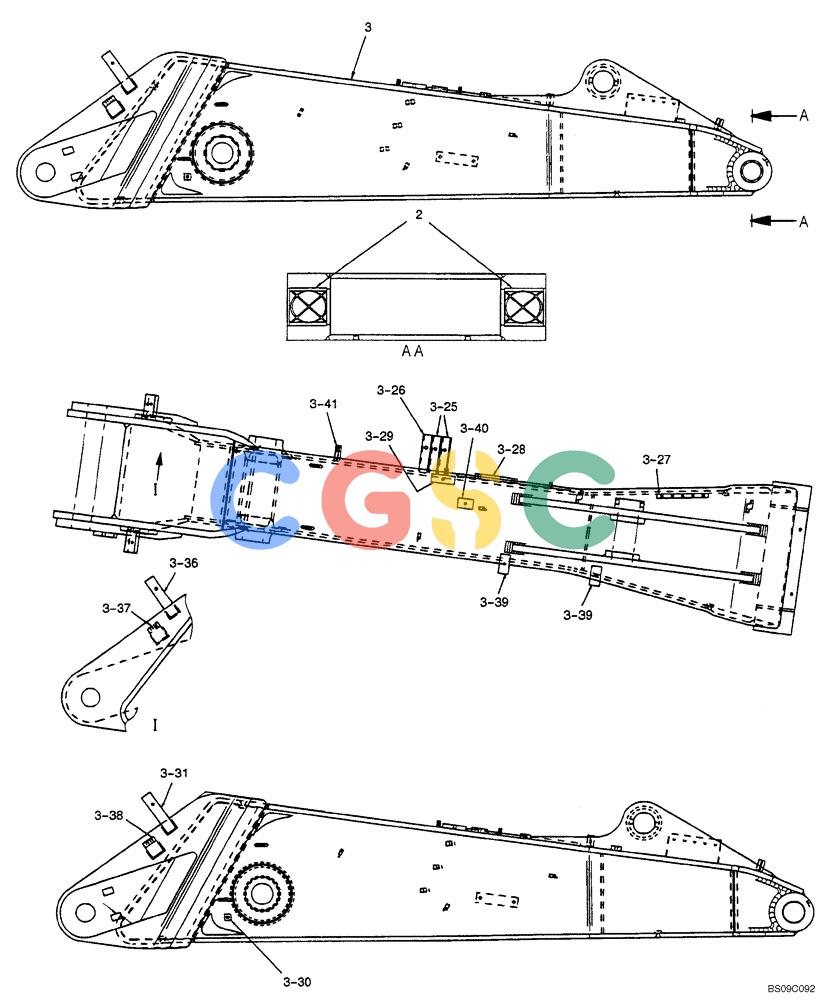

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-019[00]) - MAIN BOOM ASSEMBLY, (2-PIECE BOOM), (YY06B00005F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YX05B01026P1 | [2] | BUSHING | KOB Superseded by part number: |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONMain Boom |
| 3-25. | YV02B01006P1 | [2] | BLOCK | KOBTapped |
| 3-26. | YV02B01007P1 | [1] | BLOCK | KOBTapped |
| 3-27. | YY06B01004P1 | [1] | BLOCK | KOBBlock |
| 3-28. | 2416T27178 | [1] | BLOCK | KOBTapped |
| 3-29. | 2416T9911 | [1] | Block, Tapped | |
| 3-30. | 2416T16280 | [2] | BLOCK | KOBBlock, Tapped |
| 3-31. | YY06B01003P1 | [1] | Block, Tapped | |
| 3-36. | 2416T13274D2 | [1] | BLOCK | KOBTapped |
| 3-37. | YY02B01095P1 | [1] | BRACKET | KOB |
| 3-38. | YW42H01039P1 | [1] | BRACKET | KOB |
| 3-39. | 2416T9803 | [2] | BLOCK | KOBTapped |
| 3-40. | 2416T23310 | [1] | BLOCK | KOBBlock, Tapped |
| 3-41. | 2418T23218 | [1] | PLATE | KOB |
