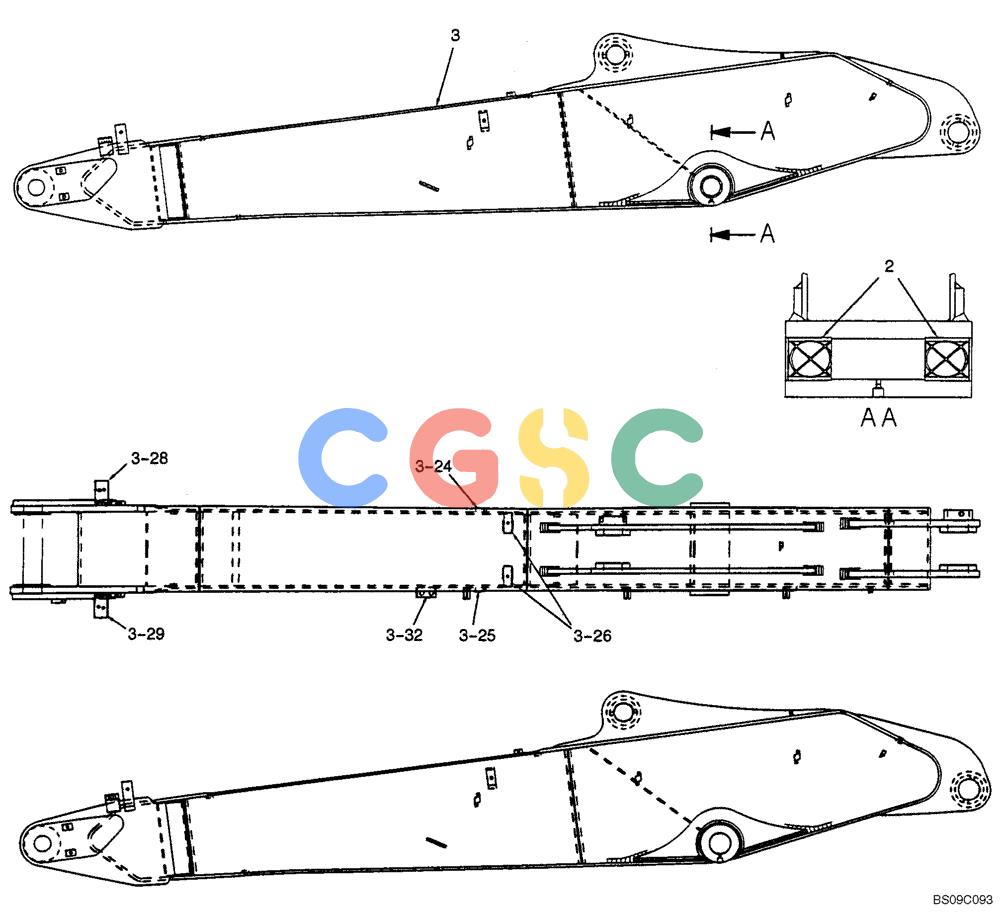

神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-021[00]) - FRONT BOOM ASSEMBLY, (2-PIECE BOOM), (YY05B00014F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
612 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YX05B01026P1 | [2] | BUSHING | KOB Superseded by part number: |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONFront Boom |
| 3-24. | 2416T21134D4 | [1] | Block, Tapped | |
| 3-25. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTapped |
| 3-26. | 2416T5710 | [2] | BLOCK | KOBTapped |
| 3-28. | YY02B01095P1 | [1] | BRACKET | KOB |
| 3-29. | YW42H01039P1 | [1] | BRACKET | KOB |
| 3-32. | 2418T24122 | [1] | PLATE | KOB |
