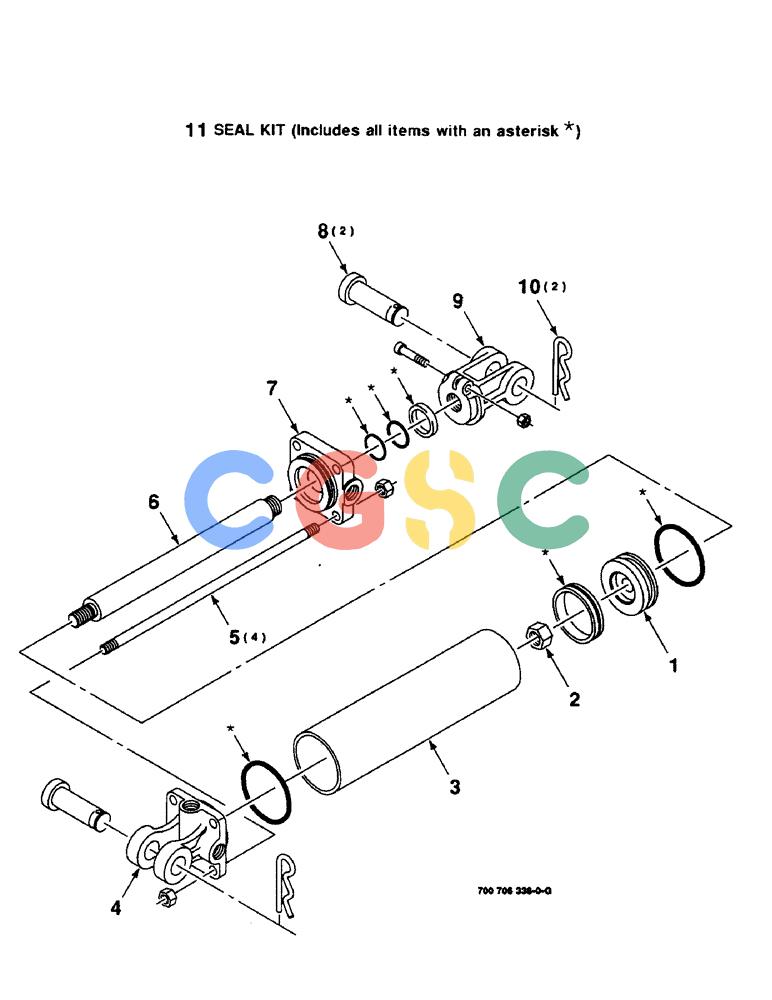

凯斯零件查询(8590) - CASE IH LARGE RECTANGULAR BALER (EUROPE) (1/97-12/98) (8-12) - HYD. CYLINDER ASSEMBLY, DENSITY CONTROL, 700706338 HYD. CYLINDER COMPLETE, 4" BORE X 16" STROKE Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
372 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700706338
|
[1] |
HYDRAULIC CYLINDER,31.75mm Rod, 106.4mm Stroke
|
CAS
COMPLETE (4 inch bore x 16 inch stroke)
|
| 1. |
700708626
|
[1] |
PISTON
|
CAS
|
| 2. |
7036676
|
[1] |
NUT
|
CAS
- piston
|
| 3. |
B17240
|
[1] |
TUBE
|
CAS
|
| 4. |
B17282
|
[1] |
BASE
|
CAS
- cylinder
|
| 5. |
700707317
|
[4] |
TIE-ROD
|
CAS
ROD - tie
|
| 6. |
700707318
|
[1] |
THREADED ROD
|
HFI
ROD
|
| 7. |
B17270
|
[1] |
HEAD
|
CAS
- cylinder
|
| 8. |
427-16350
|
[2] |
CLEVIS PIN,25.4mm OD x 88.9mm L
|
IH
PIN - clevis
|
| 9. |
T55022
|
[1] |
CLEVIS
|
CAS
- rod
|
| 10. |
062455
|
[2] |
PIN, SPLIT (COTTER)
|
CAS
.178 WIRE HAIR PIN COTTER
|
| 11. |
700708625
|
[1] |
SEAL KIT
|
CAS
|
