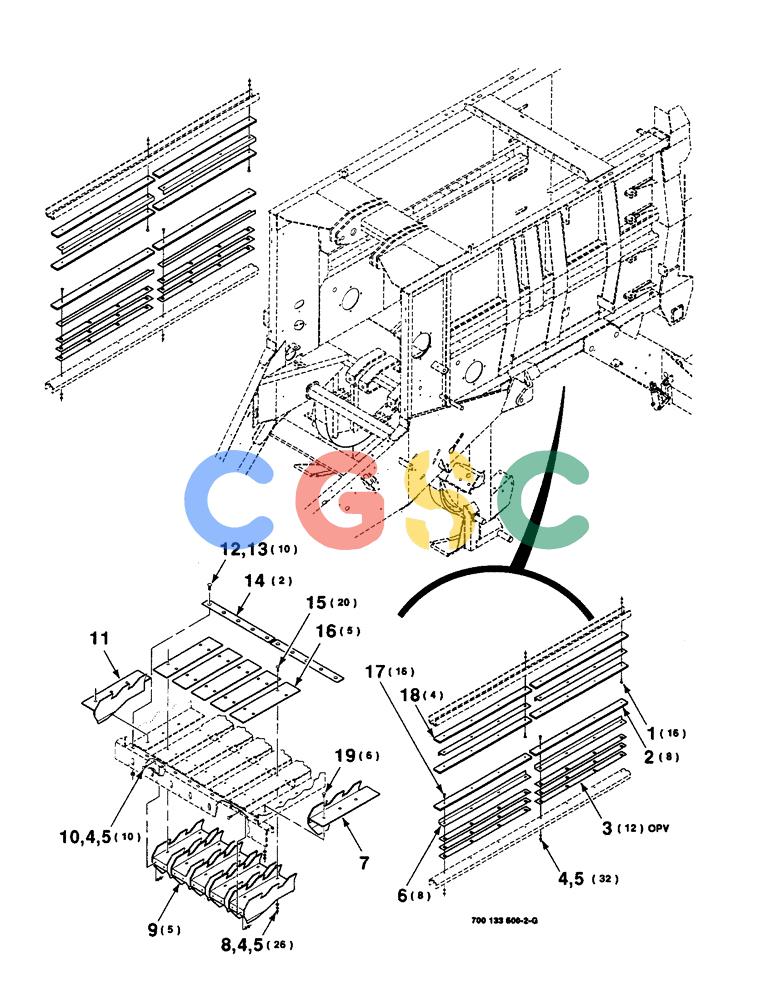

凯斯零件查询(8590) - CASE IH LARGE RECTANGULAR BALER (EUROPE) (1/97-12/98) (7-02) - PLUNGER RAILS, KNIVES AND HAY DOGS ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
164-54
|
[16] |
HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1 3/4"
|
CAS
3/8-16 X 1-3/4 HSFCHCS SPL Superseded by part number: 87846
|
| 2. |
700113607
|
[8] |
GUIDE
|
CAS
RAIL - hardened
|
| 3. |
700113604
|
[12] |
SHIM
|
CAS
- 0.46/.018
|
| 4. |
492-11038
|
[68] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 5. |
425-106
|
[68] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 6. |
700113608
|
[8] |
SHIELD
|
CAS
|
| 7. |
700113600
|
[1] |
DOG
|
CAS
HAY DOG WA - L
|
| 8. |
496-11041
|
[26] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 9. |
700113594
|
[5] |
DOG
|
CAS
HAY DOG WA
|
| 10. |
433-620
|
[10] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 11. |
700113601
|
[1] |
DOG
|
CAS
HAY DOG WA - R
|
| 12. |
707448
|
[10] |
BOLT
|
CAS
1/2-13 X 1-1/2 PLOW BOLT Superseded by part number: 419-3824
|
| 13. |
231-5148
|
[10] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 14. |
700706377
|
[2] |
KNIFE
|
CAS
|
| 15. |
419-2624
|
[20] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5
|
CAS
3/8-16 X 1-1/2 PLOW BOLT Superseded by part number: 281005
|
| 16. |
700113616
|
[5] |
WEAR PLATE
|
CAS
PLATE - wear
|
| 17. |
61-43820
|
[16] |
HEX SOC SCREW,FLAT, 3/8" x 1-1/4"
|
CAS
3/8-16 X 1-1/4 HSFCHCS SPL Superseded by part number: 82039
|
| 18. |
700113606
|
[4] |
GUIDE
|
CAS
RAIL
|
| 19. |
707042
|
[6] |
BOLT,#3, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 PLOW BOLT Superseded by part number: 86516317
|
