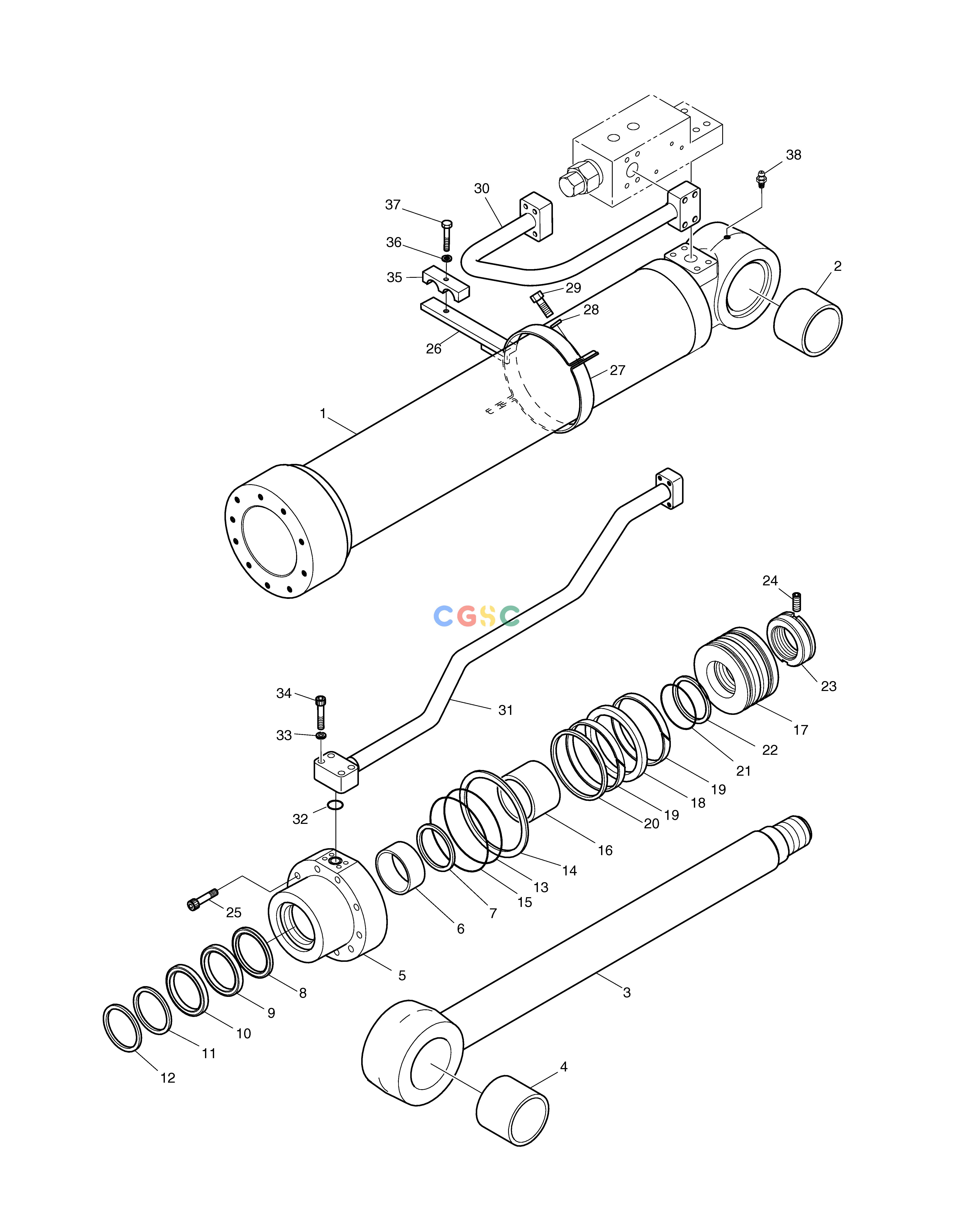

斗山零件查询BOOM CYLINDER - R.H (LOCK VALVE) TXC225LC-2 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9001878
|
[1] |
SEAL KIT;BOOM CYLINDER
|
|
| -. |
K1001219.WH
|
[1] |
BOOM CYLINDER(R.H)
|
K1001219A.WH
|
| -. |
K1001219A.WH
|
[1] |
BOOM CYLINDER(R.H)
|
|
| 1. |
K9001854.WH
|
[1] |
TUBE ASS'Y
|
|
| 10. |
K9001877
|
[1] |
RING;BACK UP
|
|
| 11. |
115-00059
|
[1] |
WIPER;DUST
|
|
| 12. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 13. |
S8011201
|
[1] |
O-RING
|
|
| 14. |
K9001859
|
[1] |
RING;BACK UP
|
|
| 15. |
S8011251
|
[1] |
O-RING
|
|
| 16. |
1.115-00204
|
[1] |
RING;CUSHION
|
|
| 17. |
K9001860
|
[1] |
PISTON
|
|
| 18. |
K9001890
|
[1] |
SEAL;SLIPPER
|
|
| 19. |
115-00087
|
[2] |
RING;WEAR
|
|
| 2. |
K1000736
|
[1] |
BUSH
|
|
| 20. |
K9001861
|
[1] |
RING;DUST
|
|
| 21. |
S8010651
|
[1] |
O-RING
|
|
| 22. |
1.180-00277
|
[2] |
RING;BACK UP
|
|
| 23. |
K9001862
|
[1] |
NUT;PISTON
|
|
| 24. |
1.120-00219
|
[1] |
SCREW;SET
|
|
| 25. |
S2222272
|
[10] |
BOLT;SOCKET
|
|
| 26. |
K9001863.WH
|
[1] |
PIPE BAND ASS'Y
|
|
| 27. |
124-00088.WH
|
[1] |
BAND;PIPE
|
|
| 28. |
S5100603
|
[2] |
WASHER
|
|
| 29. |
S0558153
|
[2] |
BOLT
|
|
| 3. |
K9001855.WH
|
[1] |
ROD ASS'Y
|
|
| 30. |
K9003675.WH
|
[1] |
PIPE ASS'Y-H(R.H)
|
|
| 31. |
K9001867.WH
|
[1] |
PIPE ASS'Y-R(R.H)
|
K9001867A.WH
|
| 31. |
K9001867A.WH
|
[1] |
PIPE ASS'Y-R(R.H)
|
|
| 32. |
S8000281
|
[1] |
O-RING
|
|
| 33. |
S5100603
|
[4] |
WASHER
|
|
| 34. |
S2212761
|
[4] |
BOLT;SOCKET
|
|
| 35. |
3.124-00034
|
[1] |
CLAMP;PIPE
|
|
| 36. |
S5100703
|
[1] |
WASHER;SPRING
|
|
| 37. |
S0561053
|
[1] |
BOLT
|
|
| 38. |
S6710032
|
[1] |
NIPPLE;GREASE
|
|
| 4. |
K1000736
|
[1] |
BUSH
|
|
| 5. |
K9001856.WH
|
[1] |
ROD;COVER
|
|
| 6. |
110-00079
|
[1] |
DD-BUSH
|
|
| 7. |
115-00050
|
[1] |
RING;RETAINING
|
|
| 8. |
K9001857
|
[1] |
SEAL;BUFFER
|
|
| 9. |
K9001858
|
[1] |
U-PACKING
|
|
