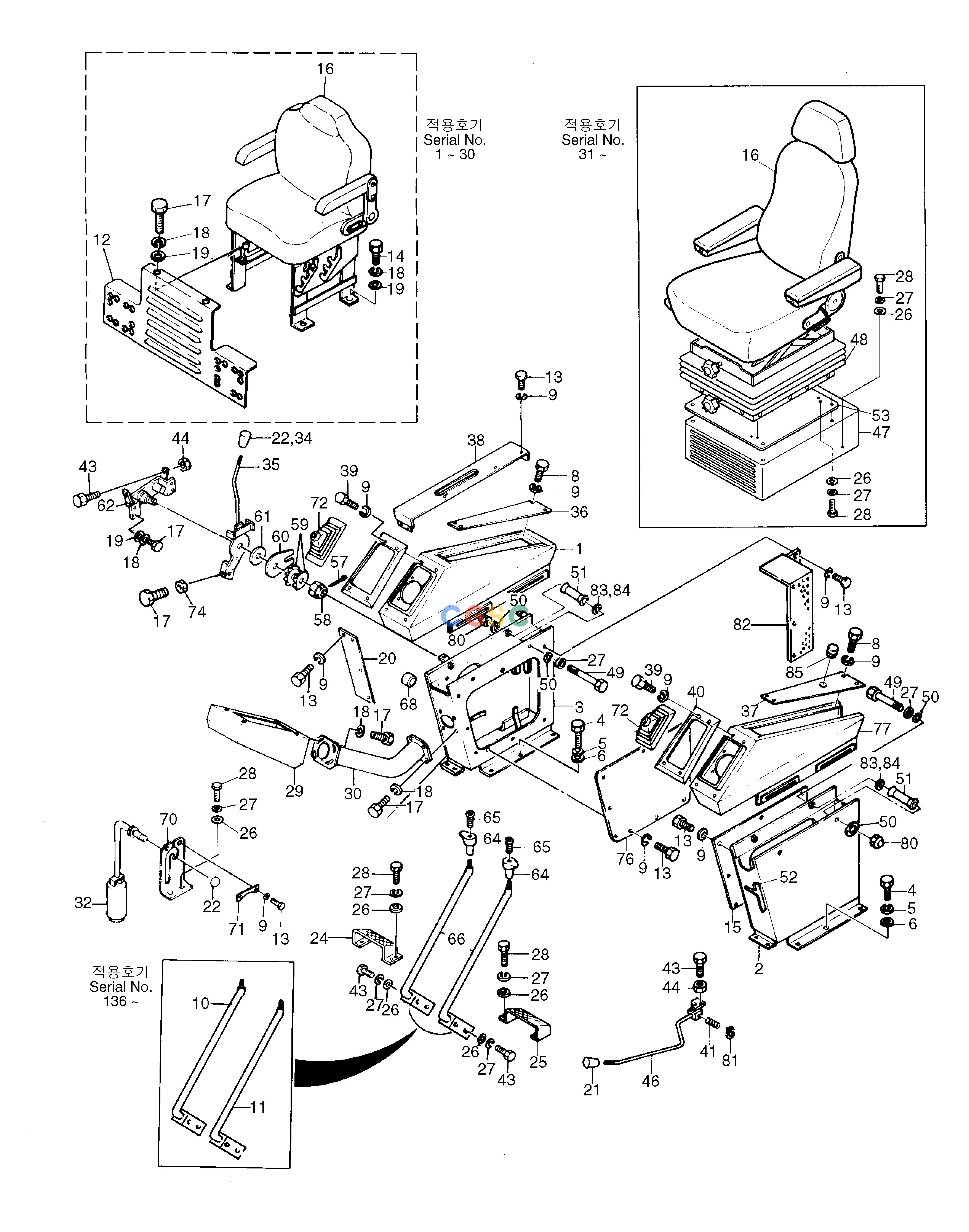

斗山零件查询CONTROL STAND SOLAR 130-2 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2195-3100
|
[1] |
CONTROL STAND ASS'Y
|
|
| 1. |
2195-2670C
|
[1] |
STAND;CONTROL
|
|
| 10. |
2133-1835
|
[1] |
LEVER;TRAVEL(R.H)
|
|
| 11. |
2133-1836
|
[1] |
LEVER;TRAVEL(L.H)
|
|
| 12. |
2621-2204A
|
[1] |
COVER;HEATER
|
|
| 13. |
S0504453
|
[35] |
BOLT
|
|
| 13. |
S0504453
|
[37] |
BOLT
|
|
| 14. |
S0708833
|
[4] |
BOLT M8X1.0X20
|
|
| 14. |
S0508853
|
[4] |
. BOLT
|
|
| 15. |
2621-1957B
|
[1] |
COVER
|
|
| 16. |
2901-1062
|
[1] |
SEAT(DOMESTIC)
|
2901-1062A
|
| 16. |
2901-1062A
|
[1] |
|
|
| 16. |
2901-1021B
|
[1] |
SEAT
|
|
| 16. |
2901-1038
|
[1] |
SEAT
|
|
| 16. |
2901-1043
|
[1] |
SEAT
|
|
| 16. |
2901-1059
|
[1] |
SEAT
|
2901-1059A
|
| 16. |
2901-1059A
|
[1] |
SEAT(EXPORT)
|
|
| 17. |
S0509053
|
[13] |
. BOLT
|
|
| 18. |
S5102503
|
[16] |
. WASHER
|
|
| 19. |
S5010513
|
[8] |
WASHER
|
|
| 2. |
2195-2827E
|
[1] |
STAND;CONTROL
|
|
| 2. |
2195-2827G
|
[1] |
STAND;CONTROL
|
|
| 2. |
2195-2827H
|
[1] |
STAND;CONTROL
|
|
| 20. |
2621-4247
|
[1] |
COVER
|
|
| 20. |
2621-4247B
|
[1] |
COVER
|
|
| 21. |
2132-1108
|
[2] |
GRIP
|
|
| 22. |
2132-1002
|
[2] |
GRIP
|
|
| 24. |
2195-1897
|
[1] |
REST;FOOT
|
|
| 25. |
2195-1898
|
[1] |
REST;FOOT
|
|
| 26. |
S5010613
|
[22] |
WASHER
|
|
| 26. |
S5010613
|
[14] |
WASHER
|
|
| 27. |
S5102603
|
[26] |
. WASHER
|
|
| 27. |
S5102603
|
[18] |
. WASHER
|
|
| 28. |
S0512053
|
[22] |
BOLT
|
|
| 28. |
S0512053
|
[14] |
BOLT
|
|
| 29. |
2539-1032A
|
[1] |
PANEL;INSTRUMENT
|
|
| 3. |
2195-3101A
|
[1] |
STAND;CONTROL
|
|
| 30. |
2195-2680C
|
[1] |
SUPPORT
|
|
| 32. |
2123-4120A
|
[1] |
PIN;SWING LOCK
|
|
| 34. |
2132-9011A
|
[1] |
GRIP
|
2133-1608A
|
| 35. |
2133-1608A
|
[1] |
LEVER;FUEL
|
|
| 35. |
2133-1608B
|
[1] |
LEVER;FUEL
|
|
| 36. |
2621-2041B
|
[1] |
COVER(R)
|
|
| 36. |
2621-2041C
|
[1] |
COVER(RH)
|
|
| 37. |
2621-2234B
|
[1] |
COVER(L)
|
2621-2234C
|
| 37. |
2621-2234C
|
[1] |
COVER(LH)
|
|
| 38. |
2621-1919C
|
[1] |
COVER
|
|
| 38. |
2621-1919E
|
[1] |
COVER
|
|
| 39. |
S3450991
|
[8] |
SCREW M6X1.0X25
|
|
| 4. |
S0515053
|
[16] |
BOLT M12X1.75X25
|
|
| 40. |
2621-1945
|
[2] |
COVER
|
|
| 41. |
2129-1295A
|
[1] |
SPRING
|
|
| 43. |
S0512453
|
[7] |
BOLT M10X1.5X40
|
|
| 44. |
S4012633
|
[3] |
NUT
|
|
| 46. |
2133-1634A
|
[1] |
LEVER
|
2133-1951
|
| 46. |
2133-1951
|
[1] |
LEVER
|
2133-1951A
|
| 46. |
2133-1951A
|
[1] |
LEVER
|
|
| 46. |
2133-1951B
|
[1] |
LEVER
|
|
| 47. |
2195-3323
|
[1] |
BRACKET
|
|
| 48. |
2300-6001
|
[1] |
SUSPENSION
|
2901-1043
|
| 48. |
2300-6004
|
[1] |
SUSPENSION
|
2300-1050
|
| 48. |
2300-1050
|
[1] |
SUSPENSION
|
|
| 49. |
S0560053
|
[4] |
BOLT M10X1.5X125
|
|
| 5. |
S5102703
|
[16] |
WASHER
|
|
| 50. |
2114-1058D1
|
[6] |
WASHER
|
|
| 51. |
2114-1550
|
[4] |
SPACER
|
|
| 52. |
2161-1539A
|
[1] |
STOPPER
|
|
| 53. |
2191-2975
|
[1] |
PLATE;SUB
|
|
| 57. |
S5735591
|
[1] |
PIN;SPLIT
|
|
| 58. |
S4232903
|
[1] |
NUT;CASTLE
|
|
| 59. |
2130-1001
|
[2] |
SPRING;FLUSH
|
|
| 6. |
S5010713
|
[16] |
WASHER;PLAIN
|
|
| 60. |
2116-1010
|
[1] |
PLATE
|
|
| 61. |
2335-1003
|
[1] |
DISC
|
|
| 62. |
2195-2681A
|
[1] |
BRACKET
|
|
| 64. |
2132-1104B
|
[2] |
KNOB
|
|
| 65. |
S3454993
|
[2] |
SCREW M6X1.0X25
|
|
| 66. |
2133-1766
|
[2] |
LEVER
|
|
| 68. |
2160-1004D8
|
[1] |
GROMMET
|
|
| 70. |
2621-4246A
|
[1] |
PLATE
|
2621-4246B
|
| 70. |
2621-4246B
|
[1] |
PLATE
|
|
| 71. |
2191-3428
|
[1] |
PLATE
|
|
| 72. |
2160-1189A
|
[1] |
BOOT
|
120248(D.M)
|
| 74. |
S4012533
|
[1] |
NUT
|
|
| 76. |
2621-2019B
|
[1] |
COVER
|
|
| 77. |
2195-2718B
|
[1] |
STAND;CONTROL
|
|
| 8. |
S3450953
|
[8] |
SCREW
|
|
| 80. |
S4402603
|
[2] |
NUT;CAP
|
|
| 81. |
S6500110
|
[1] |
RING;STOP
|
|
| 82. |
2621-2036B
|
[1] |
COVER
|
|
| 83. |
2114-1059D56
|
[8] |
SHIM
|
|
| 84. |
2114-1059D57
|
[16] |
SHIM
|
|
| 85. |
2160-1253
|
[1] |
RUBBER;BUSHING
|
|
| 9. |
S5102303
|
[51] |
. WASHER
|
|
| 9. |
S5102303
|
[53] |
. WASHER
|
|
