神钢零件查询(BOOM) - ATTACHMENT, (2-PIECE BOOM) SK135SR-1E, SK135SRLC-1E, SK135SRLC-1ES (11/01-12/10) (06-035[00]) - CYLINDER INSTALLATION, JIB, (2-PIECE BOOM), (YY02B00064F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
609 次

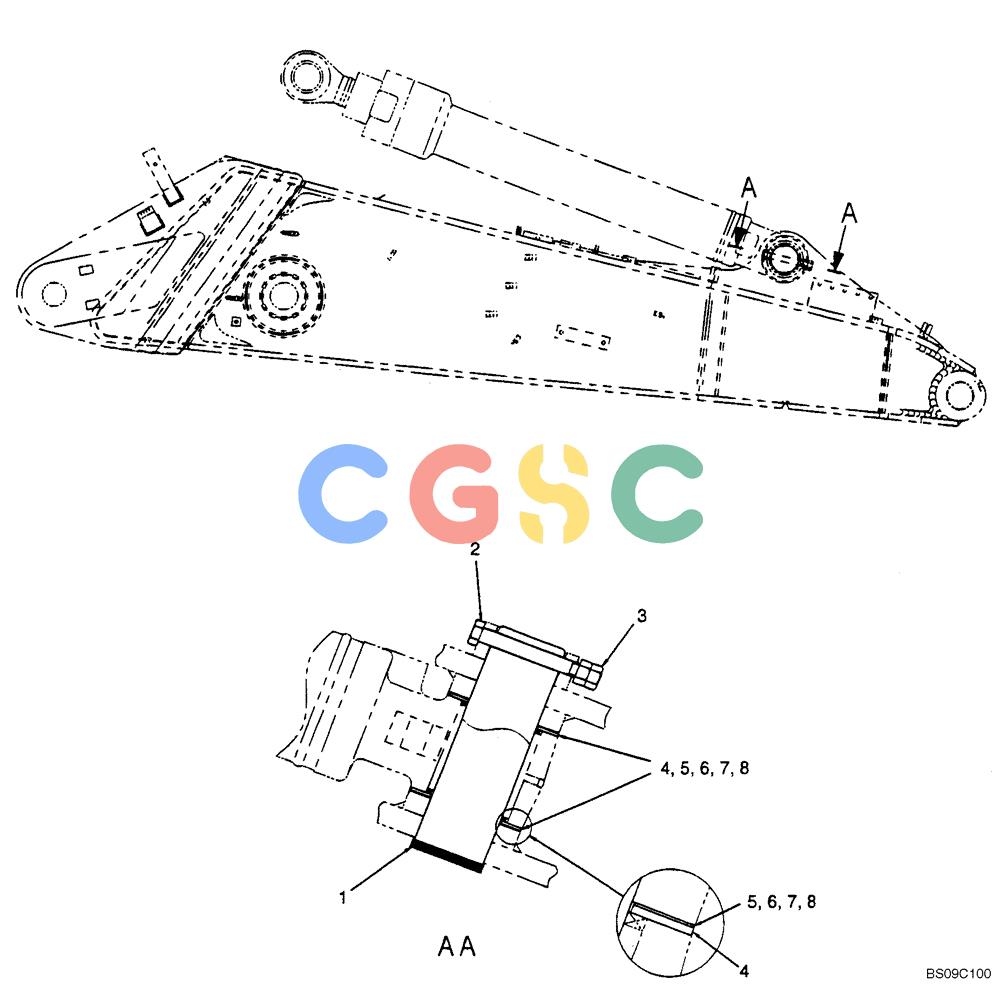

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY02B01061P1 | [1] | PIN | KOBPin |
| 2. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBM16x2.0x140mm |
| 3. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| 4. | LP02B01055P1 | [2] | SHIM,3.0mm Thk | KOB3.0mm |
| 5. | LP02B01056D1 | [2] | SHIM,0.5mm Thk | KOB0.5mm |
| 6. | LP02B01056D2 | [2] | SHIM,0.9mm Thk | KOB0.9mm |
| 7. | LP02B01056D3 | [2] | SHIM,1.2mm Thk | KOB1.2mm |
| 8. | LP02B01056D4 | [2] | SHIM,1.6mm Thk | KOB1.6mm |
