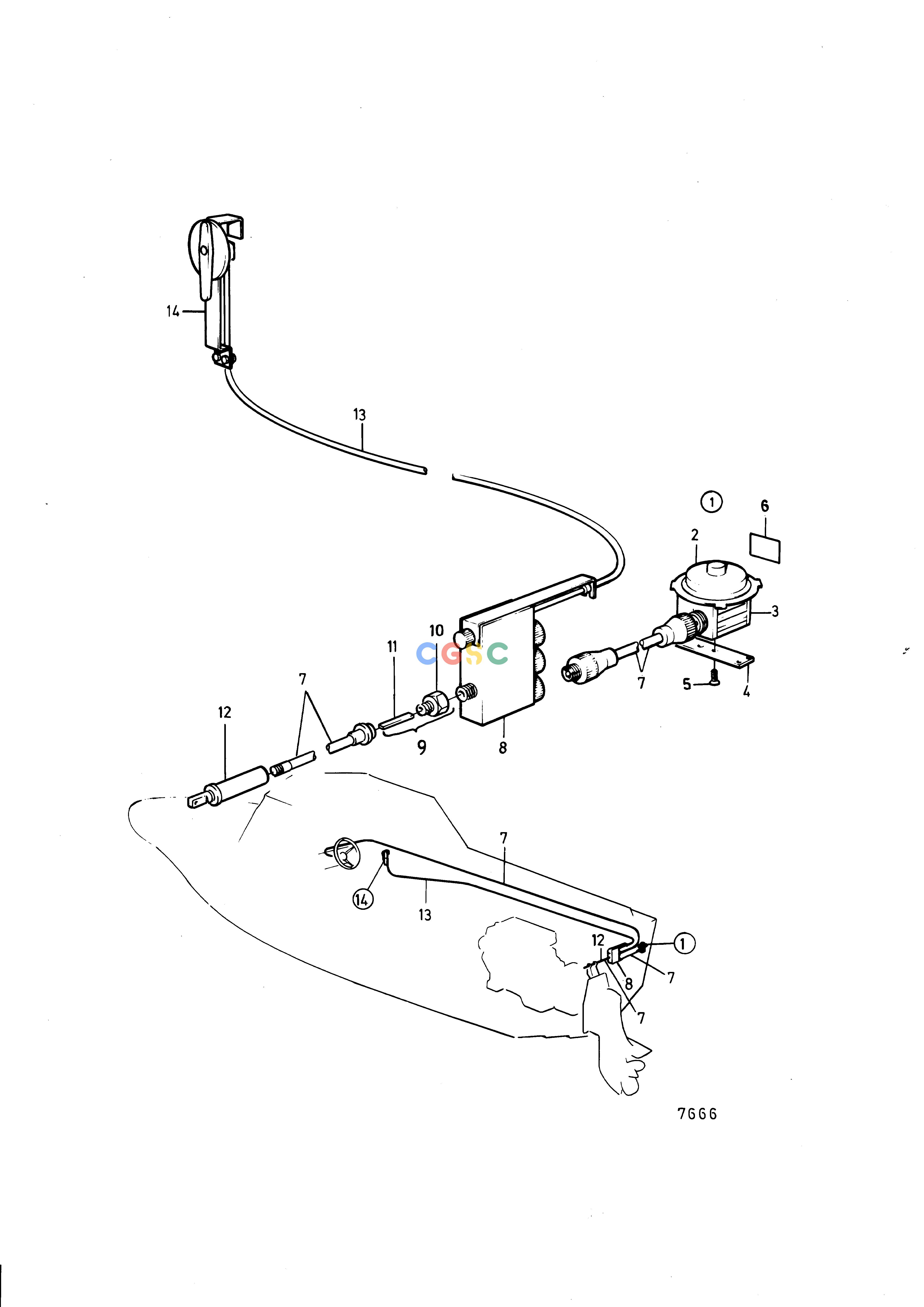

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BSteering SystemDrive Unit, Steering Roto PilotEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852031
|
[1] |
Drive unit
|
|
| 2. |
852032
|
[1] |
Electric motor
|
12V
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
7744060_110
|
|
steering cable
|
|
| 8. |
851743
|
[1] |
Transfer gear
|
|
| 9. |
853107
|
[1] |
Adapter kit
|
|
| 10. |
7744060_111
|
|
Adapter
|
|
| 11. |
853109
|
[1] |
Shaft
|
|
| 12. |
7744060_114
|
|
steering cylinder
|
|
| 13. |
825765
|
[1] |
Choke control
|
L=3300mmalt
|
| 13. |
825764
|
[1] |
Choke control
|
L=6900mmalt
|
| 14. |
851744
|
[1] |
Control
|
|
