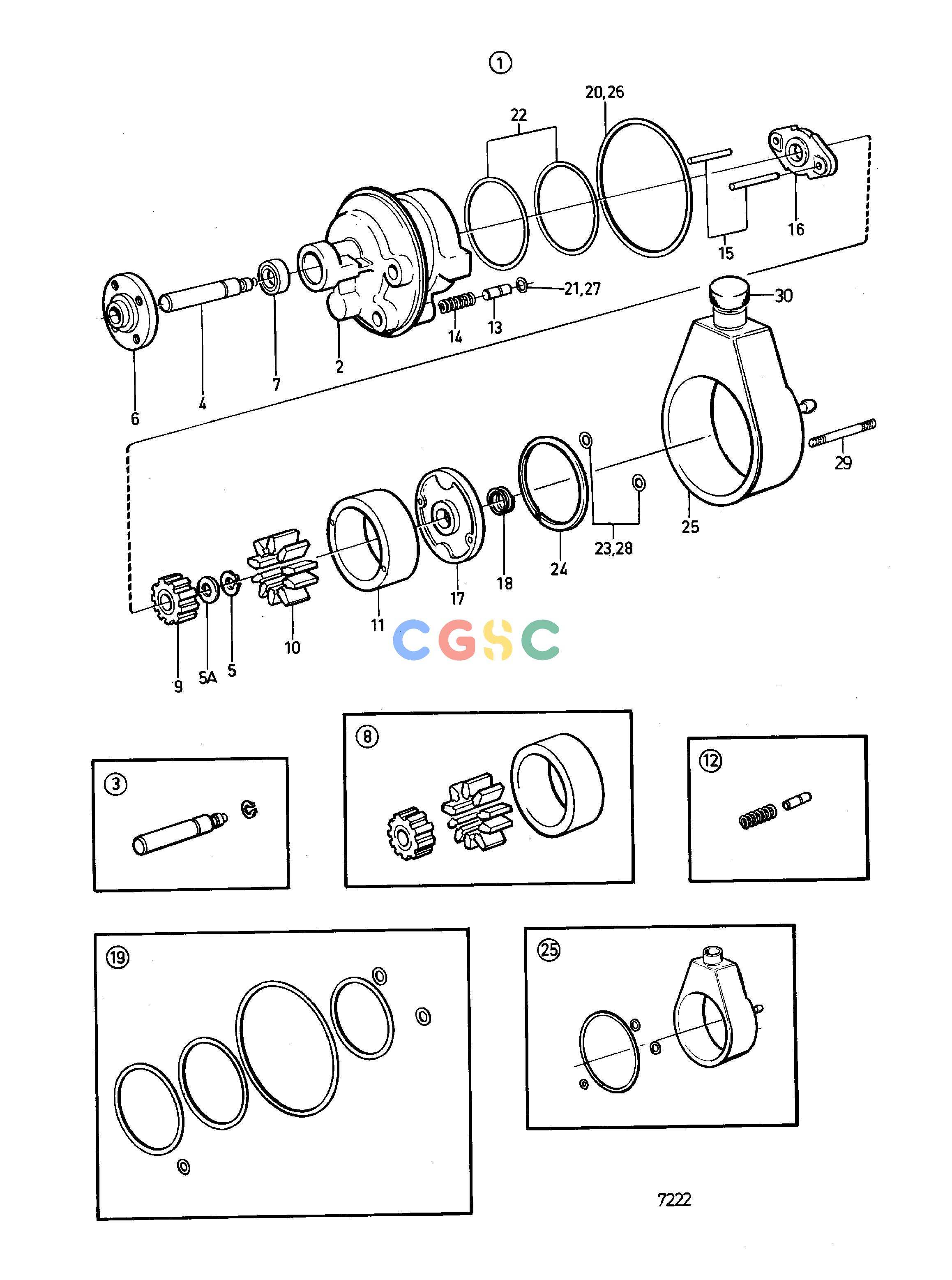

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BSteering SystemHydraulic Pump, Oil ReservoirEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
838310
|
[1] |
Servo pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
273881
|
[1] |
Ring kit
|
|
| 5A. |
1272634
|
[1] |
Adjusting washer
|
TH=0,05mm
|
| 5. |
1272635
|
[1] |
Adjusting washer
|
TH=0.1mm
|
| 5. |
1272636
|
[1] |
Adjusting washer
|
TH=0.2mm
|
| 5. |
1272637
|
[1] |
Adjusting washer
|
TH=0.3mm
|
| 6. |
|
|
|
|
| 7. |
1272412
|
[2] |
Seal
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
273905
|
[1] |
Valve kit
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
1272427
|
[1] |
Pin
|
|
| 16. |
1329586
|
[1] |
Plate
|
|
| 17. |
|
|
|
|
| 18. |
1329589
|
[1] |
Lock ring
|
|
| 19. |
855735
|
[1] |
Sealing kit
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
|
|
|
|
| 23. |
|
|
|
|
| 24. |
1272431
|
[1] |
Lock ring
|
|
| 25. |
855544
|
[1] |
Oil reservoir kit
|
|
| 26. |
|
|
|
|
| 27. |
|
|
|
|
| 28. |
|
|
|
|
| 29. |
855574
|
[2] |
Stud
|
|
| 30. |
1330839
|
[1] |
Cover
|
|
