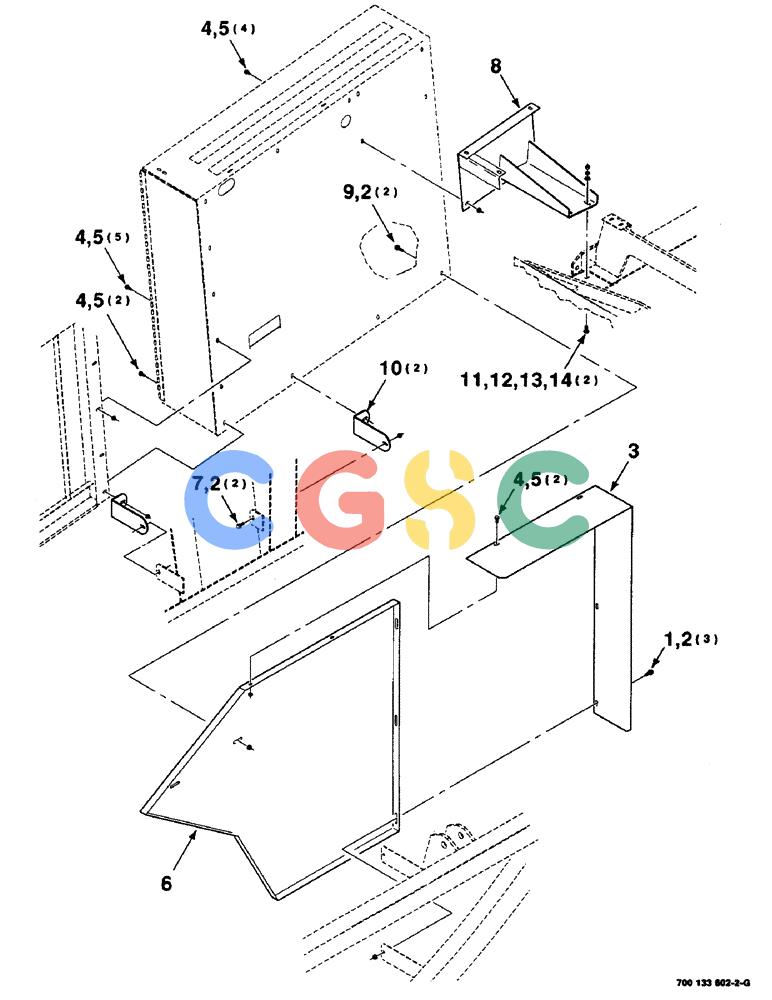

凯斯零件查询(8590) - CASE IH LARGE RECTANGULAR BALER (EUROPE) (1/97-12/98) (7-18) - TWINE BOX SHIELDS ASSEMBLY, RIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
750 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
409-7612
|
[3] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 2. |
231-5146
|
[7] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 3. |
700133713
|
[1] |
SHIELD
|
HFI
|
| 4. |
121-115
|
[13] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 5. |
231-5145
|
[13] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
NUT, Flg, USR, 5/16"-18 Superseded by part number: 72187067, 145458
|
| 6. |
700133712
|
[1] |
SHIELD
|
HFI
- right
|
| 7. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 8. |
700114038
|
[1] |
SUPPORT
|
CAS
WA - right
|
| 9. |
154273C1
|
[2] |
BOLT,Hex Serr, 3/8" - 16 x 1", Spcl
|
IH
3/8-16 X 1 HFSS Superseded by part number: 9706726
|
| 10. |
6844682
|
[2] |
BRACKET
|
CAS
|
| 11. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 12. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 13. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 14. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
