沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BSteering SystemReduction Kit AQ Drive Unit 280EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
937 次

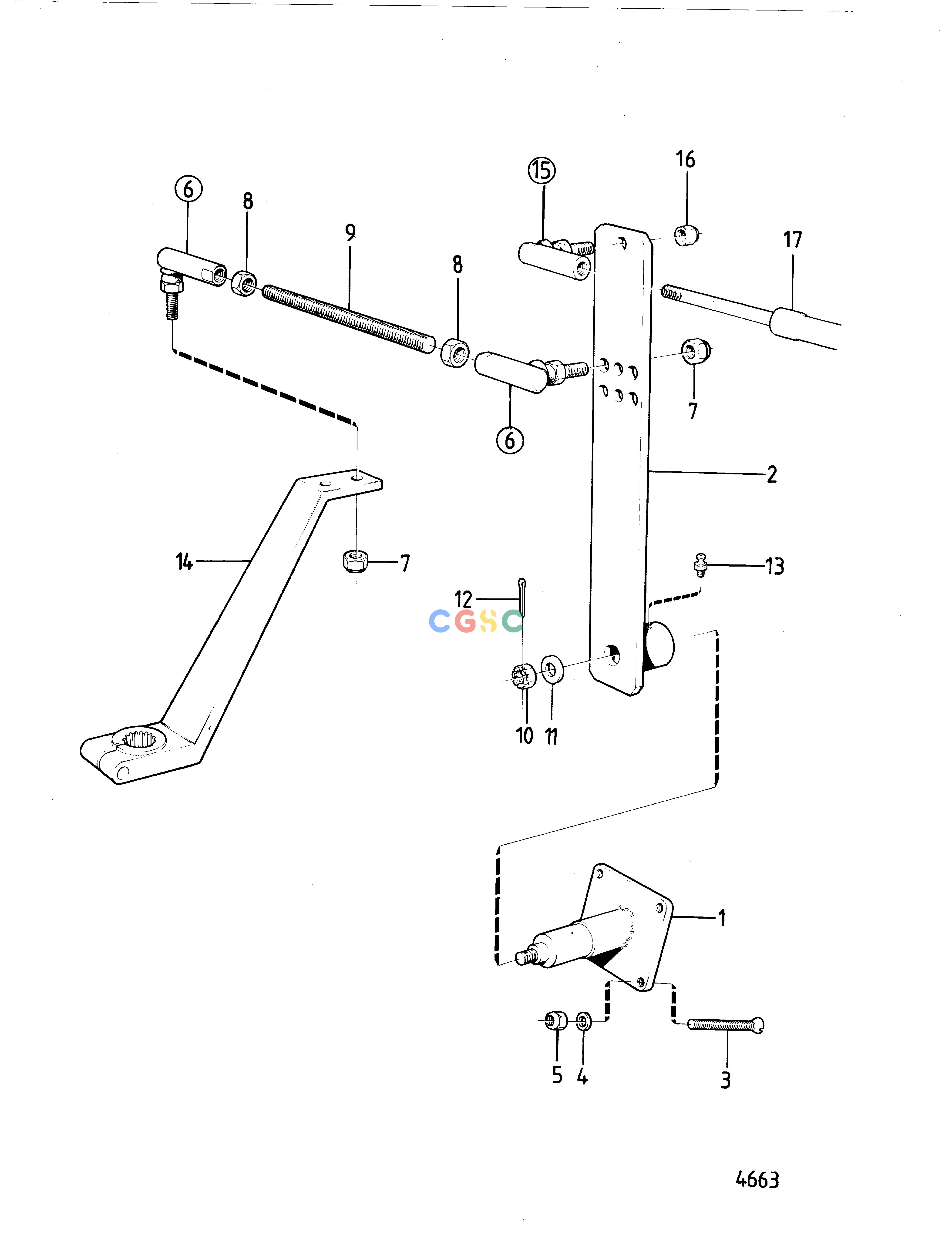

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
897029
|
[1] |
Bracket
|
|
| 2. |
897030
|
[1] |
Steering rod
|
|
| 3. |
804435
|
[4] |
Screw
|
|
| 4. |
955894
|
[4] |
Washer
|
|
| 5. |
950363
|
[4] |
Lock nut
|
|
| 6. |
814152
|
[4] |
Ball joint
|
|
| 7. |
950386
|
[4] |
Lock nut
|
|
| 8. |
940154
|
[4] |
Hexagon nut
|
|
| 9. |
949155
|
[2] |
Rod
|
|
| 10. |
|
|
|
|
| 11. |
955897
|
[1] |
Washer
|
|
| 12. |
907849
|
[1] |
Split pin
|
|
| 13. |
951739
|
[1] |
Lubricating nipple
|
|
| 14. |
|
|
|
See group 4A
|
| 15. |
814152
|
[1] |
Ball joint
|
|
| 16. |
950386
|
[1] |
Lock nut
|
|
| 17. |
|
|
|
|
