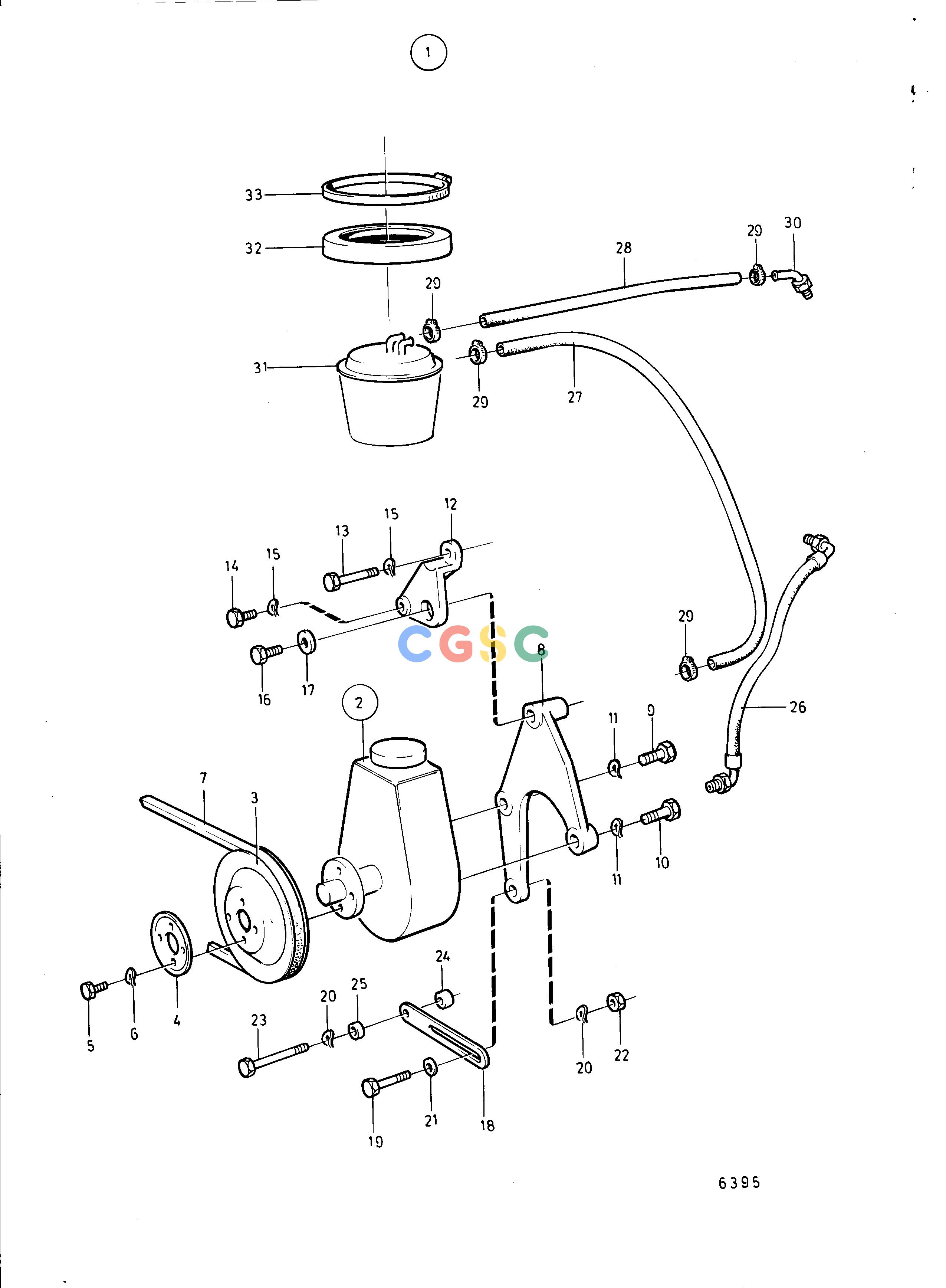

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BSteering SystemServo Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
731 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852455
|
[1] |
Servo pump kit
|
|
| 2. |
1276495
|
[1] |
Pump
|
Repl by 1273595
|
| 2. |
1273595
|
[1] |
Pump
|
Repl by 1273972
|
| 2. |
1273972
|
[1] |
Servo pump
|
|
| 3. |
1219961
|
[1] |
V-belt pulley
|
|
| 4. |
464541
|
[1] |
Washer
|
|
| 5. |
955293
|
[4] |
Hexagon screw
|
|
| 6. |
941907
|
[4] |
Spring washer
|
|
| 7. |
966383
|
[1] |
V-belt
|
(958317)
|
| 8. |
851540
|
[1] |
Bracket
|
|
| 9. |
955318
|
[1] |
Hexagon screw
|
|
| 10. |
955319
|
[1] |
Hexagon screw
|
|
| 11. |
941908
|
[2] |
Spring washer
|
|
| 12. |
843057
|
[1] |
Bracket
|
|
| 13. |
955302
|
[1] |
Hexagon screw
|
|
| 14. |
940129
|
[1] |
Hexagon screw
|
|
| 15. |
941907
|
[2] |
Spring washer
|
|
| 16. |
955701
|
[1] |
Hexagon screw
|
|
| 17. |
955896
|
[1] |
Washer
|
|
| 18. |
807186
|
[1] |
Tensioner
|
|
| 19. |
955298
|
[1] |
Hexagon screw
|
|
| 20. |
941907
|
[2] |
Spring washer
|
|
| 21. |
960141
|
[1] |
Washer
|
|
| 22. |
963106
|
[1] |
Lock nut
|
|
| 23. |
940129
|
[1] |
Hexagon screw
|
|
| 24. |
842350
|
[1] |
Spacer sleeve
|
|
| 25. |
807184
|
[1] |
Spacer sleeve
|
|
| 26. |
851585
|
[1] |
Pressure hose
|
|
| 27. |
838311
|
[1] |
Return hose
|
(1228399) L=630mm
|
| 28. |
838311
|
[1] |
Return hose
|
(1228399) L=1850mm
|
| 29. |
994556
|
[4] |
Hose clamp
|
|
| 30. |
851529
|
[1] |
Hose coupling
|
|
| 31. |
852142
|
[1] |
Oil cooler
|
|
| 32. |
852148
|
[1] |
Ring nut
|
|
| 33. |
949000
|
[1] |
Hose clamp
|
|
