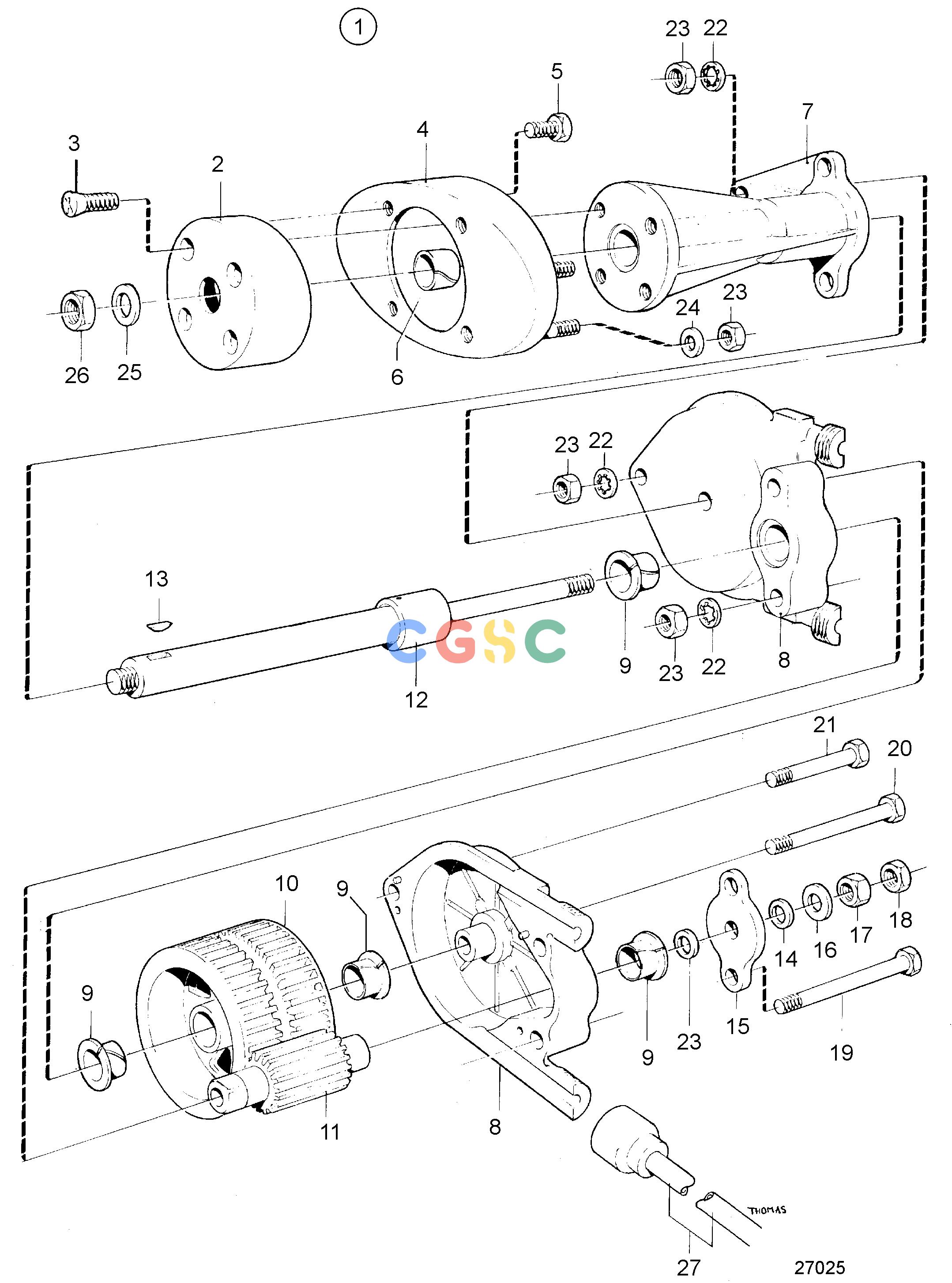

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BSteering SystemSteering HeadEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
850809
|
[1] |
Steering head
|
|
| 2. |
|
|
|
|
| 3. |
941462
|
[4] |
Screw
|
|
| 4. |
|
|
|
|
| 5. |
955655
|
[4] |
Hexagon screw
|
|
| 6. |
839724
|
[1] |
Bushing
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
828155
|
[4] |
Bushing
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
835059
|
[1] |
Key
|
|
| 14. |
839725
|
[2] |
Slide washer
|
|
| 15. |
|
|
|
|
| 16. |
940097
|
[1] |
Washer
|
|
| 17. |
955848
|
[1] |
Hexagon nut
|
|
| 18. |
955858
|
[1] |
Nut
|
|
| 19. |
955670
|
[2] |
Screw
|
|
| 20. |
955668
|
[1] |
Hexagon screw
|
|
| 21. |
955665
|
[1] |
Screw
|
|
| 22. |
955949
|
[4] |
Toothed washer
|
|
| 23. |
955847
|
[8] |
Hexagon nut
|
|
| 24. |
955894
|
[4] |
Washer
|
|
| 25. |
960145
|
[1] |
Washer
|
|
| 26. |
940154
|
[1] |
Hexagon nut
|
|
| 27. |
839727
|
[1] |
Plastic pipe
|
|
