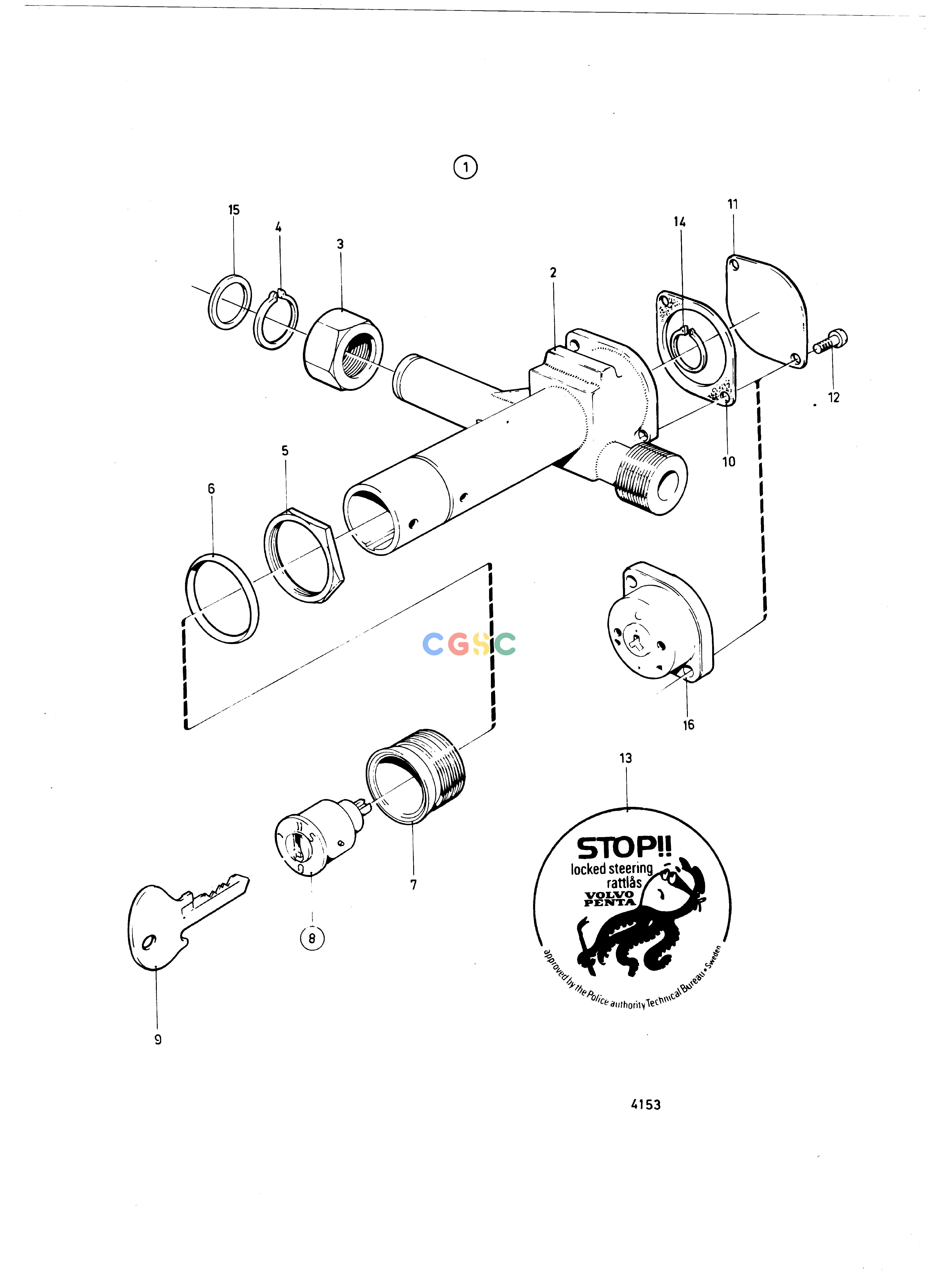

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BSteering SystemSteering Cable LockEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
183 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
839544
|
[1] |
Steering lock
|
|
| 2. |
|
|
|
|
| 3. |
839531
|
[1] |
Nut
|
|
| 4. |
914450
|
[1] |
Snap ring
|
|
| 5. |
832476
|
[1] |
Lock nut
|
|
| 6. |
839523
|
[1] |
Lock ring
|
|
| 7. |
839512
|
[1] |
Lock sleeve
|
|
| 8. |
839532
|
[1] |
Lock cylinder
|
|
| 9. |
831606
|
[1] |
Key
|
Indiquer code de clef quand vous ordez
|
| 10. |
1140051
|
[1] |
Gasket
|
(839543)
|
| 11. |
839542
|
[1] |
Protecting cover
|
|
| 12. |
956060
|
[2] |
Cross recessed screw
|
|
| 13. |
|
|
|
|
| 14. |
914448
|
[1] |
Snap ring
|
|
| 15. |
850221
|
[2] |
Washer
|
|
| 16. |
839492
|
[1] |
Plate
|
|
