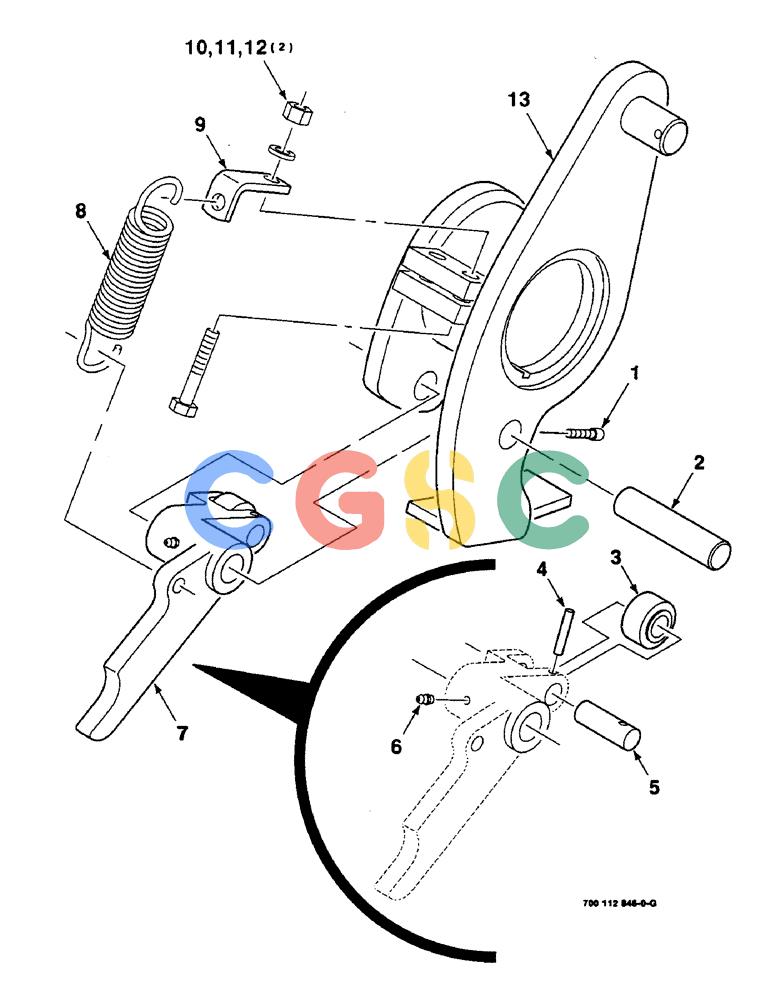

凯斯零件查询(8590) - CASE IH LARGE RECTANGULAR BALER (EUROPE) (1/97-12/98) (5-08) - CLUTCH DOG ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1012 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
178-244
|
[1] |
SET SCREW,Hex Soc, 5/16"-18 x 3/4"
|
CAS
5/16-18 X 3/4 HDPHSSS Superseded by part number: 80432
|
| 2. |
700112858
|
[1] |
PIN
|
CAS
SHAFT - clutch
|
| 3. |
700112856
|
[1] |
NEEDLE ROLLER
|
CAS
ROLLER
|
| 4. |
38-11624
|
[1] |
LOCK PIN,1/4" x 1 1/2", Slotted
|
CAS
PIN, 1/4" x 1 1/2", Slotted Superseded by part number: 87406
|
| 5. |
700112857
|
[1] |
SHAFT
|
CAS
- clutch
|
| 6. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 7. |
700124058
|
[2] |
ARM
|
CAS
ASSEMBLY - clutch (Includes Ref: 3, 4, 5 and 6)
|
| 8. |
758268
|
[1] |
SPRING
|
CAS
- extension
|
| 9. |
700112859
|
[1] |
SUPPORT
|
CAS
- spring
|
| 10. |
413-840
|
[2] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
1/2-13 X 2-1/2 C Superseded by part number: 87972
|
| 11. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 12. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 13. |
700112887
|
[1] |
ARM
|
CAS
WA - clutch, left
|
