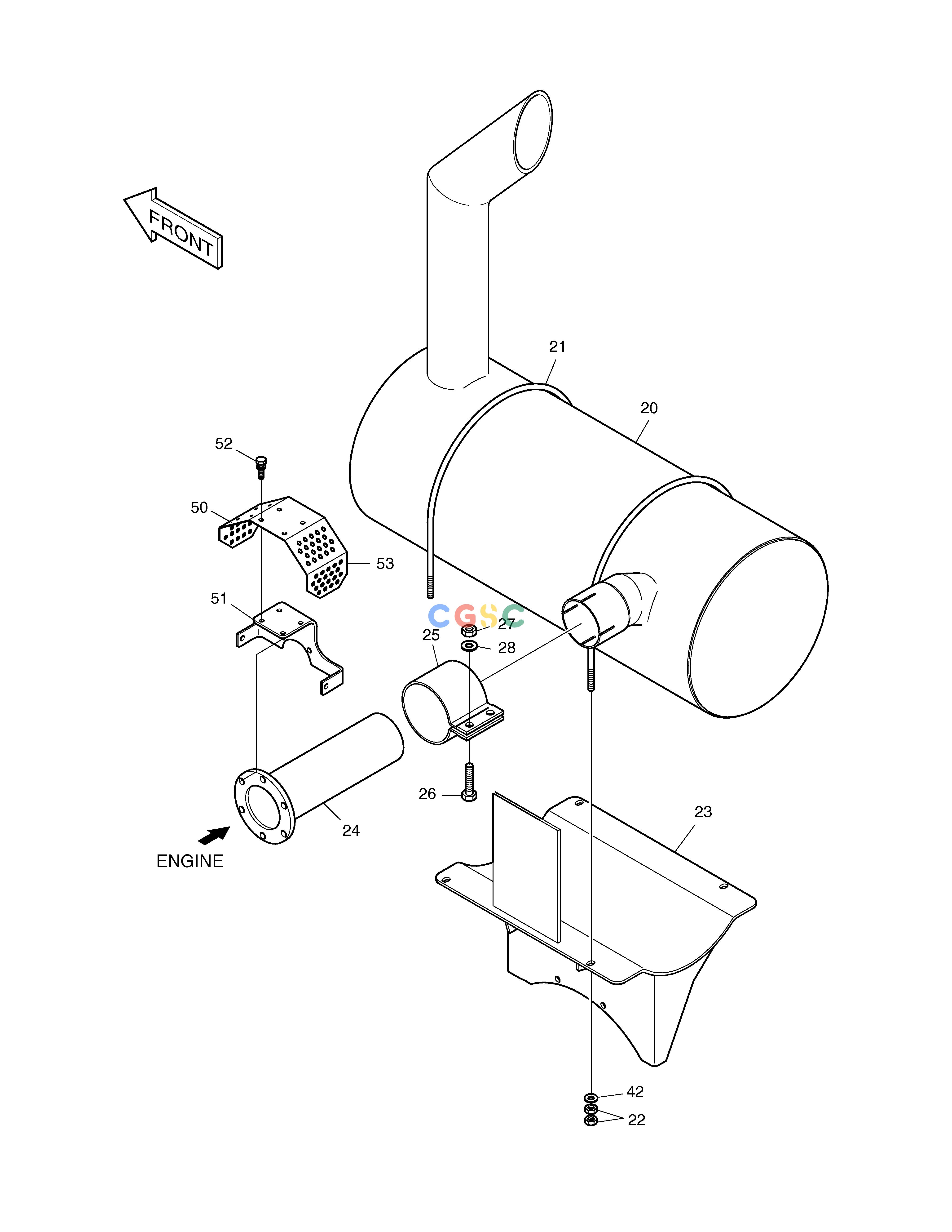

斗山零件查询MUFFLER SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002249
|
[-] |
ENGINE ASS'Y
|
|
| 20. |
2203-1701A
|
[1] |
MUFFLER
|
|
| 21. |
2120-2135A
|
[2] |
BOLT;U
|
|
| 22. |
S4012633
|
[8] |
NUT
|
|
| 23. |
2197-1459E
|
[1] |
BRACKET;MUFFLER
|
|
| 24. |
2182-1573C
|
[1] |
PIPE;EXHAUST
|
|
| 25. |
2124-1592A
|
[1] |
CLAMP
|
|
| 26. |
S0515353
|
[2] |
BOLT M12X1.75X35
|
|
| 27. |
S4012733
|
[2] |
NUT
|
|
| 28. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 42. |
S5010613
|
[4] |
WASHER
|
|
| 50. |
621-02364
|
[1] |
COVER
|
|
| 51. |
195-02320
|
[1] |
BRACKET
|
|
| 52. |
120-00276
|
[6] |
BOLT M8X1.25X12
|
|
| 53. |
621-02363
|
[1] |
COVER
|
|
