斗山零件查询OIL COOLER PIPING(1) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
527 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1768B
|
[-] |

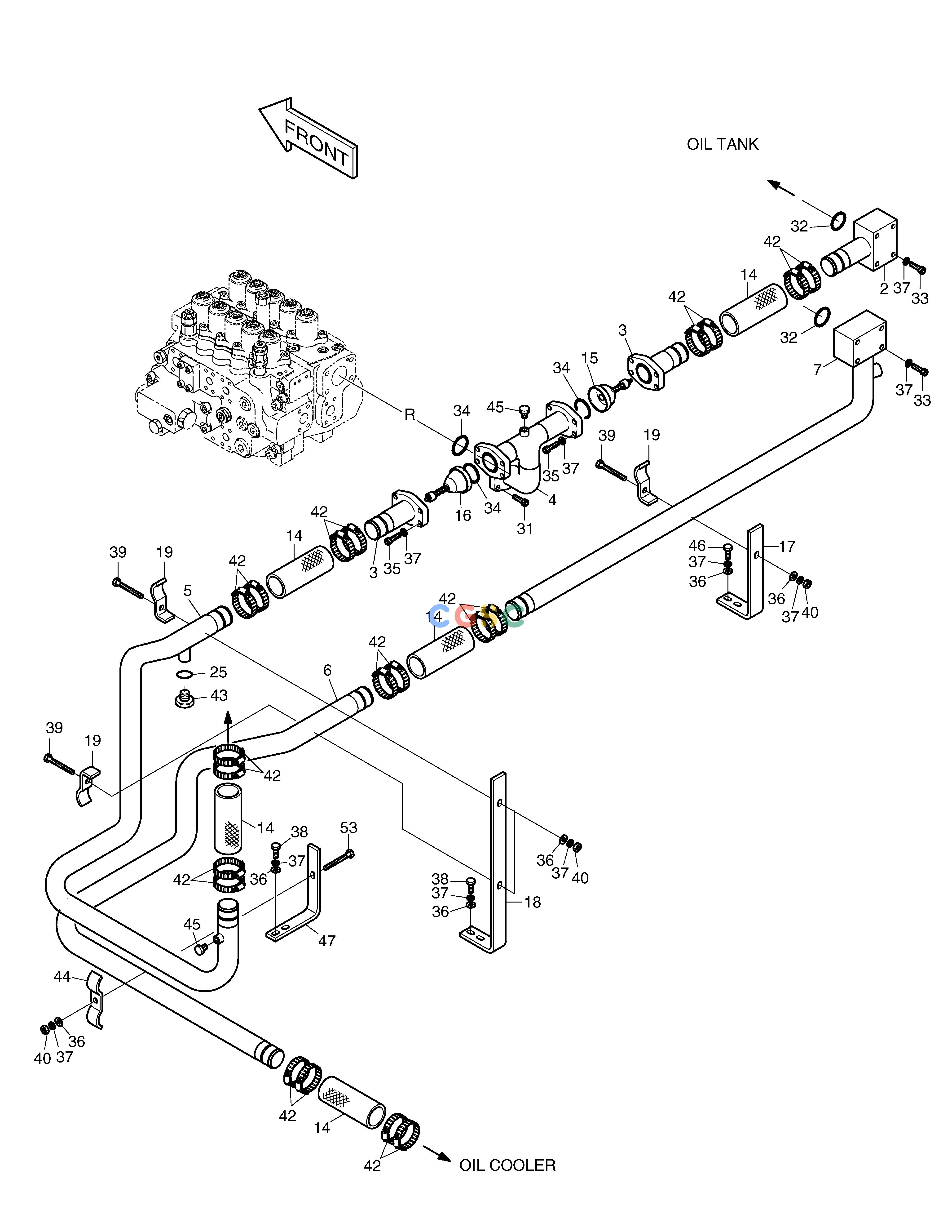

OIL COOLER PIPING
|
|
| 14. |
2185-1776D2
|
[5] |
HOSE 200L
|
|
| 15. |
2420-1125B
|
[1] |
VALVE;BY-PASS 4.5K
|
|
| 16. |
2420-1124B
|
[1] |
VALVE;BY-PASS
|
|
| 17. |
2891-1093A
|
[1] |
PLATE
|
|
| 18. |
2197-1458A
|
[1] |
BRACKET
|
|
| 19. |
2124-1224D2
|
[3] |
CLAMP;PIPE
|
|
| 2. |
2140-1186A
|
[1] |
PIPE
|
|
| 25. |
S8000291
|
[1] |
O-RING
|
|
| 3. |
2140-1185A
|
[2] |
PIPE
|
|
| 31. |
S2215361
|
[4] |
BOLT;SOCKET M12X1.75X35
|
|
| 32. |
2180-1026D28
|
[2] |
O-RING
|
|
| 33. |
S0561253
|
[8] |
BOLT M12X1.75X75
|
|
| 34. |
2180-1026D27
|
[3] |
O-RING
|
|
| 35. |
S0560953
|
[8] |
BOLT M12X1.75X60
|
|
| 36. |
S5010713
|
[10] |
WASHER;PLAIN
|
|
| 37. |
S5102703
|
[26] |
WASHER
|
|
| 38. |
S0560453
|
[4] |
BOLT M12X1.75X35
|
|
| 39. |
S0561353
|
[3] |
BOLT M12X1.75X80
|
|
| 4. |
2140-1184A
|
[1] |
PIPE
|
|
| 40. |
S4012733
|
[4] |
NUT
|
|
| 42. |
S8450053
|
[20] |
CLAMP;HOSE
|
|
| 43. |
2181-1950D9
|
[1] |
PLUG
|
|
| 44. |
2124-1340D6
|
[1] |
CLAMP;PIPE
|
|
| 45. |
2181-2047A
|
[2] |
PLUG
|
|
| 46. |
S0515253
|
[2] |
. BOLT
|
|
| 47. |
2891-1367A
|
[1] |
PLATE
|
|
| 5. |
2140-1249A
|
[1] |
PIPE
|
|
| 53. |
S0561553
|
[1] |
BOLT M12X1.75X90
|
|
| 6. |
2140-1250A
|
[1] |
PIPE
|
|
| 7. |
2140-1187A
|
[1] |
PIPE
|
|
