| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

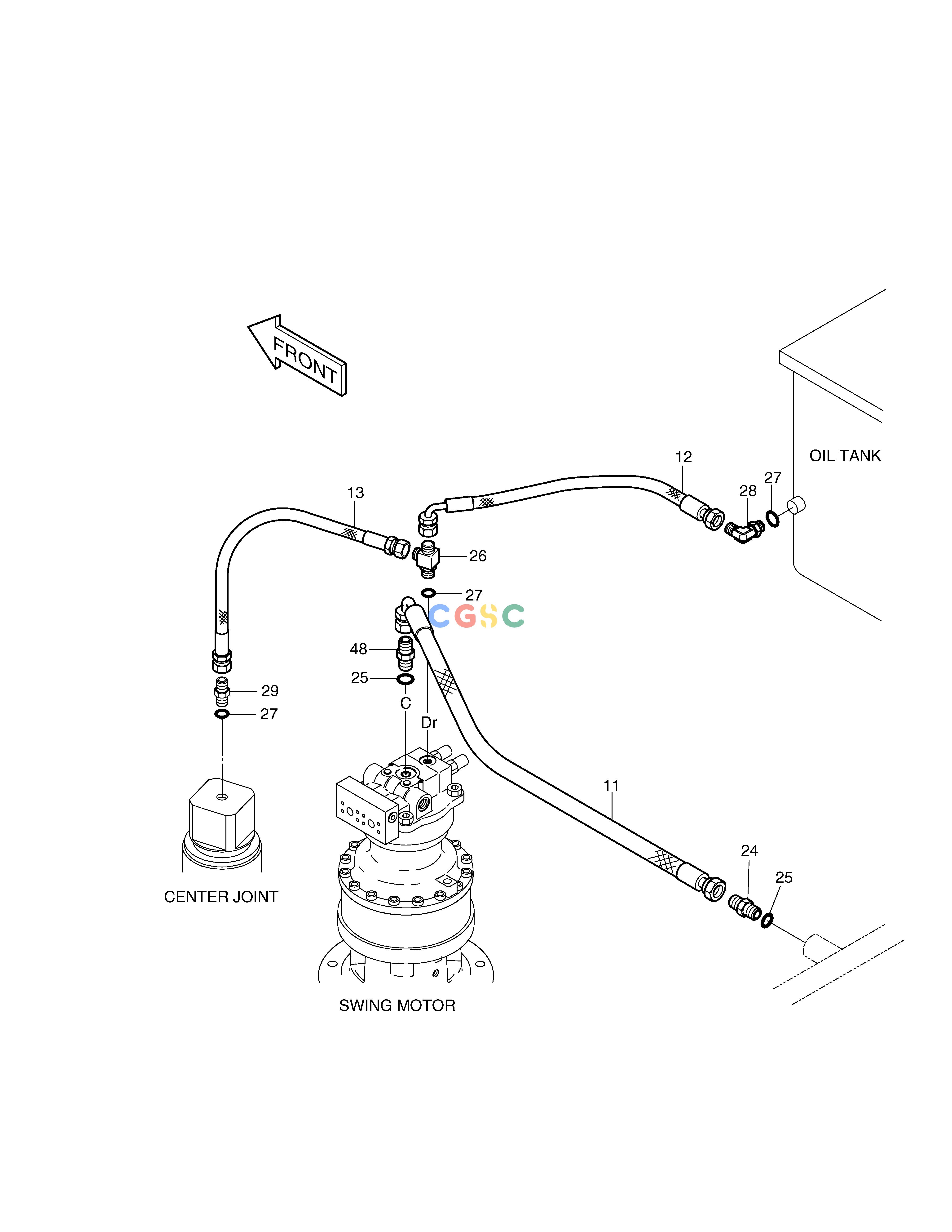

| -. | 2400-1768B | [-] | OIL COOLER PIPING | |
| 11. | 2184-1036D80 | [1] | HOSE PF1-710L | |
| 12. | 2184-1036D19 | [1] | HOSE PF1/2-750L | |
| 13. | 2184-1026D280 | [1] | HOSE | |
| 24. | 2181-1126D25 | [1] | ADAPTER | |
| 25. | S8000291 | [1] | O-RING | |
| 26. | 2181-1951D5 | [1] | TEE | |
| 27. | S8000181 | [2] | O-RING | |
| 28. | 2181-1702D2 | [1] | ELBOW | |
| 29. | 2181-1126D83 | [1] | ADAPTER | |
| 48. | 2181-1951D25 | [1] | TEE |
