斗山零件查询PILOT PIPING(1) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002257
|
[-] |

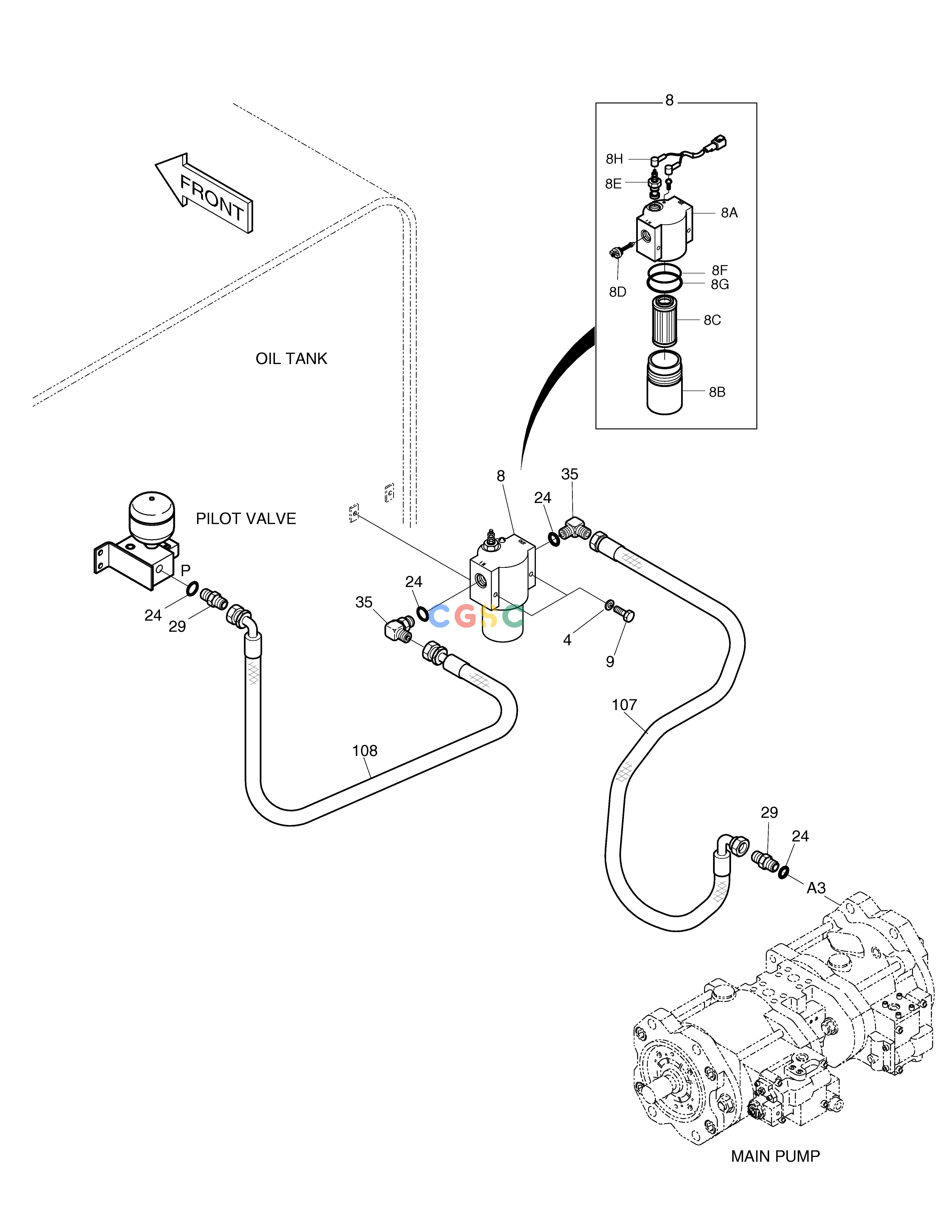

PILOT PIPING
|
|
| 107. |
2184-1036D43
|
[1] |
HOSE PF1/2-550L
|
|
| 108. |
2184-1036D286
|
[1] |
HOSE PF1/2-360L
|
|
| 24. |
S8000181
|
[4] |
O-RING
|
|
| 29. |
2181-1126D6
|
[2] |
ADAPTER
|
|
| 35. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 4. |
S5102303
|
[2] |
. WASHER
|
|
| 8. |
471-00075A
|
[1] |
FILTER;PILOT
|
|
| 8A. |
NA00509
|
[1] |
. HEAD
|
|
| 8B. |
2472-7003
|
[1] |
CASE
|
|
| 8C. |
2471-1154
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 8D. |
2426-1237
|
[1] |
VALVE;BY-PASS
|
|
| 8E. |
2471-1155A
|
[1] |
INDICATOR
|
|
| 8F. |
Y-3738-04
|
[1] |
O-RING
|
|
| 8G. |
Y-3738-05
|
[1] |
RING;BACK UP
|
|
| 8H. |
530-00236
|
[1] |
HARNESS;PILOT FILTER
|
|
| 9. |
S0553753
|
[2] |
BOLT
|
|
