斗山零件查询PILOT PIPING(2) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002257
|
[-] |

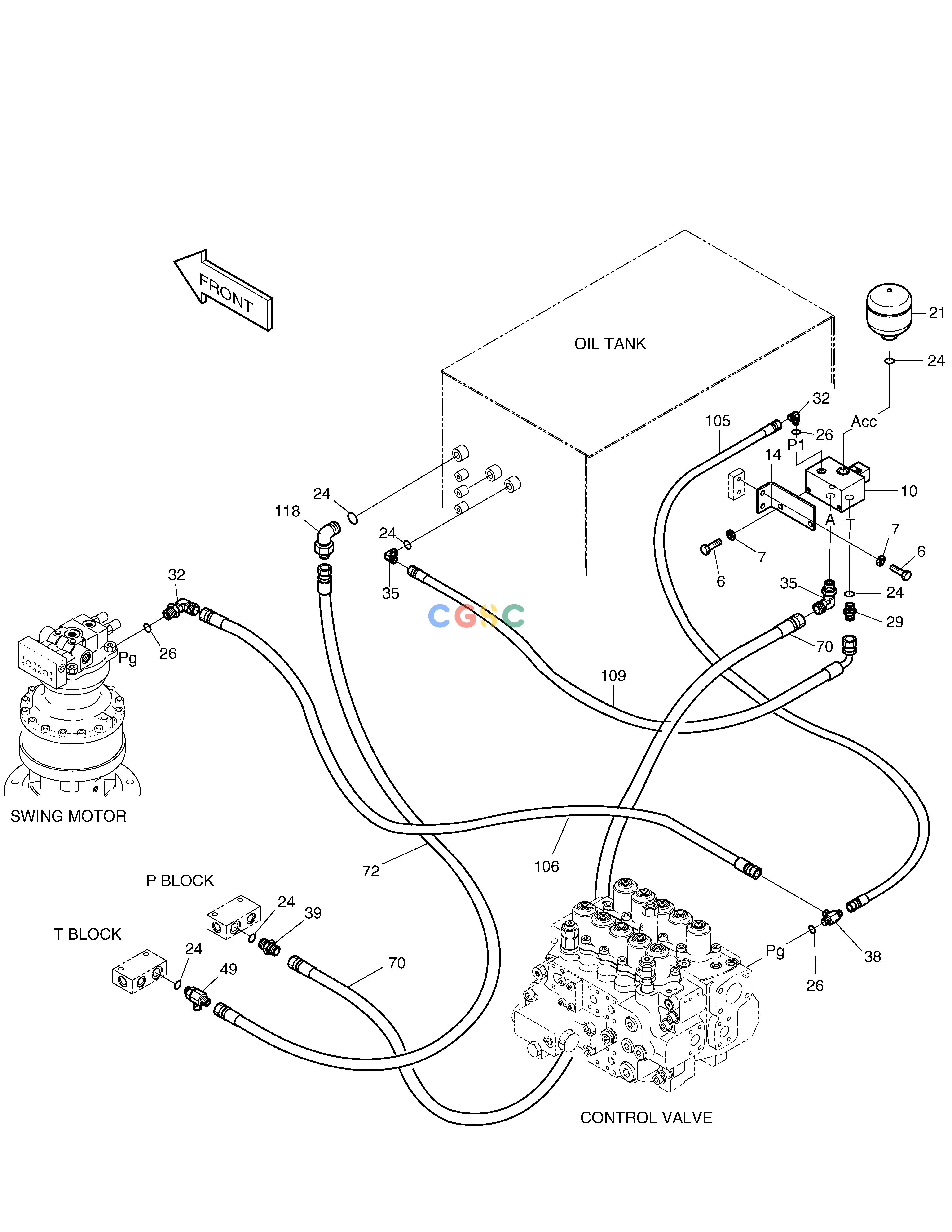

PILOT PIPING
|
|
| 10. |
2426-9039C
|
[1] |
VALVE;PILOT
|
|
| 105. |
2184-1045D48
|
[1] |
HOSE
|
|
| 106. |
2184-1045D158
|
[1] |
HOSE PF1/4-650L
|
|
| 109. |
2184-1036D160
|
[1] |
HOSE PF1/2-1050L
|
|
| 118. |
2181-2419D3
|
[1] |
ELBOW
|
|
| 14. |
2891-1244A
|
[1] |
PLATE
|
|
| 21. |
2460-9057A
|
[1] |
ACCUMULATOR
|
|
| 24. |
S8000181
|
[7] |
O-RING
|
|
| 26. |
S8000111
|
[3] |
O-RING
|
|
| 29. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 32. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 35. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 38. |
2181-1951D1
|
[1] |
TEE
|
|
| 39. |
2471-1135
|
[1] |
FILTER
|
|
| 49. |
2181-1951D13
|
[1] |
TEE
|
|
| 6. |
S0512053
|
[4] |
BOLT
|
|
| 7. |
S5102603
|
[4] |
. WASHER
|
|
| 70. |
2184-1026D392
|
[1] |
HOSE PF1/2-3300L
|
|
| 72. |
2184-1026D273
|
[1] |
HOSE PF1/2-3000L
|
|
