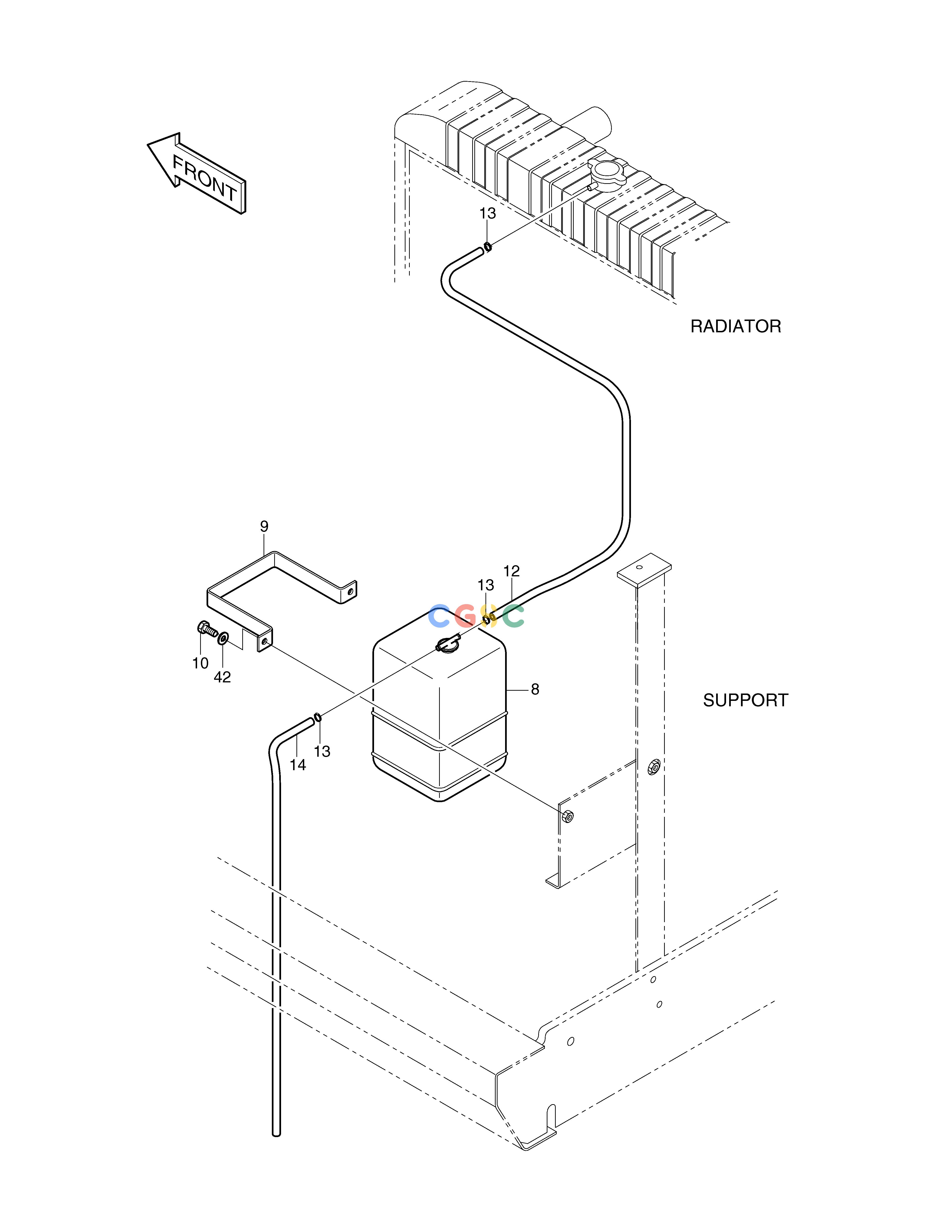

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1002249 | [-] | ENGINE ASS'Y | |
| 10. | S0511753 | [2] | BOLT M10X1.5X18 | |
| 12. | 2185-9072 | [1] | HOSE 1350L | |
| 13. | S8450006 | [3] | CLAMP | |
| 14. | 2184-1053 | [1] | HOSE;VINYL φ7 | |
| 42. | S5010613 | [2] | WASHER | |
| 8. | K1003180A | [1] | TANK;RESERVE | |
| 9. | 2124-1244 | [1] | CLAMP |
