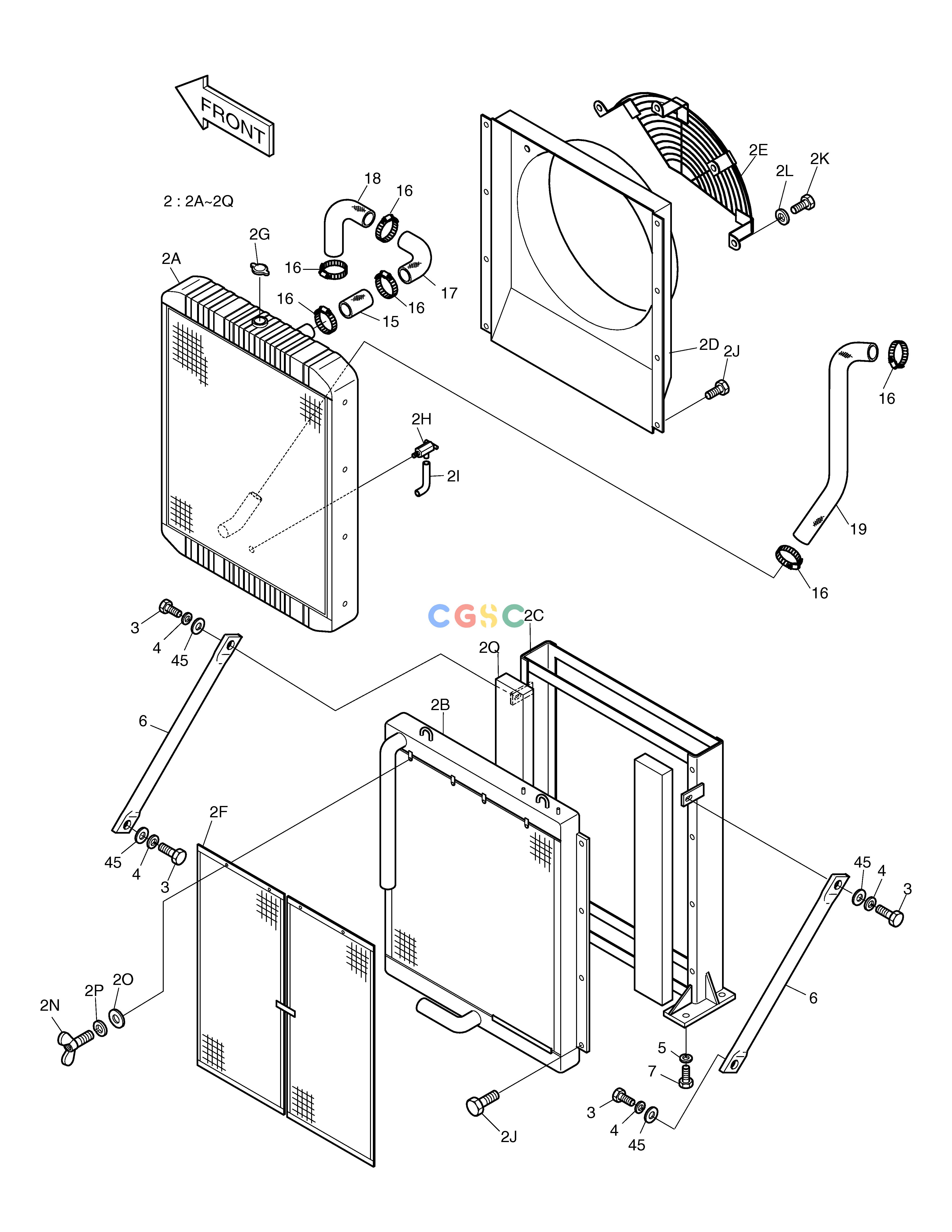

斗山零件查询RADIATOR SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
850 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002249
|
[-] |
ENGINE ASS'Y
|
|
| 15. |
2185-1316
|
[1] |
HOSE;WATER
|
|
| 16. |
S8450053
|
[6] |
CLAMP;HOSE
|
|
| 17. |
2182-1574
|
[1] |
PIPE;WATER
|
|
| 18. |
2185-1644
|
[1] |
HOSE;WATER
|
|
| 19. |
2185-1643A
|
[1] |
HOSE;WATER
|
|
| 2. |
2202-9061E
|
[1] |
RADIATOR ASS'Y
|
|
| 2A. |
202-00029
|
[1] |
. RADIATOR
|
|
| 2B. |
2202-9061A-02
|
[1] |
. OIL COOLER
|
|
| 2C. |
600-00038
|
[1] |
. FRAME
|
|
| 2D. |
142-00030
|
[1] |
. FAN GUARD
|
|
| 2E. |
205-00020
|
[1] |
. SHROUD
|
|
| 2F. |
126-00001
|
[2] |
. WIRE NET
|
|
| 2G. |
910-00013
|
[1] |
. CAP
|
|
| 2H. |
186-00004
|
[1] |
. DRAIN COCK
|
|
| 2I. |
184-00033
|
[1] |
. HOSE
|
|
| 2J. |
S0512061
|
[28] |
. BOLT M10X1.5X25
|
|
| 2K. |
S0555753
|
[5] |
BOLT M8X1.25X25
|
|
| 2L. |
S5010503
|
[5] |
WASHER
|
|
| 2N. |
S3055451
|
[4] |
. BOLT
|
|
| 2O. |
S5010303
|
[4] |
WASHER
|
|
| 2P. |
S5100303
|
[4] |
WASHER
|
|
| 2Q. |
161-00092
|
[2] |
. SPONGE
|
|
| 3. |
S0565066
|
[4] |
BOLT M16X2.0X40
|
|
| 4. |
S5102903
|
[4] |
WASHER
|
|
| 45. |
S5010913
|
[4] |
WASHER
|
|
| 5. |
2114-1816A
|
[4] |
WASHER
|
|
| 6. |
2145-1244A
|
[2] |
STAY
|
|
| 7. |
S0565166
|
[4] |
BOLT M16X2.0X45
|
|
