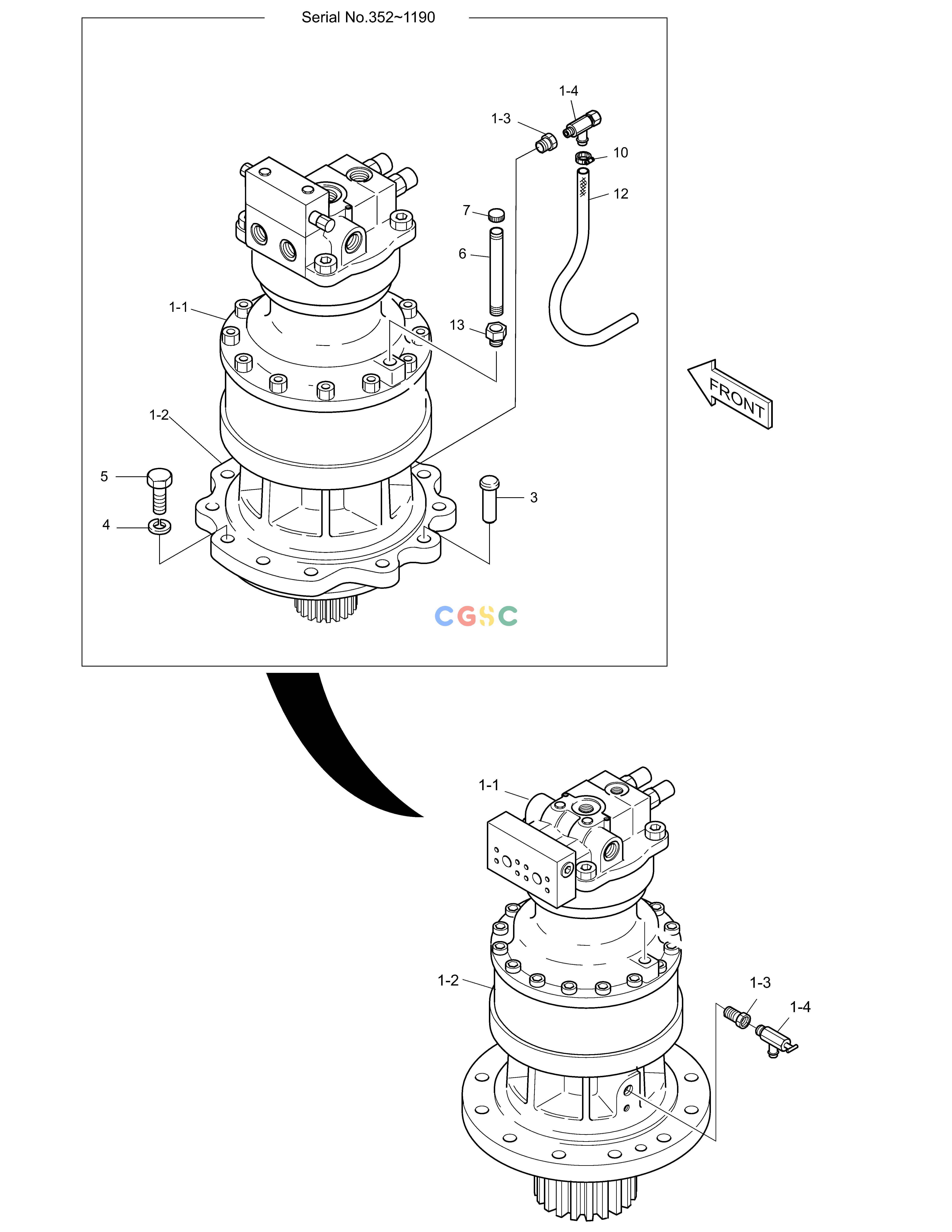

斗山零件查询SWING DEVICE ASS'Y SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2401-1223B
|
[-] |
SWING DEVICE ASS'Y
|
|
| 1. |
2401-1269N
|
[1] |
SWING DEVICE SUB ASS'Y
|
|
| 1-1. |
401-00086B
|
[1] |
MOTOR;SWING
|
|
| 1-2. |
2404-1063J
|
[1] |
GEAR;REDUCTION
|
|
| 1-3. |
2181-1113D2
|
[1] |
REDUCER
|
|
| 1-4. |
186-00013
|
[1] |
. COCK
|
|
| 10. |
S8450012
|
[1] |
CLAMP
|
|
| 12. |
184-00016
|
[1] |
HOSE
|
|
| 13. |
2181-1913D24
|
[1] |
REDUCER
|
|
| 3. |
2123-4030
|
[1] |
PIN;LOCK
|
|
| 4. |
2114-9012A
|
[11] |
WASHER
|
|
| 5. |
S0570166
|
[11] |
BOLT M20X2.5X65
|
|
| 6. |
2182-1662
|
[1] |
PIPE
|
|
| 7. |
2119-1063A
|
[1] |
CAP
|
|
