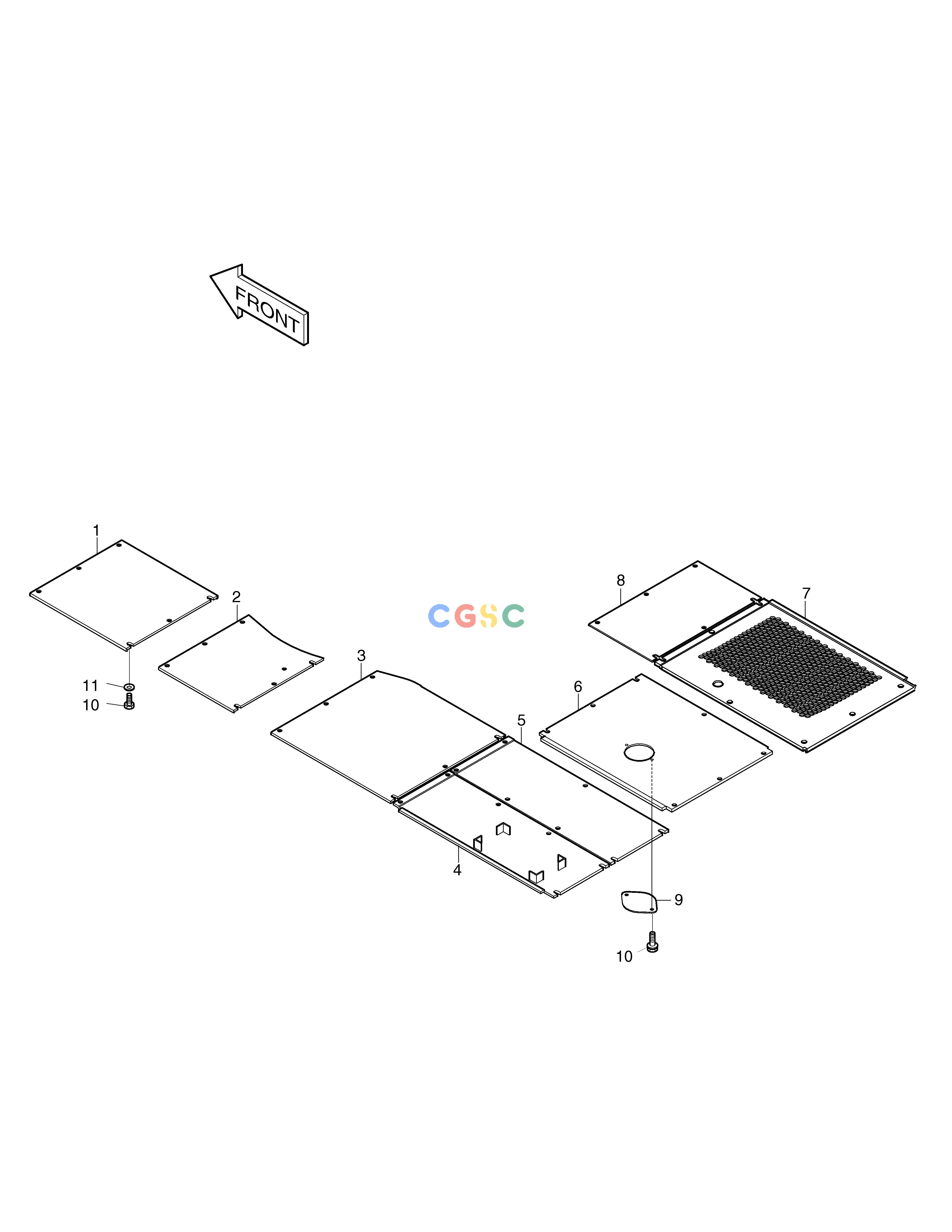

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | C621-00129 | [1] | UNDER COVER ASS'Y | |
| 1. | 2621-3458A | [1] | COVER | |
| 10. | 2120-2196D13 | [51] | BOLT;SET M10X1.5X25 | |
| 11. | 2114-1058D10 | [51] | WASHER | |
| 2. | 2621-3442B | [1] | COVER | |
| 3. | 2621-3447A | [1] | COVER | |
| 4. | 2621-3865 | [1] | COVER | |
| 5. | 2621Y3866-A | [1] | COVER | |
| 6. | 2621Y3590B-A | [1] | COVER | |
| 7. | 2627-1701A | [1] | COVER | |
| 8. | 2621-3587A | [1] | COVER | |
| 9. | 2621-3036 | [1] | COVER |
