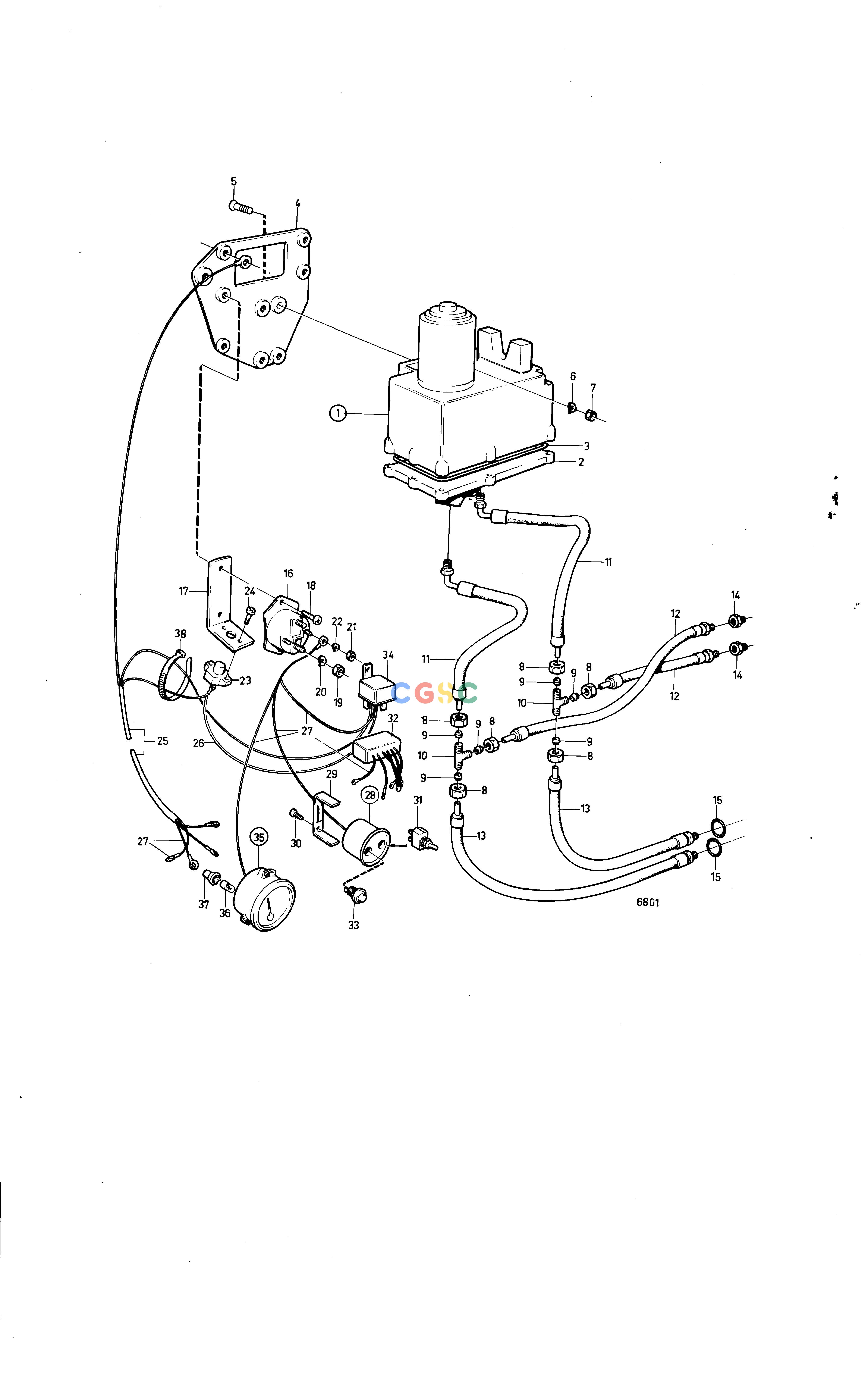

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsHydraulic Pump with Install. Comps Later ProdEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
989 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852500
|
[1] |
Hydraulic pump
|
|
| 2. |
852563
|
[1] |
Pump unit
|
|
| 3. |
852564
|
[1] |
Sealing ring
|
|
| 4. |
852568
|
[1] |
Bracket
|
|
| 5. |
950161
|
[4] |
Cross recessed sunk
|
L=32mm
|
| 6. |
941906
|
[4] |
Spring washer
|
|
| 7. |
955826
|
[4] |
Hexagon nut
|
|
| 8. |
941521
|
[9] |
Fitting nut
|
|
| 9. |
956967
|
[6] |
Ferrule
|
|
| 9. |
964086
|
[3] |
Plug
|
|
| 10. |
964034
|
[2] |
T-nipple
|
|
| 11. |
852504
|
[2] |
Hose coupling
|
|
| 12. |
850909
|
[2] |
Hose
|
|
| 13. |
850908
|
[2] |
Hose
|
|
| 14. |
851042
|
[2] |
Nipple
|
|
| 15. |
941820
|
[2] |
O-ring
|
|
| 16. |
852565
|
[2] |
Relay
|
|
| 17. |
850905
|
[1] |
Bracket
|
|
| 18. |
950046
|
[3] |
Cross recessed screw
|
|
| 19. |
955834
|
[4] |
Hexagon nut
|
|
| 20. |
941907
|
[4] |
Spring washer
|
|
| 21. |
955844
|
[4] |
Hexagon nut
|
|
| 22. |
941905
|
[4] |
Spring washer
|
|
| 23. |
841178
|
[1] |
Automatic fuse
|
|
| 24. |
950013
|
[2] |
Cross recessed screw
|
|
| 25. |
852191
|
[1] |
Cable block
|
|
| 26. |
852192
|
[1] |
Cable block
|
|
| 27. |
|
|
|
|
| 28. |
850989
|
[1] |
Instrument panel
|
USA
|
| 28. |
851871
|
[1] |
Instrument panel
|
(851501) excl USA
|
| 29. |
850372
|
[1] |
Attaching brace
|
|
| 30. |
944201
|
[2] |
Cross recessed screw
|
|
| 31. |
814322
|
[1] |
Toggle switch
|
|
| 32. |
851870
|
[1] |
Trim limiter
|
(851771)
|
| 33. |
852026
|
[1] |
Switch
|
|
| 34. |
876040
|
[1] |
Relay kit
|
|
| 35. |
851502
|
[1] |
Trimming indicator
|
Included only in 851501., Excl USA
|
| 36. |
192451
|
[1] |
Bulb
|
|
| 37. |
841954
|
[1] |
Bulb socket
|
|
| 38. |
948210
|
[1] |
Cable tie
|
|
