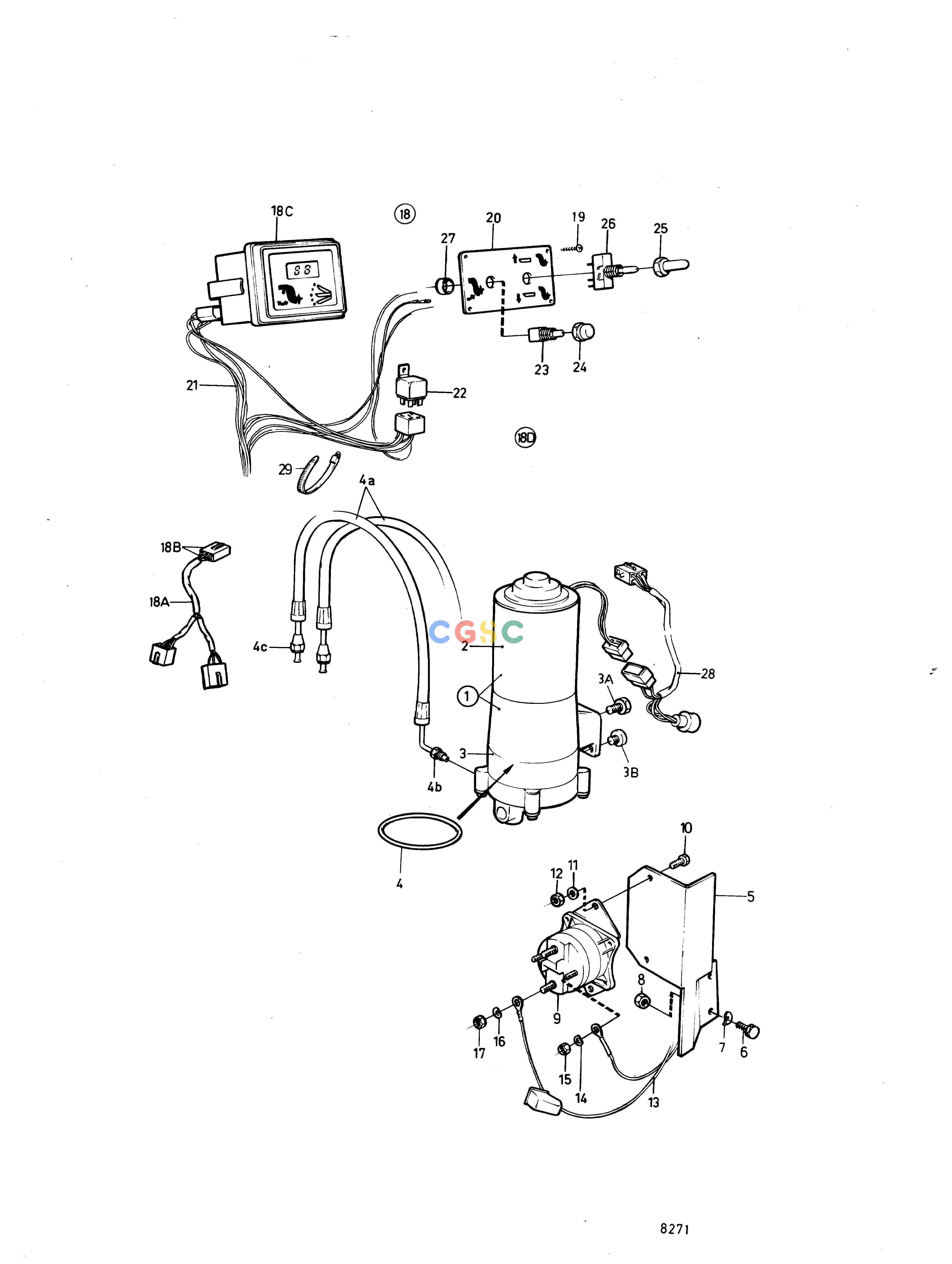

沃尔沃零件查询MD40A; TMD40A; TMD40B; TMD40C; AQD40A; TAMD40A; TAMD40B; AD40B; AQAD40A; AQAD40BTransmissionsHydraulic Pump, Trim Instrument and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
193 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
852928
|
[1] |
Hydraulic pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 3A. |
940148
|
[1] |
Hexagon screw
|
|
| 3B. |
853215
|
[2] |
Plug
|
|
| 4. |
853085
|
[1] |
Sealing ring
|
|
| 4A. |
852839
|
[2] |
Hose
|
|
| 4B. |
87698
|
[2] |
Fitting screw
|
|
| 4C. |
954320
|
[2] |
Fitting nut
|
|
| 5. |
853020
|
[1] |
Bracket
|
|
| 6. |
955296
|
[3] |
Hexagon screw
|
|
| 7. |
941907
|
[3] |
Spring washer
|
|
| 8. |
955782
|
[3] |
Hexagon nut
|
|
| 9. |
852565
|
[2] |
Relay
|
|
| 10. |
956094
|
[2] |
Cross recessed screw
|
|
| 11. |
949607
|
[2] |
Spring washer
|
|
| 12. |
955781
|
[2] |
Hexagon nut
|
|
| 13. |
|
|
|
|
| 14. |
941905
|
[4] |
Spring washer
|
|
| 15. |
955844
|
[4] |
Hexagon nut
|
|
| 16. |
941907
|
[4] |
Spring washer
|
|
| 17. |
955834
|
[4] |
Hexagon nut
|
|
| 18. |
853067
|
[1] |
Instrument panel
|
|
| 18A. |
|
|
|
|
| 18B. |
|
|
|
See group 3
|
| 18C. |
828731
|
[1] |
Trimmer
|
|
| 18D. |
853866
|
[1] |
Control panel
|
|
| 19. |
828647
|
[4] |
Screw
|
|
| 20. |
828739
|
[1] |
Control panel
|
Repl by 853866
|
| 21. |
|
|
|
See group 3
|
| 22. |
853545
|
[1] |
Relay kit
|
|
| 23. |
828584
|
[1] |
Toggle switch
|
|
| 24. |
828586
|
[1] |
Nut
|
|
| 25. |
828743
|
[1] |
Blind nut
|
|
| 26. |
828742
|
[1] |
Switch
|
|
| 27. |
828740
|
[2] |
Spacer washer
|
|
| 28. |
853032
|
[1] |
Cable block
|
|
| 29. |
949666
|
[1] |
Cable tie
|
|
