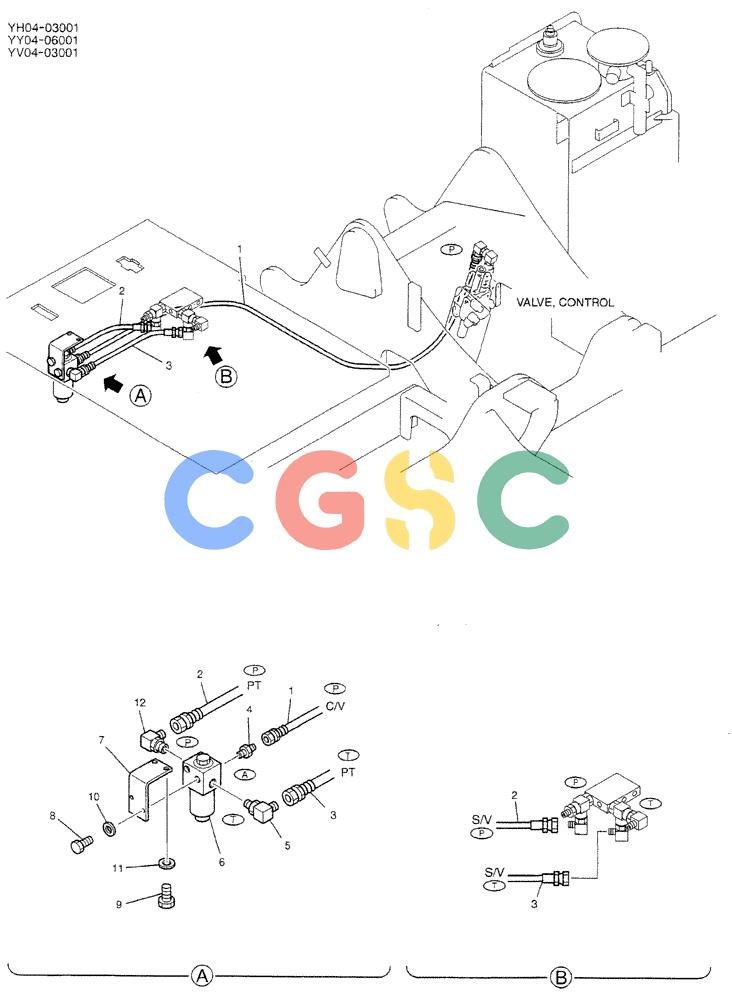

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (01-028) - CONTROL LINES, REMOTE (YY64H00056F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
431 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY64H00056F1 | [1] | CONTROL LINES,VALVE | |
| 1. | 2420R349D270 | [1] | HOSE | KOB2700mm Long (106-19/64 in) |
| 2. | 2420R349D050 | [1] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) |
| 3. | 2444R1120D060 | [1] | HOSE | KOB600mm Long (23-5/8 in) |
| 4. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 5. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 6. | YN35V00010F2 | [1] | VALVE | KOB |
| 7. | YV64H01023P1 | [1] | BRACKET | KOB |
| 8. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 9. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 10. | ZW16H06000 | [2] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| 11. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 12. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
