神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (01-031) - GUARD INSTAL (YY21C00010F3) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
711 次

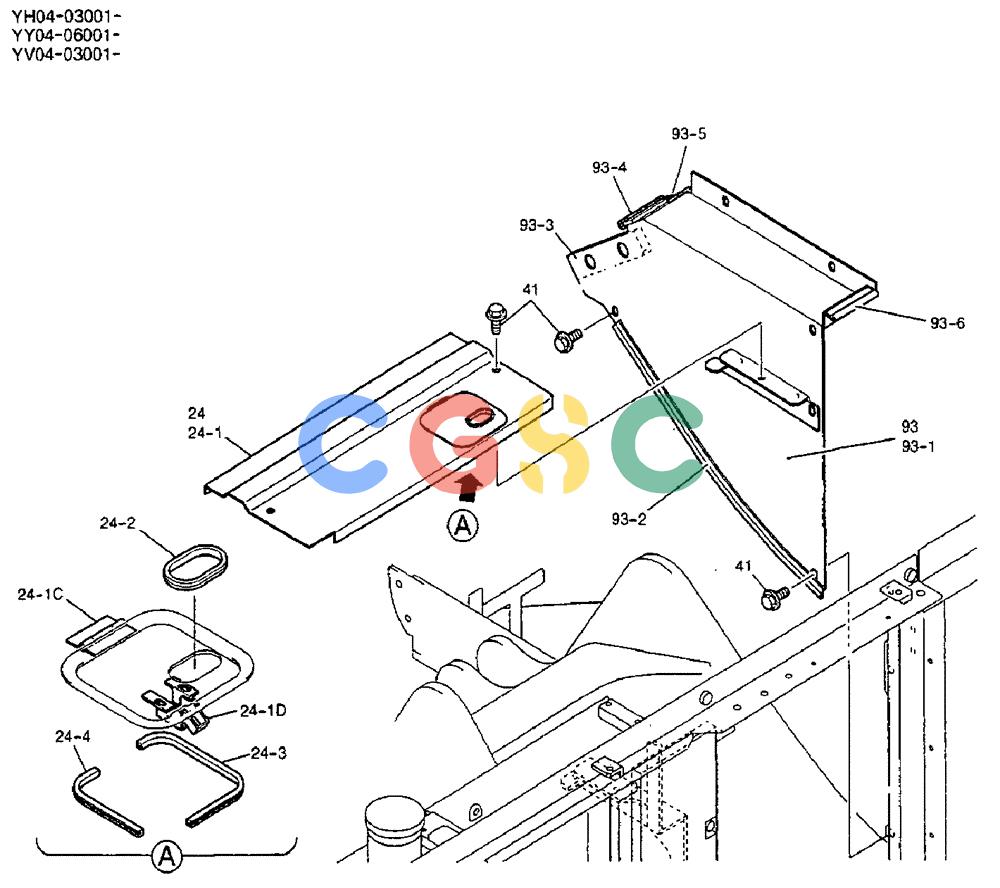

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY21C00010F3 | [1] | GUARD | KOB |
| 24. | YY21C01252F1 | [1] | GUARD ASSY. | KOB |
| 24-1. | YY21C01250P1 | [1] | GUARD | KOB |
| 24-1C. | YY21C01274P1 | [1] | HINGE | KOB |
| 24-1D. | PM21C01221P1 | [1] | LOCK | KOB |
| 24-2. | PM21C01255P2 | [1] | GROMMET | KOB |
| 24-3. | PN02C01004D7 | [1] | TRIM PANEL | KOB |
| 24-4. | PN02C01004D6 | [1] | SEAL PROTECTION | KOB Superseded by part number: S16539-16000 |
| 41. | ZM32C12025 | [8] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| 93. | YY21C01123F1 | [1] | GUARD ASSY. | KOB |
| 93-1. | YY21C01139P1 | [1] | GUARD | KOB |
| 93-2. | YT21C01163DA | [1] | WEATHERSEAL STRIP | KOB |
| 93-3. | YV21C01099P1 | [1] | RUBBER | KOB |
| 93-4. | YT21C01037D6 | [1] | TRIM PANEL | KOB120mm Long (4-23/32 in) |
| 93-5. | YT21C01159D6 | [1] | WEATHERSTRIP | KOB |
| 93-6. | LE21C01070DQ | [1] | WEATHERSEAL STRIP | KOB |
