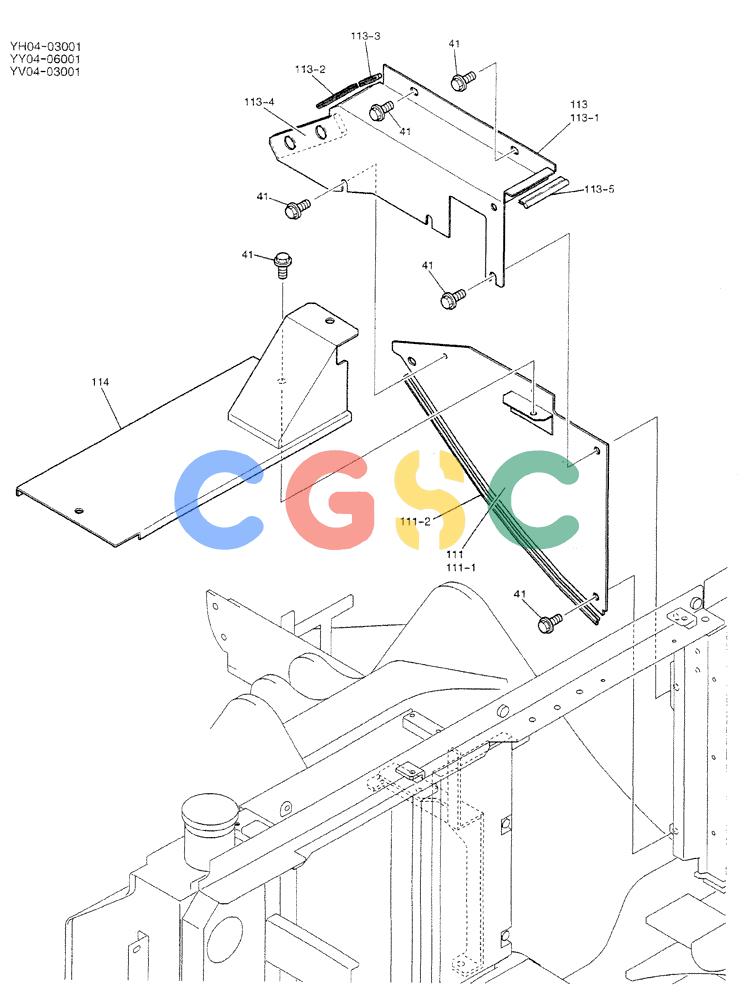

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (01-032) - GUARD INSTAL (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
295 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY21C00010F4 | [1] | GUARD INSTALL | |
| 41. | ZM32C12025 | [11] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| 111. | YY21C01209F1 | [1] | COVER ASSY | KOB |
| 111-1. | YY21C01208P1 | [1] | COVER | KOB |
| 111-2. | YA21C01036D3 | [1] | EXTRUSION | HIT |
| 113. | YY21C01207F1 | [1] | GUARD | KOBCOVER ASSY |
| 113-1. | YY21C01204P1 | [1] | GUARD | KOB |
| 113-2. | YJ21C01146D1 | [1] | TRIM PANEL | KOB105mm Long (4-1/8 in) |
| 113-3. | YT21C01159D6 | [1] | WEATHERSTRIP | KOB |
| 113-4. | YV21C01099P1 | [1] | RUBBER | KOB |
| 113-5. | LE21C01070DQ | [1] | WEATHERSEAL STRIP | KOB |
| 114. | YY21C01211P1 | [1] | GUARD | KOB |
