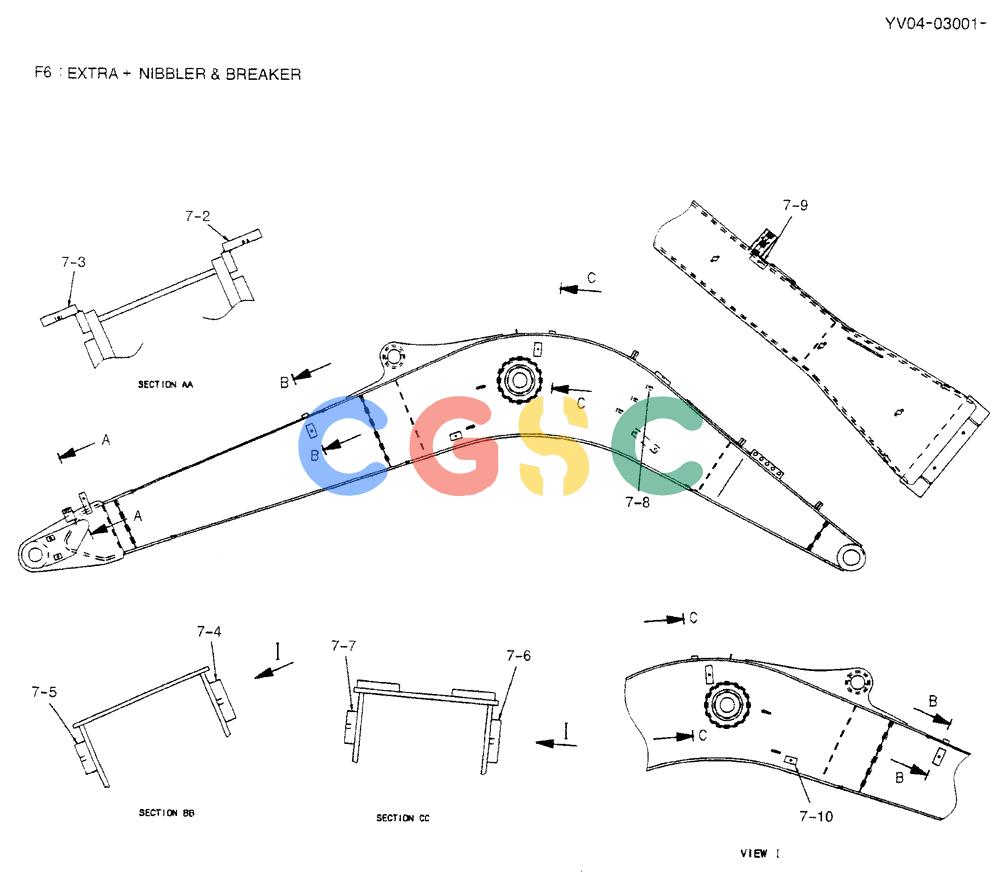

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-002[02]) - BOOM HOE, 4.26M (EXTRA, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
735 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV02B00046F4 | [1] | BOOM ASSY, HOE 4.26M (EXTRA) | |
| . . | YV02B00046F6 | [1] | BOOM ASSY, HOE 4.26M (EXTRA + NIBBLER & BREAKER) | |
| 2. | YX05B01026P1 | [2] | BUSHING | KOB Superseded by part number: |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONBOOM, HOE (F4 ONLY) |
| 5-2. | YT02B01012P1 | [2] | BRACKET | KOB |
| 5-3. | YV02B01006P1 | [1] | BLOCK | KOB |
| 5-4. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONBOOM, HOE (F6 ONLY) |
| 7-2. | YY02B01095P1 | [1] | BRACKET | KOB |
| 7-3. | YW42H01039P1 | [1] | BRACKET | KOB |
| 7-4. | 2416T14732 | [1] | BLOCK | KOB |
| 7-5. | 2416T10789D2 | [1] | BLOCK | KOBTAPPED |
| 7-6. | 2416T14115 | [1] | BLOCK | KOB |
| 7-7. | 2416T9804D4 | [1] | BLOCK | KOBTapped -- 70x38x22mm Superseded by part number: YN02F01333P1 |
| 7-8. | YV02B01006P1 | [1] | BLOCK | KOB |
| 7-9. | YY02B01094P1 | [1] | BLOCK | KOB |
| 7-10. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
