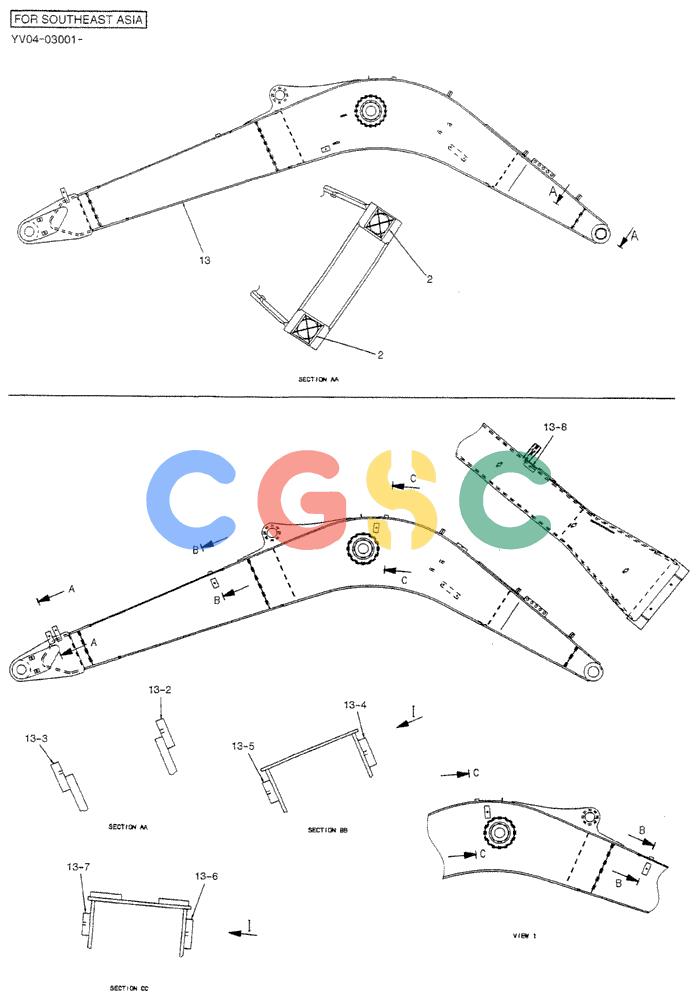

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-003) - BOOM HOE, 4.26M (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
482 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV02B00046FC | [1] | BOOM ASSY, HOE 4.26M | |
| 2. | YX05B01026P1 | [2] | BUSHING | KOB Superseded by part number: |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONBOOM, HOE |
| 13-2. | YV02B01012P1 | [1] | BLOCK, TAPPED | |
| 13-3. | YV02B01013P1 | [1] | BLOCK | KOBTAPPED |
| 13-4. | 2416T6432D2 | [1] | BLOCK | KOB |
| 13-5. | 2416T10789D2 | [1] | BLOCK | KOBTAPPED |
| 13-6. | 2416T13009 | [1] | BLOCK | KOB |
| 13-7. | 2416T9804D4 | [1] | BLOCK | KOBTapped -- 70x38x22mm Superseded by part number: YN02F01333P1 |
| 13-8. | 2416T13325D1 | [1] | LINK BLOCK | KOB |
