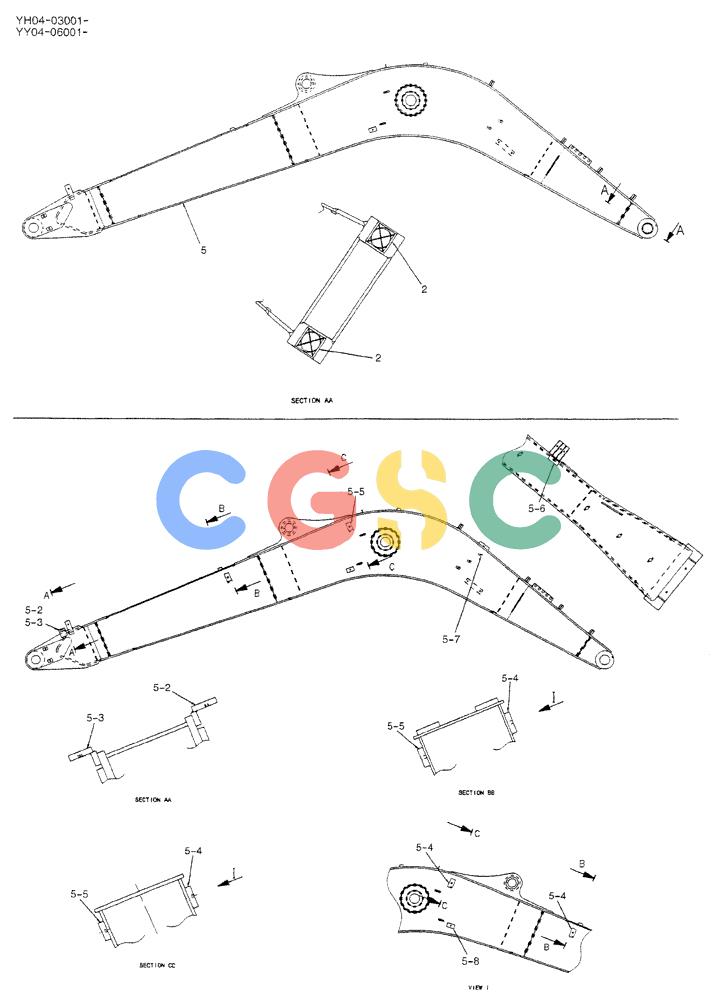

神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-006) - BOOM HOE, 4.6M (EXTRA, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY02B00157F4 | [1] | BOOM | KOBASSY, HOE 4.6M |
| 2. | YX05B01026P1 | [2] | BUSHING | KOB Superseded by part number: |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONBOOM, HOE |
| 5-2. | YY02B01095P1 | [1] | BRACKET | KOB |
| 5-3. | YW42H01039P1 | [1] | BRACKET | KOB |
| 5-4. | 2416T14115 | [2] | BLOCK | KOB |
| 5-5. | YW42H01012P1 | [2] | BLOCK | KOB |
| 5-6. | YY02B01094P1 | [1] | BLOCK | KOB |
| 5-7. | YV02B01006P1 | [1] | BLOCK | KOB |
| 5-8. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
