神钢零件查询(BREAKER) - ATTACHMENT (N&B) - SK115SR & SK135SR - ASN YV04, YY04, YH04-03001 (9/04-) (02-008[02]) - BOOM HOE, 4.6M (BOOM & ARM SAFETY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
758 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY02B00157F5 | [1] | BOOM ASSY, HOE 4.6M (NIBBLER & BREAKER) | |
| . . | YY02B00157F6 | [1] | BOOM ASSY, HOE 4.6M (EXTRA + NIBBLER & BREAKER) | |
| 2. | YX05B01026P1 | [2] | BUSHING | KOB Superseded by part number: |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONBOOM, HOE (F5 ONLY) |
| 6-2. | 2416T14732 | [1] | BLOCK | KOB |
| 6-3. | YW42H01013P1 | [1] | BLOCK | KOB |
| 6-4. | 2416T14115 | [2] | BLOCK | KOB |
| 6-5. | YW42H01012P1 | [2] | BLOCK | KOB |
| 6-6. | YY02B01094P1 | [1] | BLOCK | KOB |
| 6-7. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
| 6-9. | 2432R245D1 | [2] | CLIP | KOB |
| 6-10. | YT02B01059P1 | [1] | BLOCK | KOB |
| 6-11. | 2416T21120D1 | [1] | BLOCK | KOB |

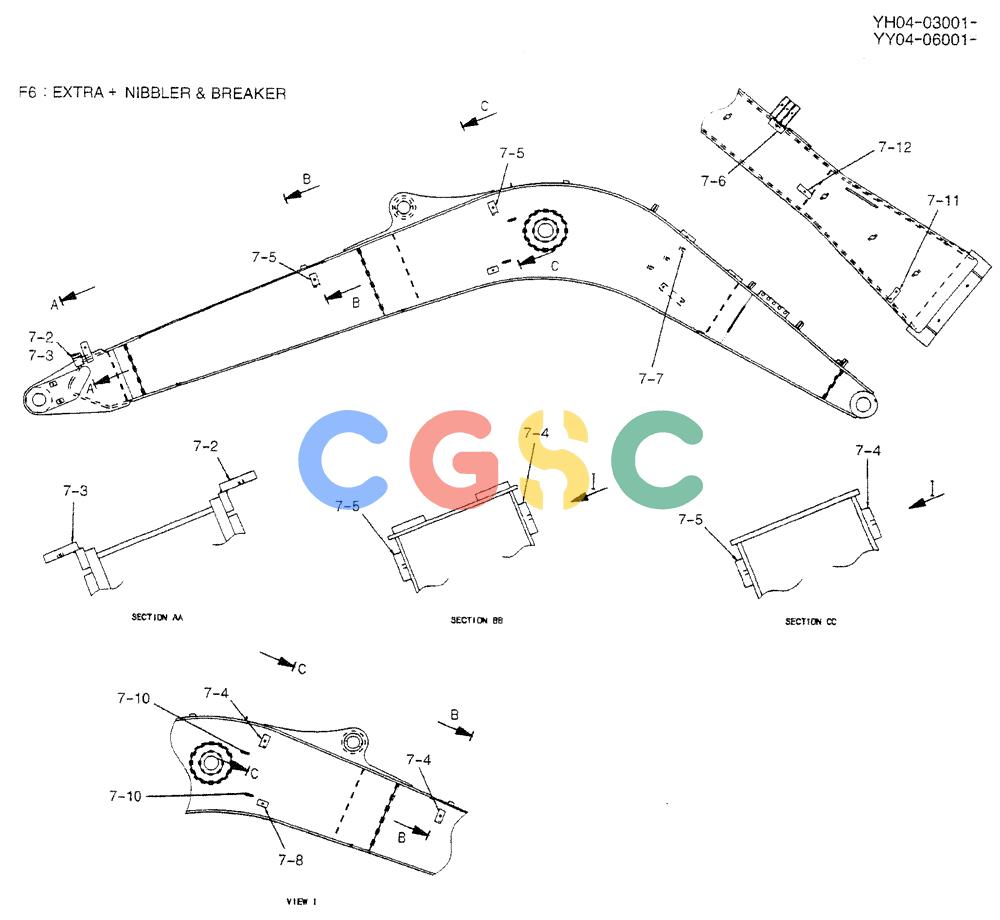

| 7. | NSS | [1] | NOT SOLD SEPARAT | CONBOOM, HOE (F6 ONLY) |
| 7-2. | YY02B01095P1 | [1] | BRACKET | KOB |
| 7-3. | YW42H01039P1 | [1] | BRACKET | KOB |
| 7-4. | 2416T14115 | [2] | BLOCK | KOB |
| 7-5. | YW42H01012P1 | [2] | BLOCK | KOB |
| 7-6. | YY02B01094P1 | [1] | BLOCK | KOB |
| 7-7. | YV02B01006P1 | [1] | BLOCK | KOB |
| 7-8. | 2416T9878 | [1] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOB |
| 7-10. | 2432R245D1 | [2] | CLIP | KOB |
| 7-11. | YT02B01059P1 | [1] | BLOCK | KOB |
| 7-12. | 2416T21120D1 | [1] | BLOCK | KOB |
